Handling Devices and End Effectors

Ingersoll Rand Material Handling devices and end effectors give operators confident control where load engagement matters most. Engineered around the application, they support accurate positioning, safer handling, and dependable performance across complex operations.

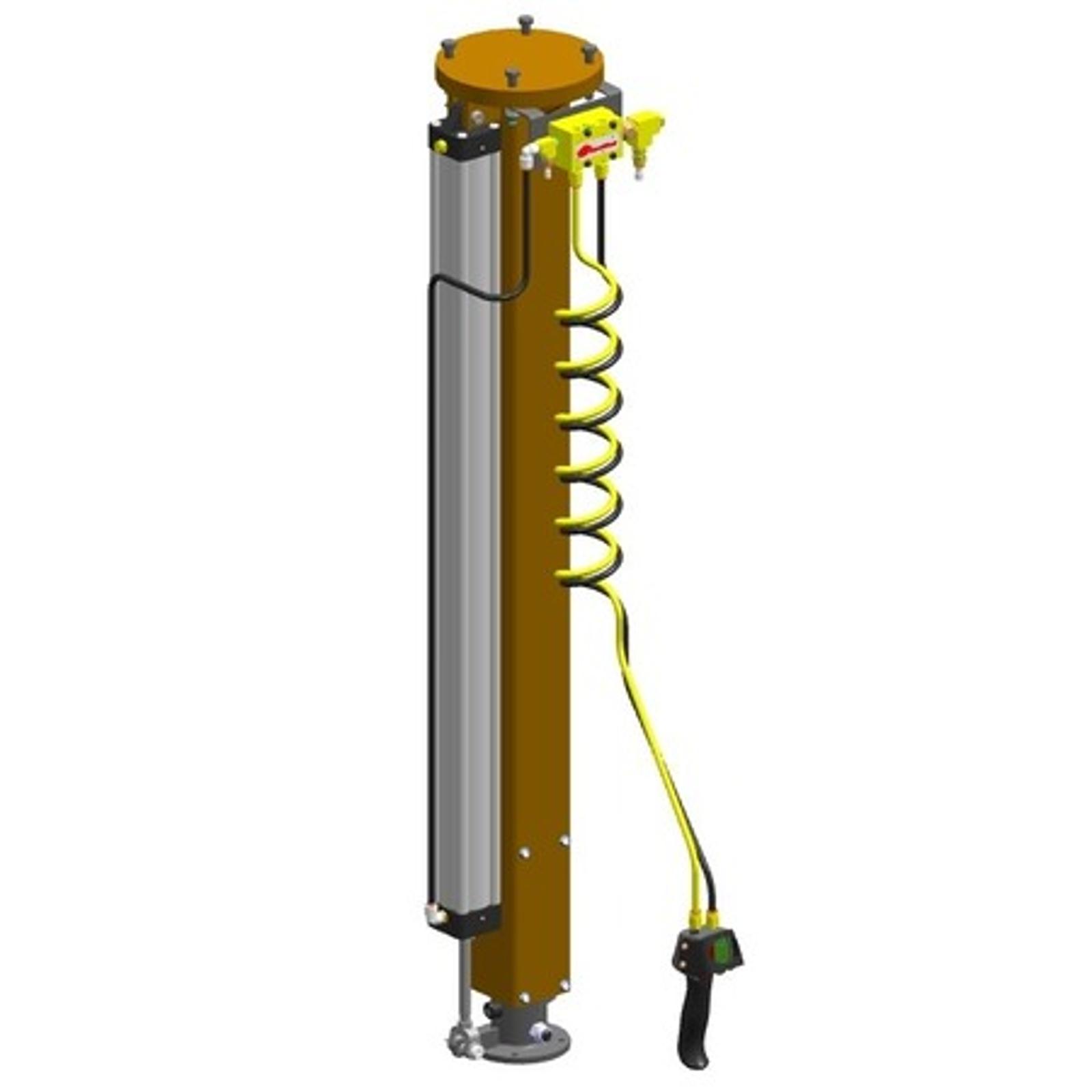

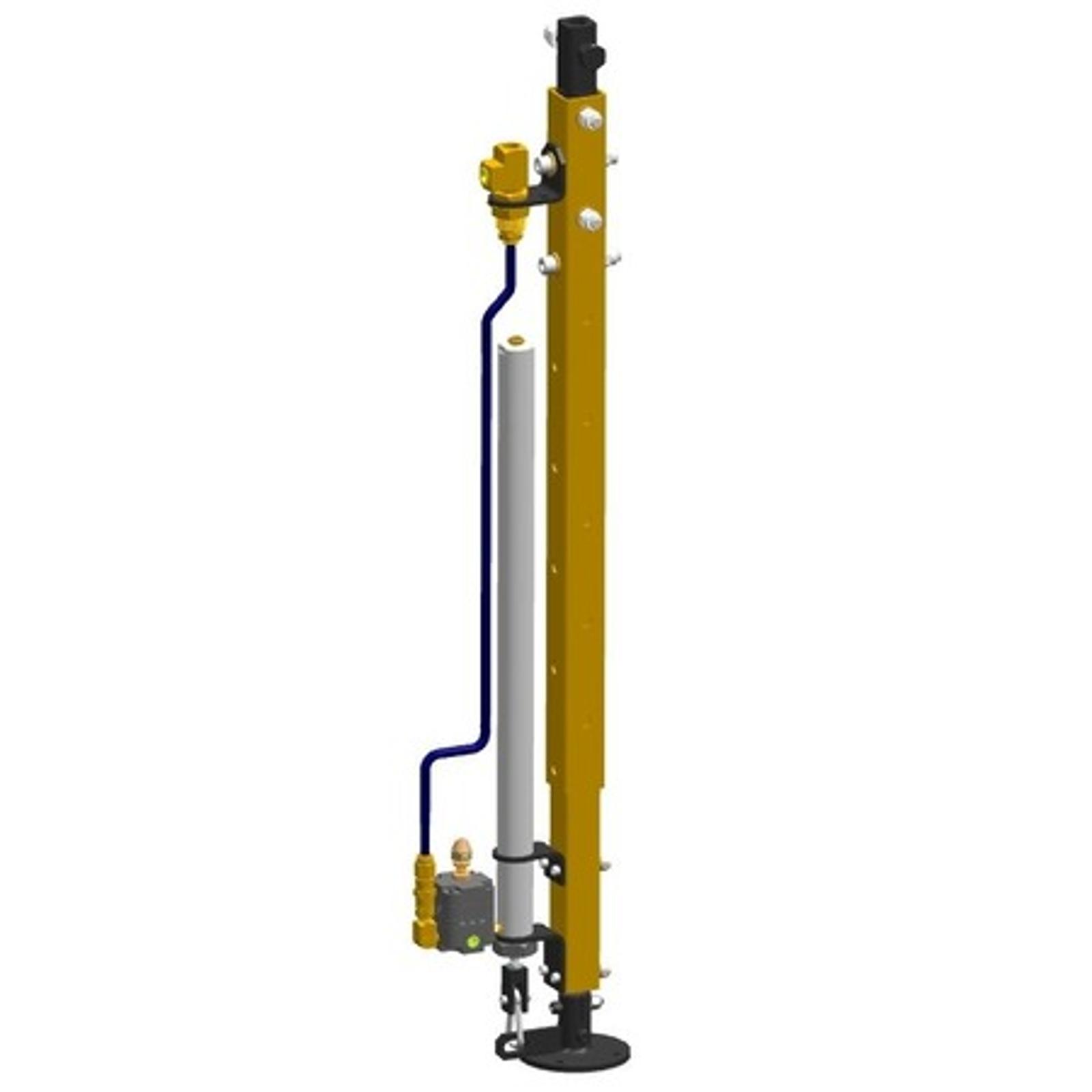

100 Nm Tube

100 Nm Torque Tubes are light capacity torque tubes that relieve the operator of weight and torque reaction up to 100 Nm for increased workplace productivity.

Learn more

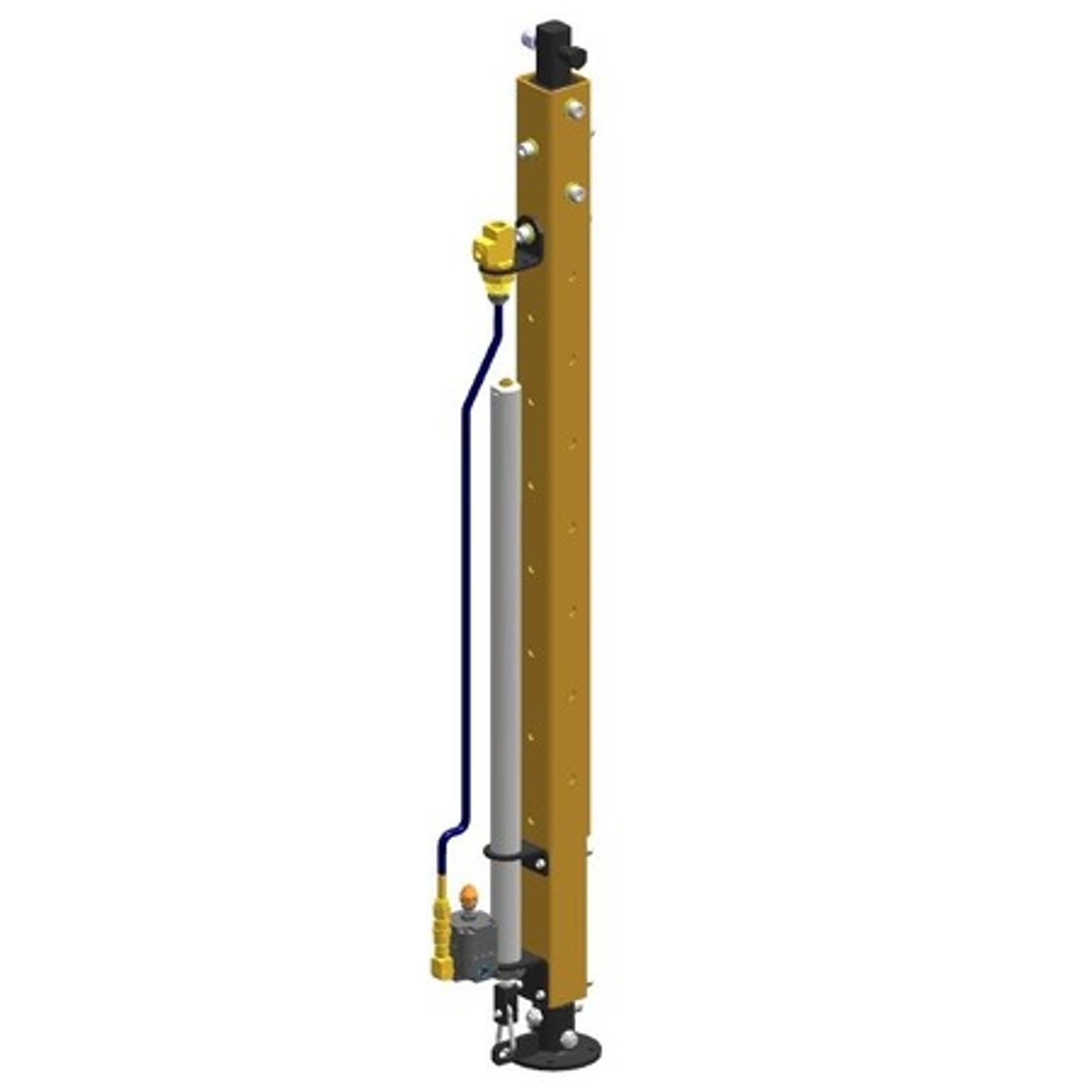

250 Nm Tube

250 Nm Torque Tubes relieve the operator of weight and torque reaction up to 250 Nm and has 24 in (610 mm) of vertical travel with a 60 lb (27 kg) capacity.

Learn more

500 Nm Tube

5000 Nm Torque Tubes relieve the operator of weight and torque reaction up to 500 Nm and has 36 in (914 mm) of vertical travel with a 100 lb (45 kg) capacity.

Learn more


Clamp

Clamp devices are ideal for handling a wide variety of items, typically with rigid sides that permit mechanical or pneumatic clamping.

Learn more

Hook/Trap

Hook or Trap devices typically tend to be straight transfer with no manipulation, apply no force to the product, and can be applied to a wide variety of shapes.

Learn more

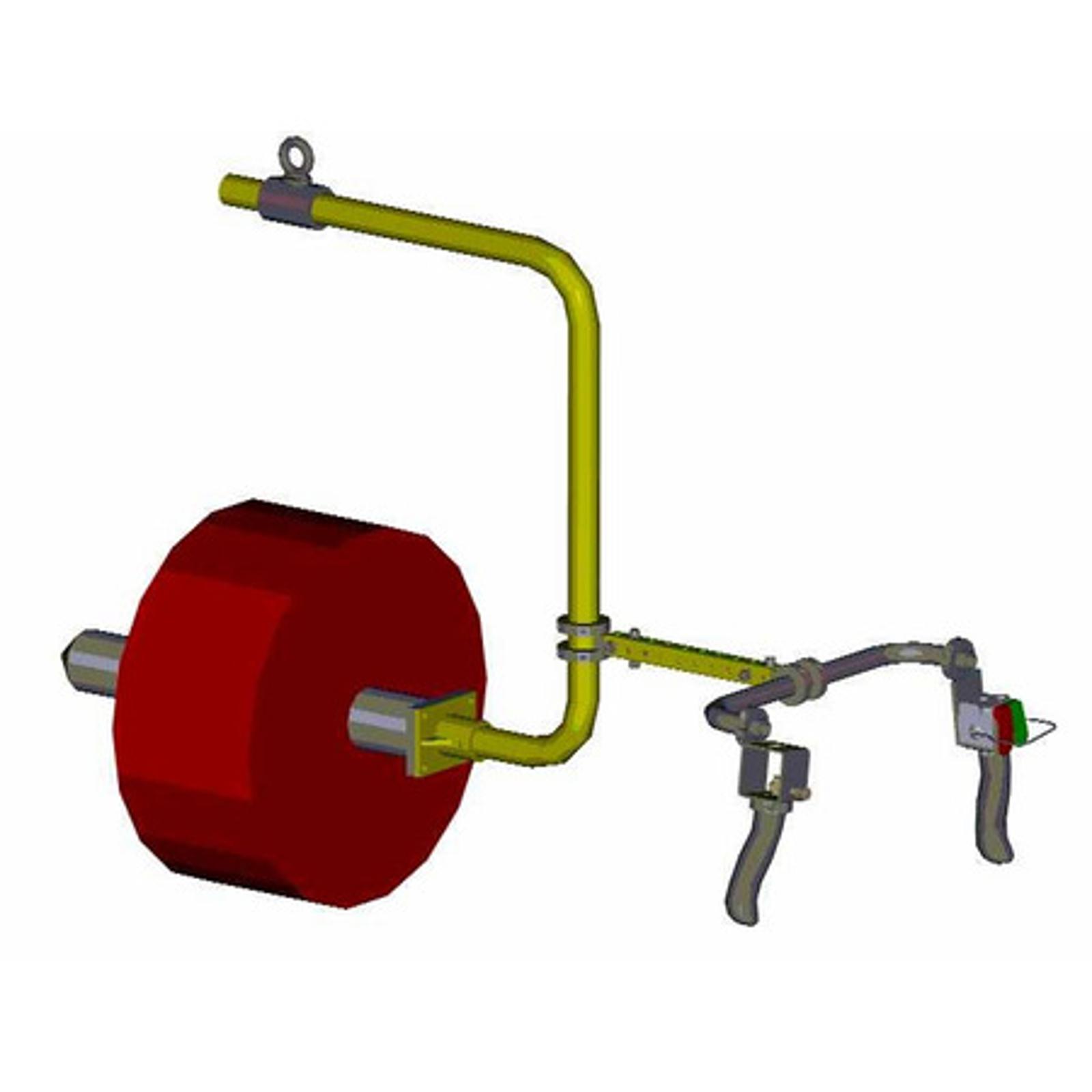

Probe

Designed to be inserted into and/or grab the inner diameter and bore of spherical/tubular items such as paper rolls, steel rolls, carpet rolls, and more.

Learn more

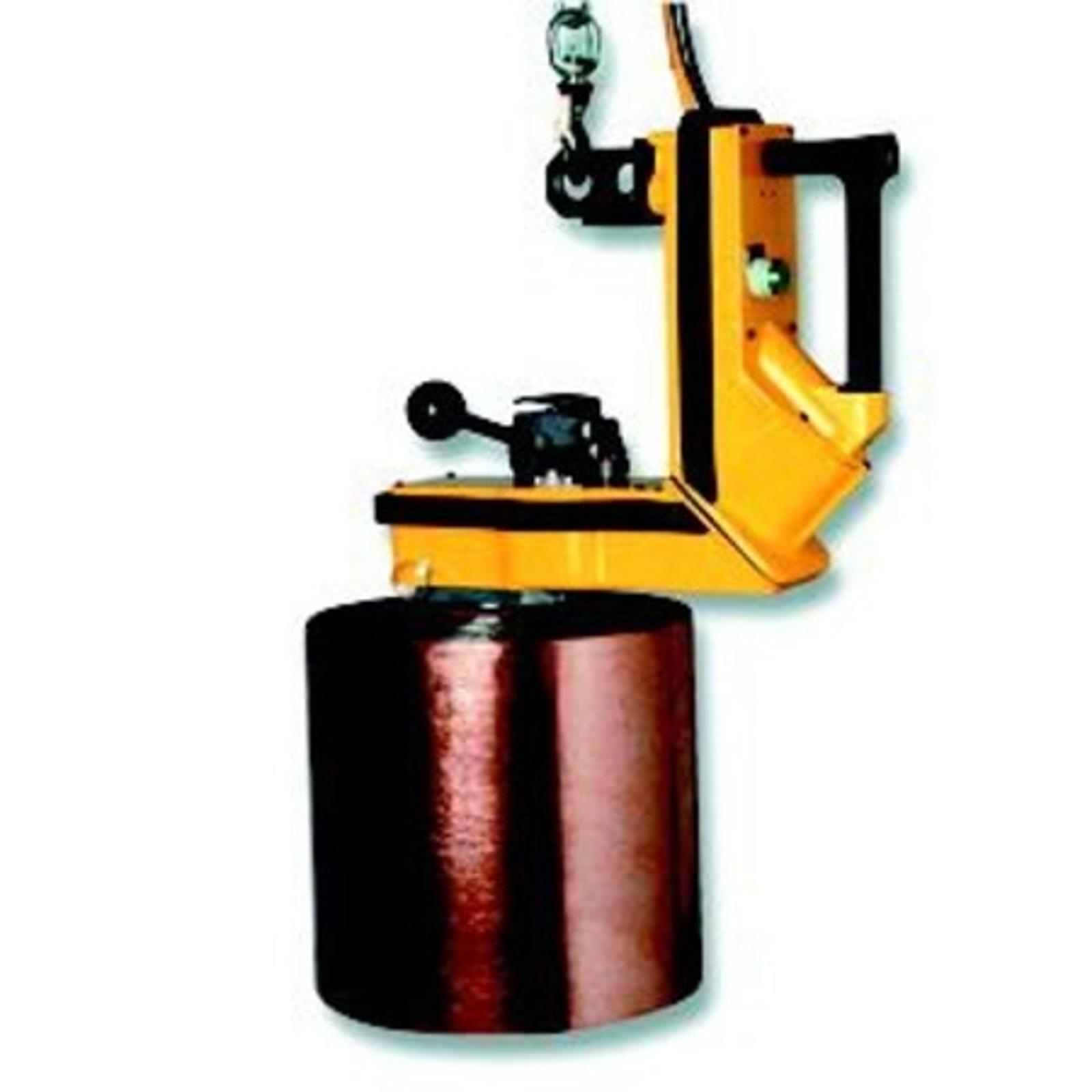

Rotary Action Handler

The Rotary Action Handlers perform virtually effortless horizontal-to-vertical product orientation (90 degrees) of loads up to 300 lb. (136 kg).

Learn more

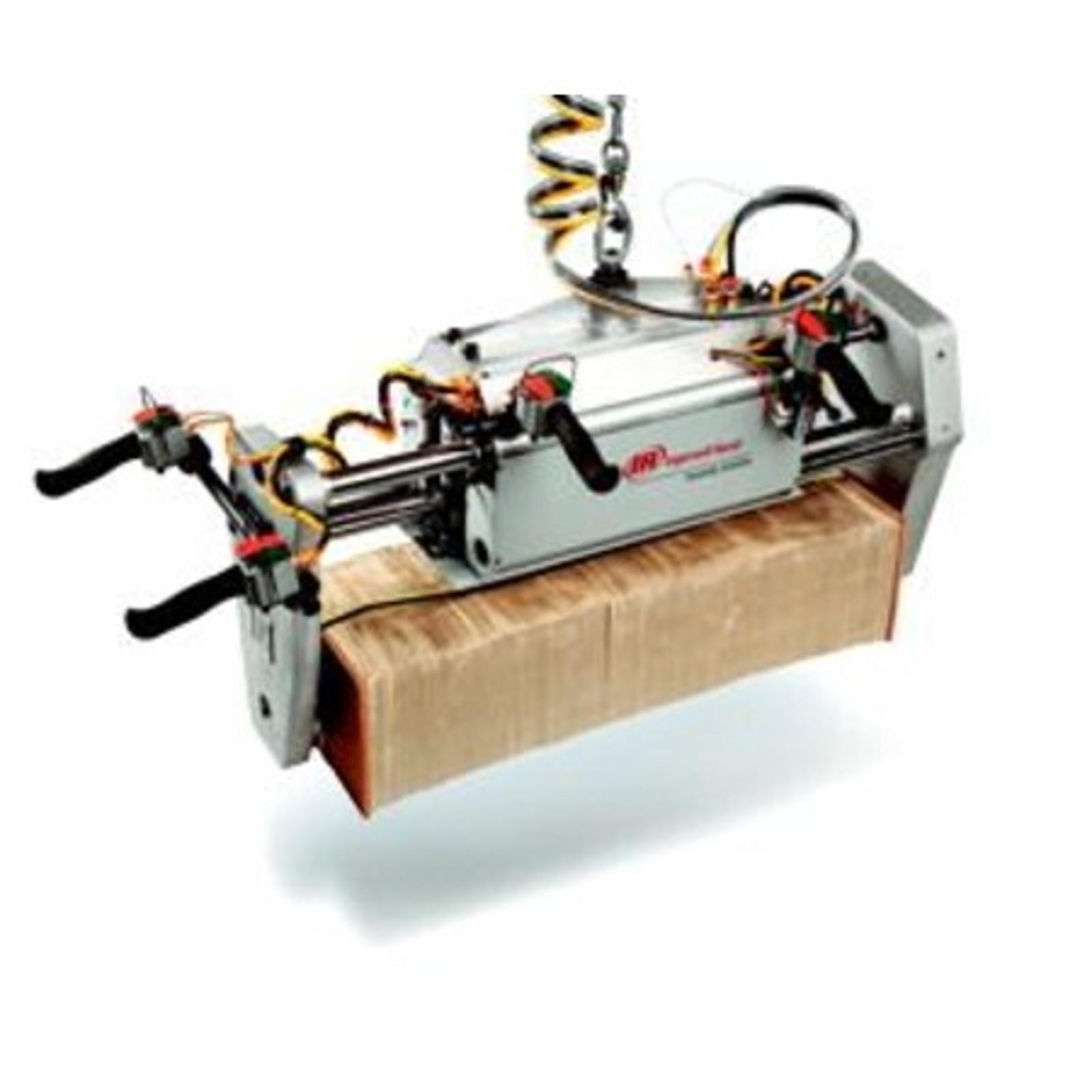

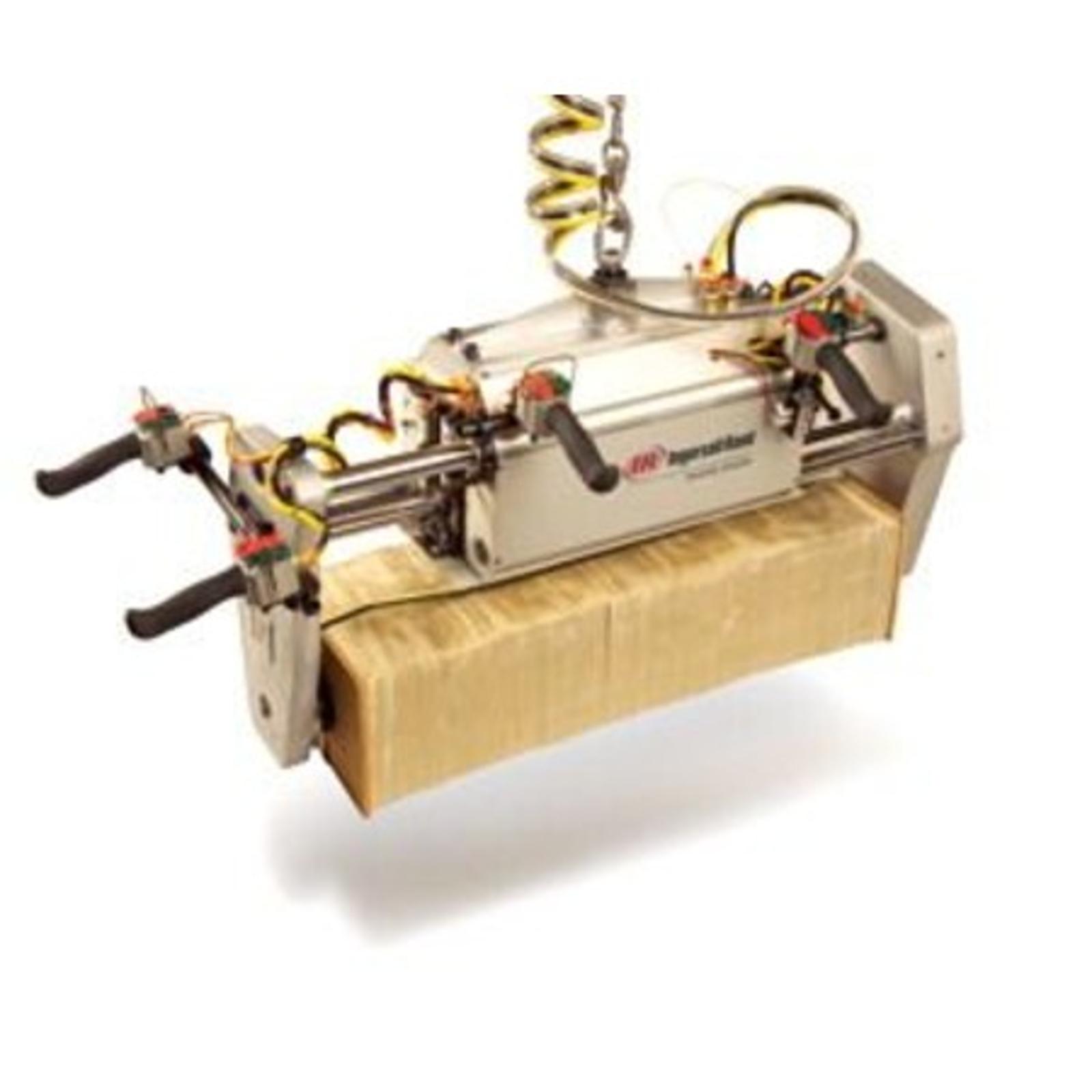

Signature Bundle Handler

The Signature Bundle Handler allows one person to easily move large bundles of catalogs or brochures that would otherwise be unmanageable.

Learn more

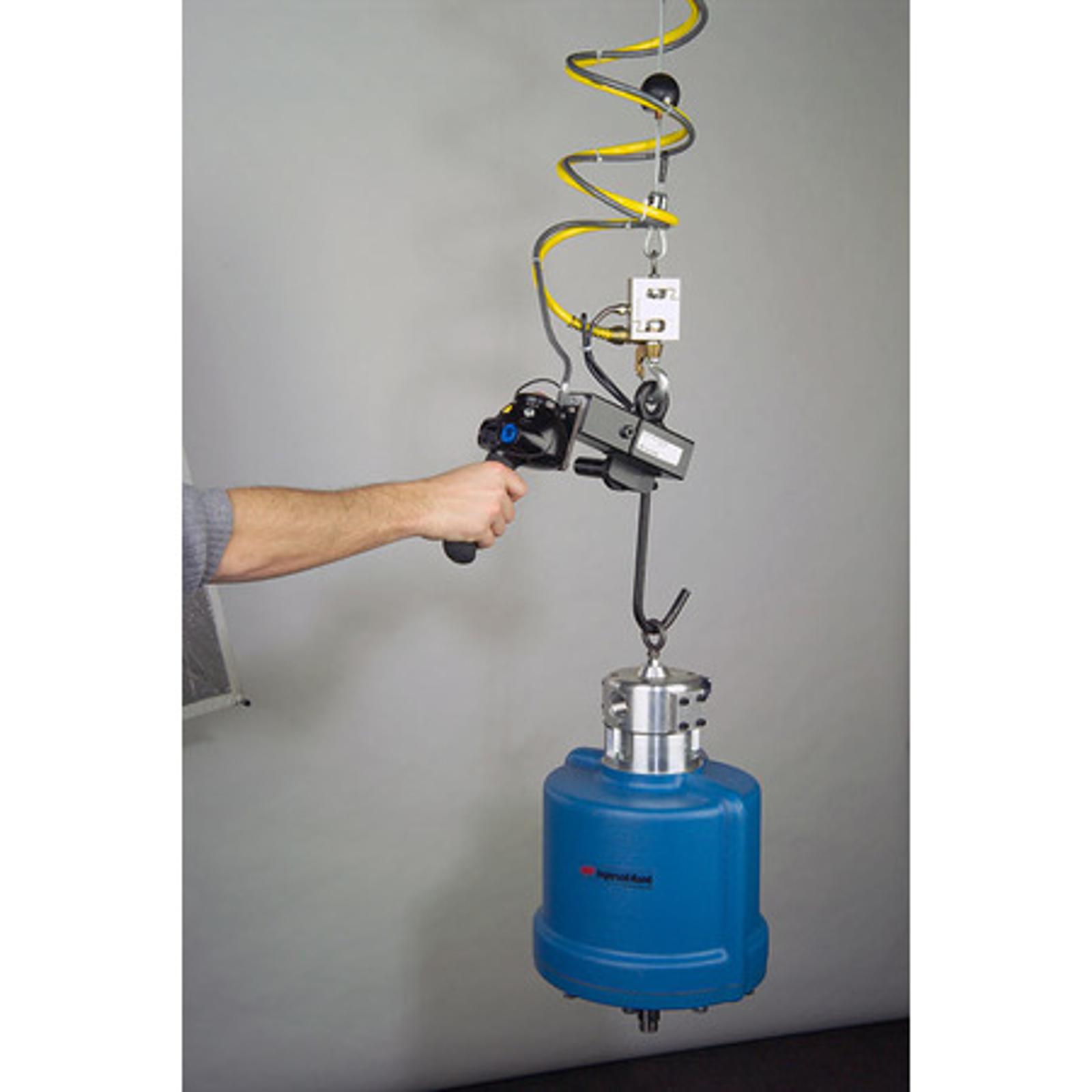

J-Hook

Designed for straight transfer with no manipulation, the standard Ingersoll Rand J-Hook is designed for integration with the pneumatic or InteLIFT balancer.

Learn more

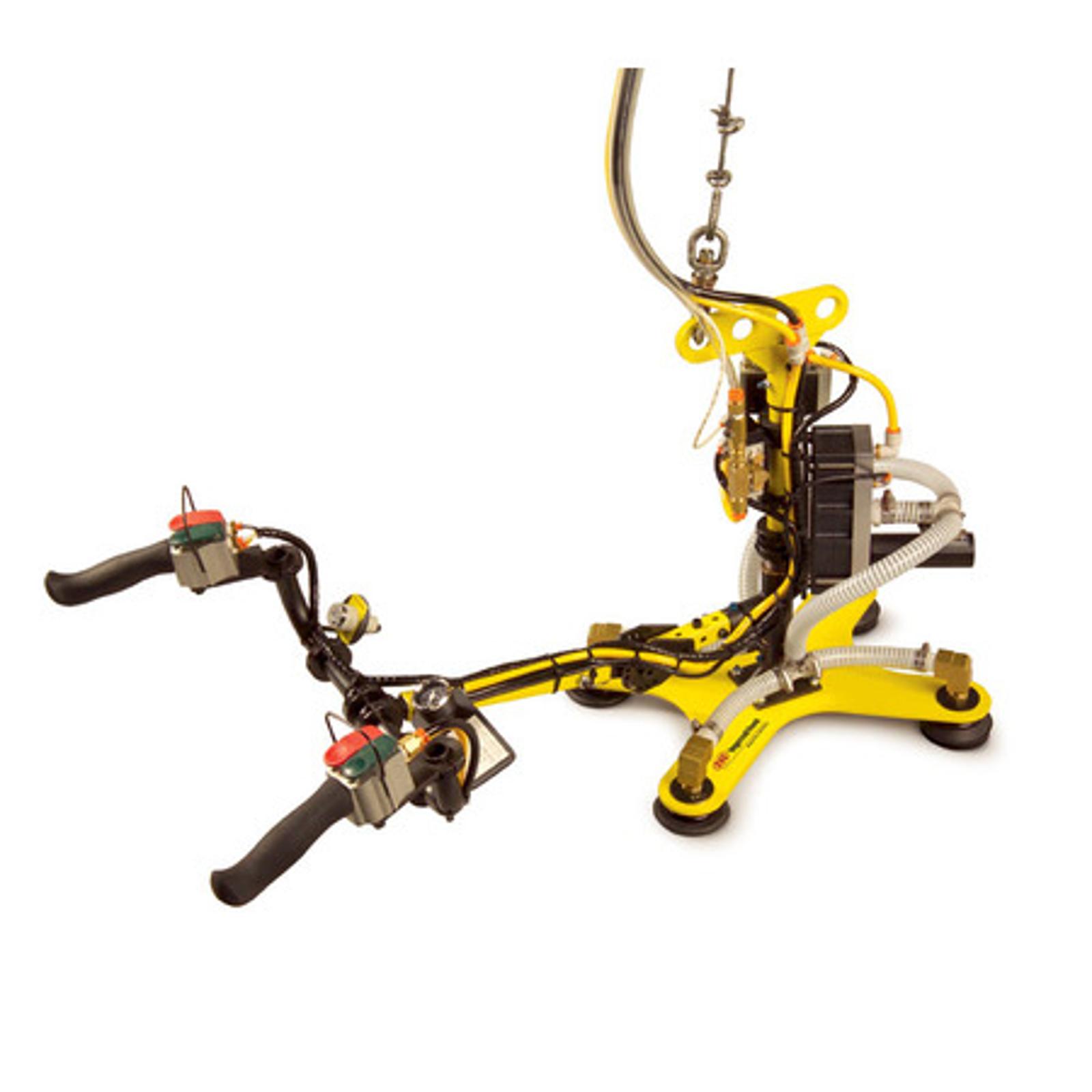

Vacuum

Venturi-based vacuum cup systems provide an ideal solution for handling and manipulating non- and low-porous items with basic shapes and flat surfaces.

Learn more

Warehouse Handling Device

The Warehouse Handler is designed to be integrated with the load sensing InteLIFT® to make handling awkwardly-shaped parts effortless.

Learn more

ZC2S Standard Clamp Lift Assists

ZC2S Standard Clamp Lift Assists are the right tool for when you need to handle boxes, containers, totes, trays, and a wide variety of other shaped cartons.

Learn more

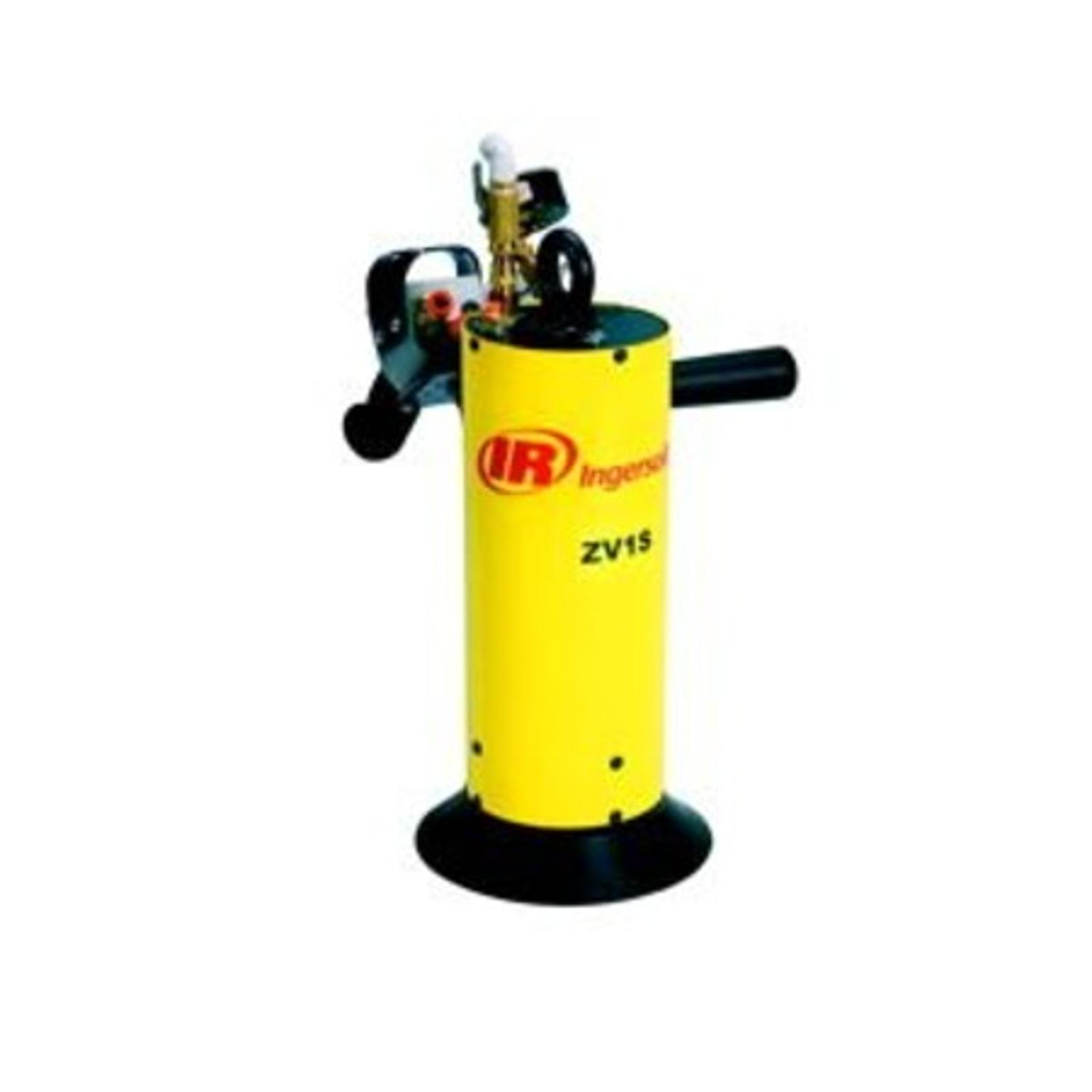

ZV1S Standard Vacuum Lift Assist

ZV1S 1-Cup Vacuum Handling Devices allow an operator to lift, orient, and place flat, non-porous parts weighing up to 100 lb. (45 kg) with minimal effort.

Learn more

ZV4S Standard Vacuum Lift Assist

ZV4S 4-Cup Vacuum Lift Assists allow an operator to lift, orient, and place flat, non-porous parts weighing up to 300 lb. (136 kg) with minimal effort.

Learn more
