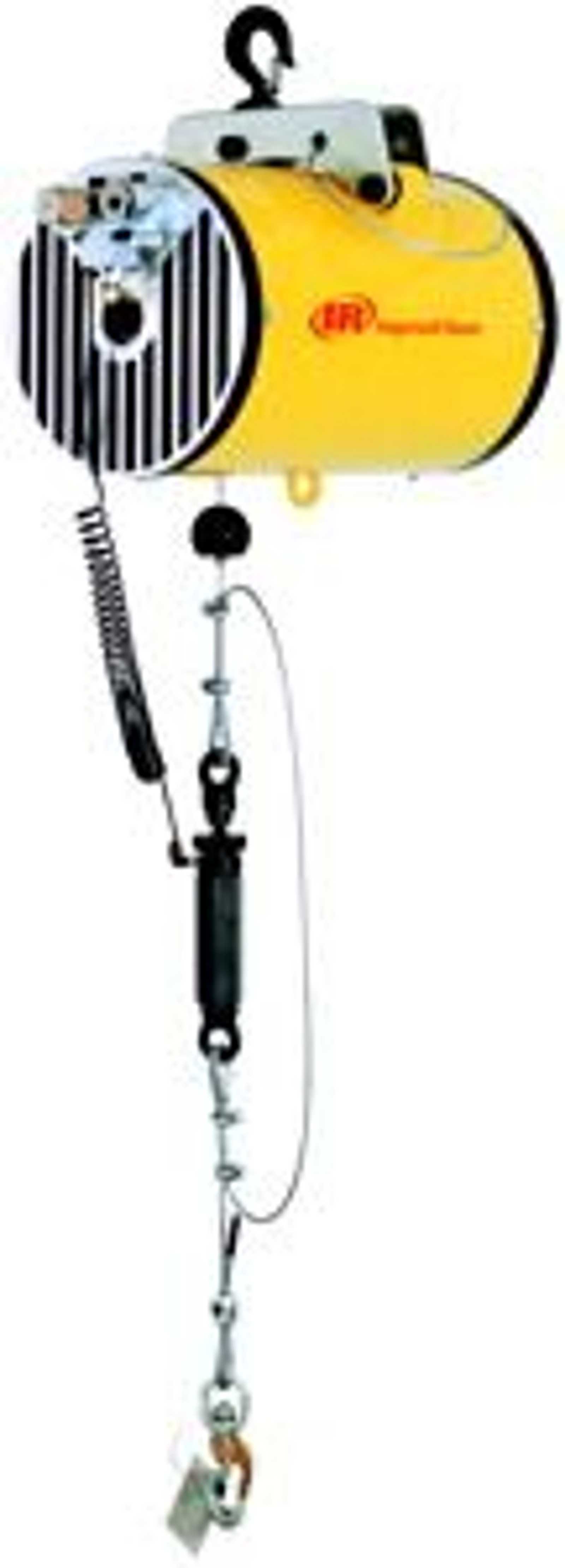

DURABILITY: Balancers feature all-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook.
RELIABILITY: Features include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation.
SAFETY
- Standard emergency cable retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake automatically stops the rapid upward cable travel.
- If the air supply is ever interrupted, the unit will maintain the load in the suspended position.
- The load being lifted can never exceed the unit’s maximum rated capacity at a given air pressure, providing intrinsic overload protection.
- The optional Z-stop eliminates the down-drift of suspended loads within 6 inches (152 mm) if air supply is shut down.
PRODUCTIVITY: Gain flexibility, with ultra-low air consumption, clean oil free operation, and cable travels of up to 120 inches depending on model.
- Suspension kits are available for virtually all enclosed track manufacturers, as well as I-beam, Patented/Hardened track, and Hook mounted configurations.

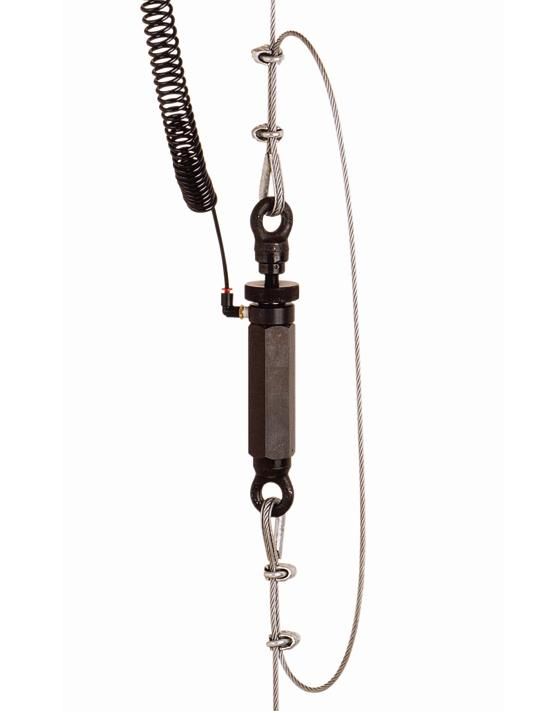

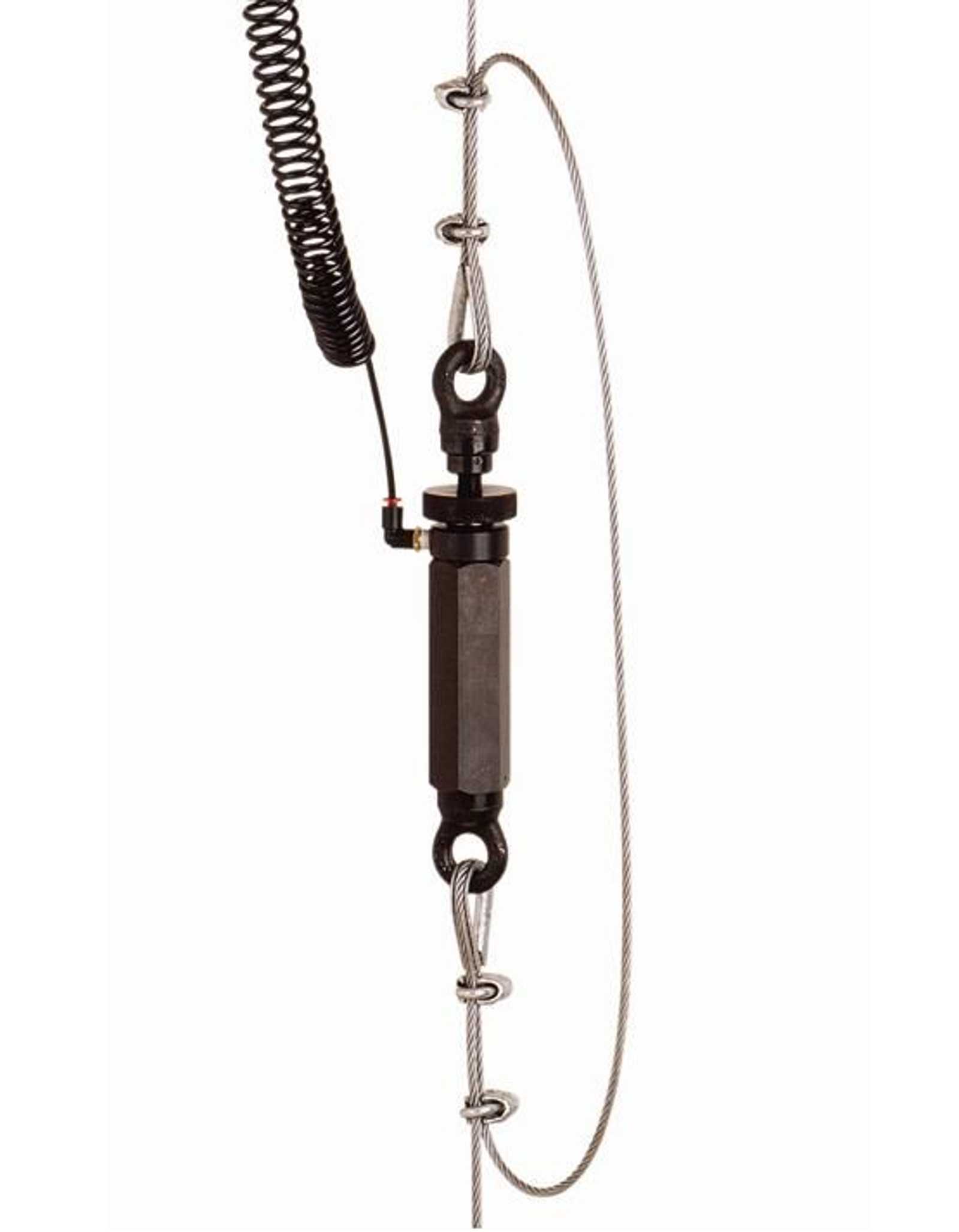

- Standard Z-Servo control (BA balancers over 200 lb., or 90.7 kg) amplifies the inputs and reduces the effort required to lift the load.
