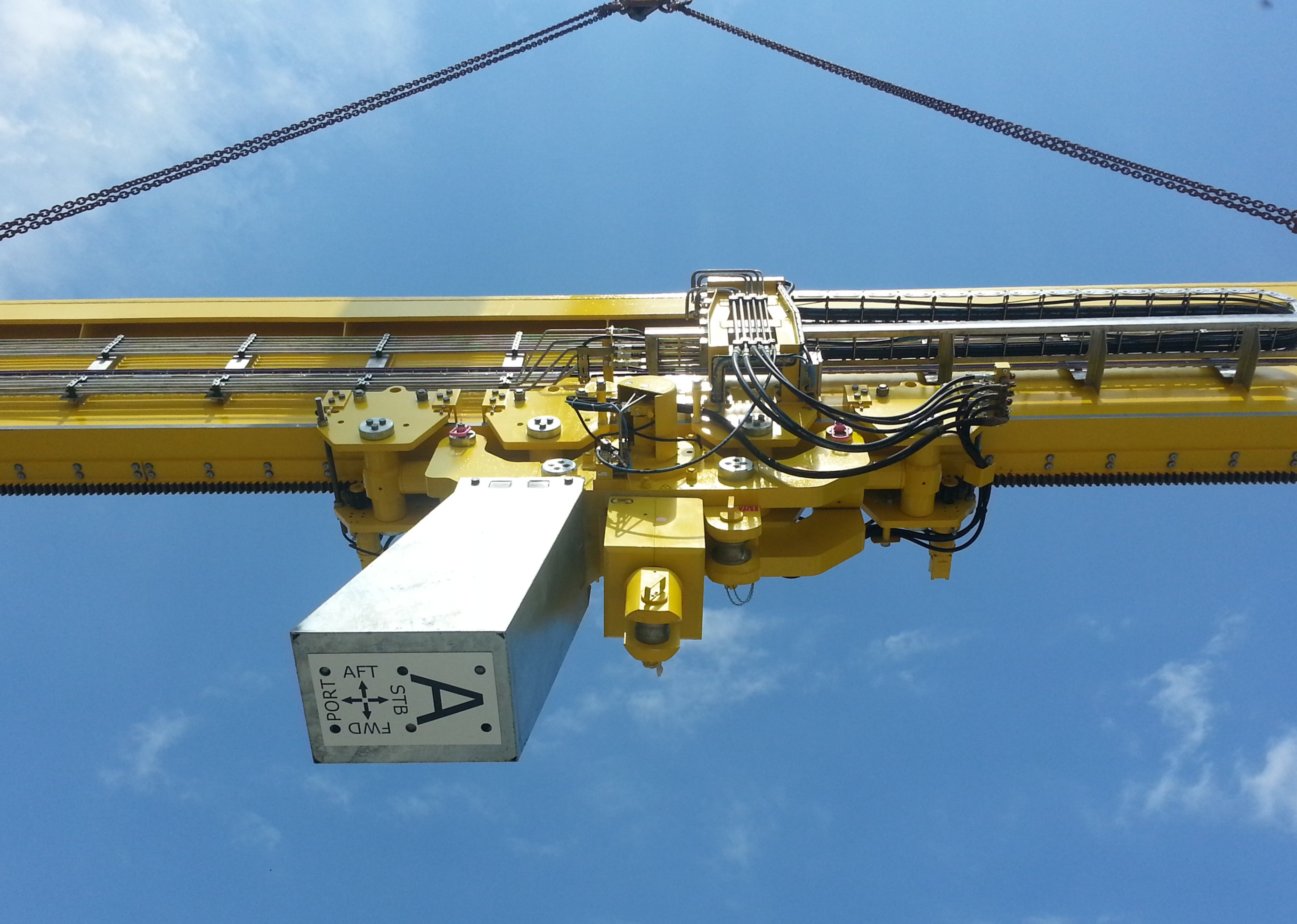

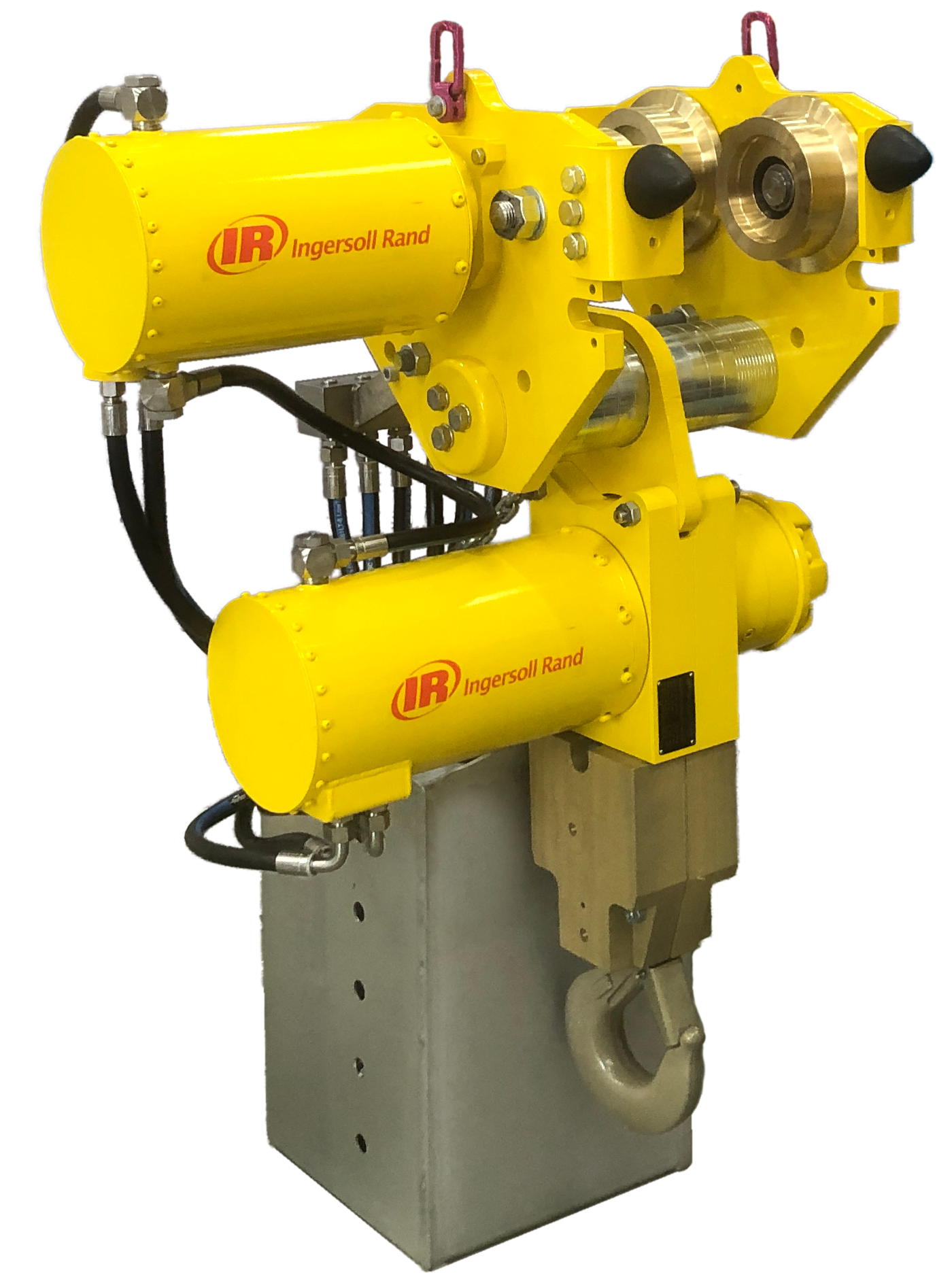

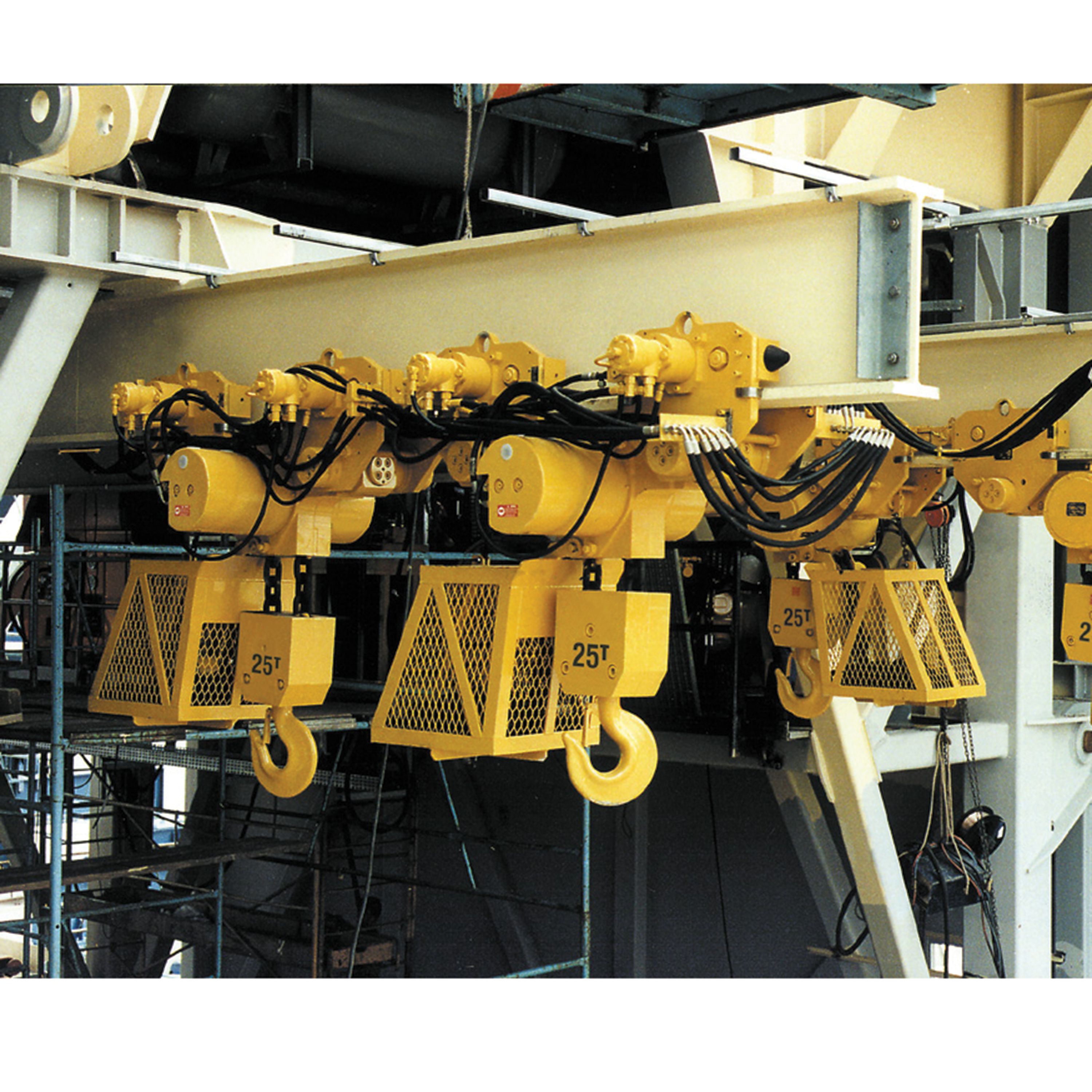

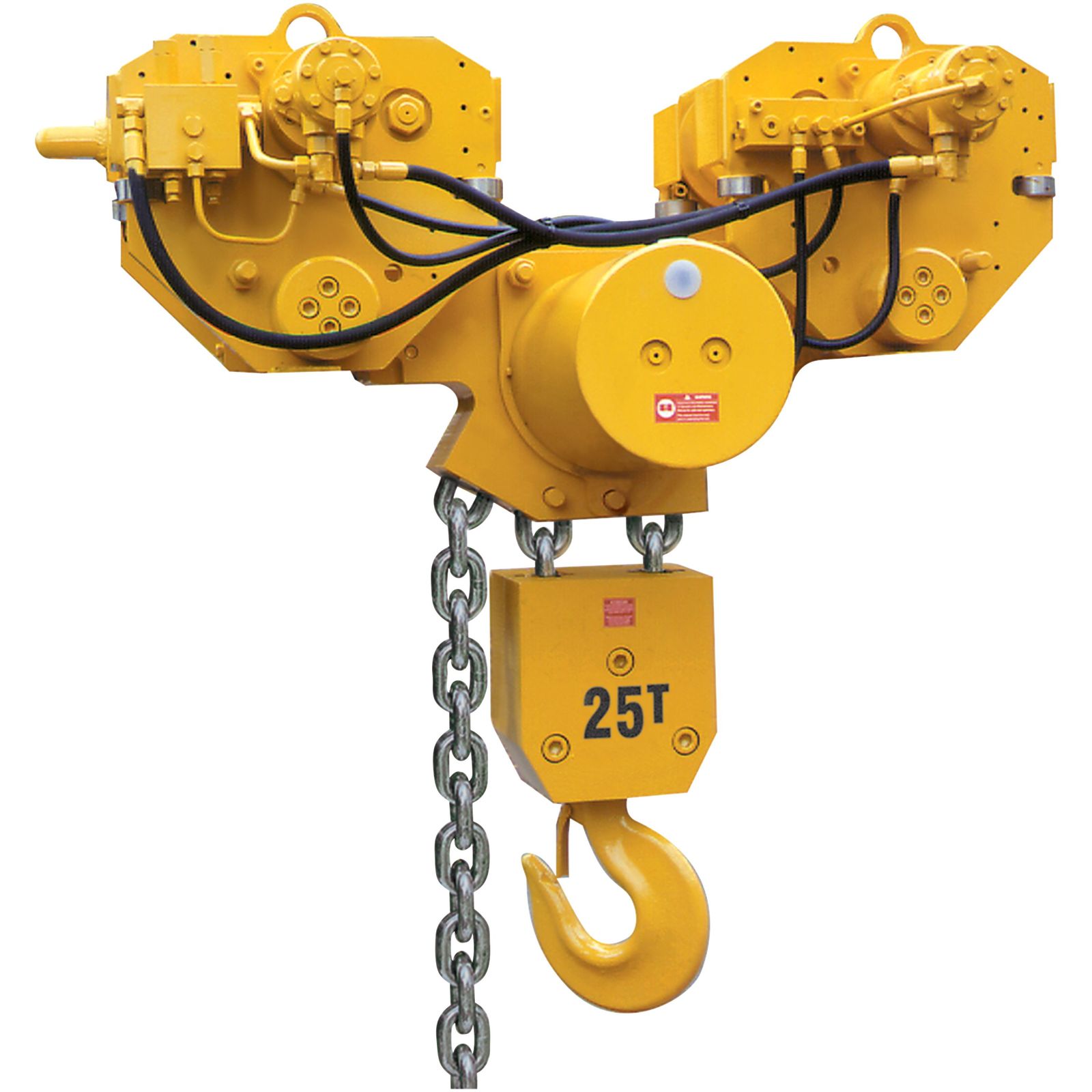

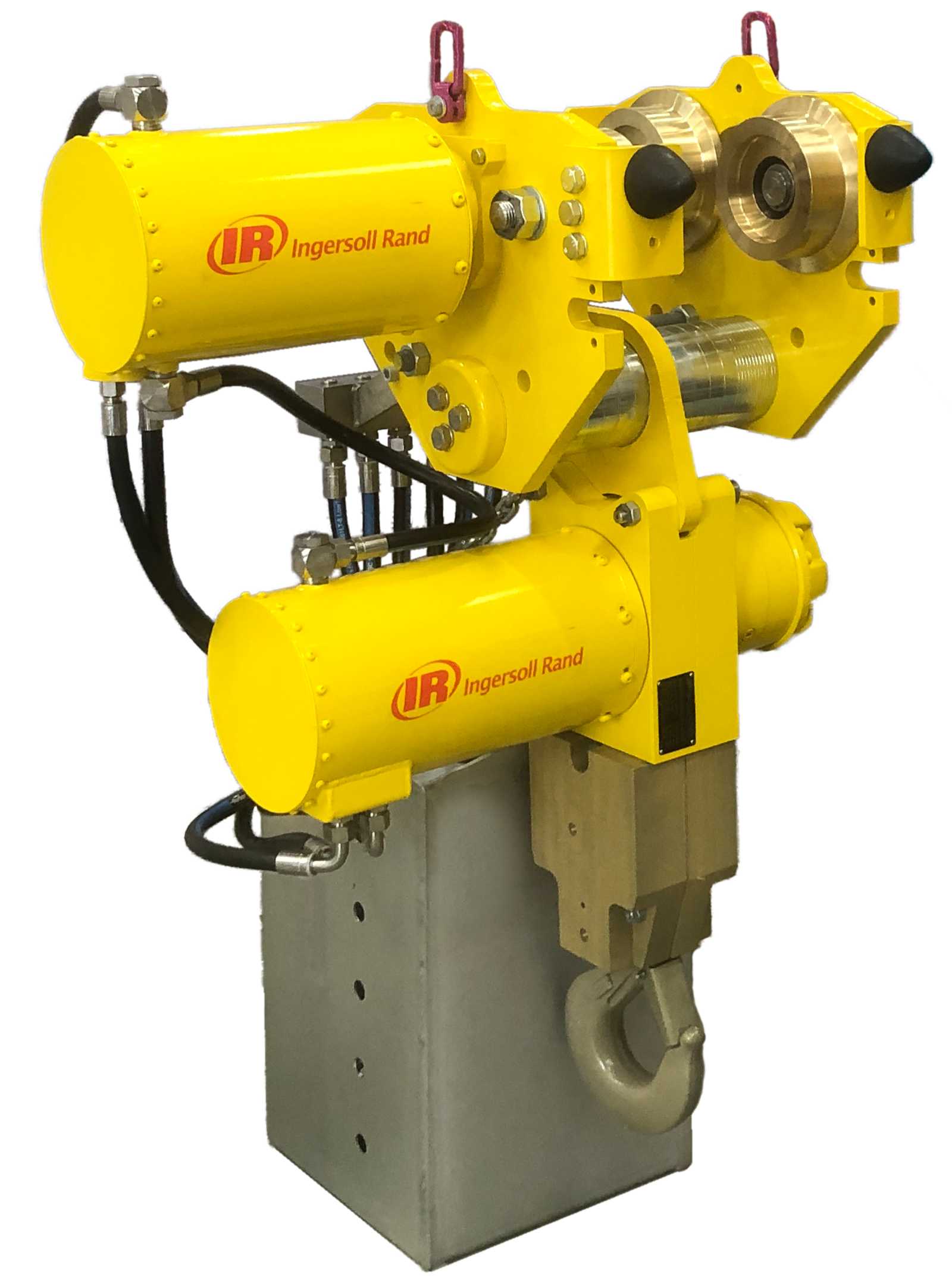

Liftchain Hydraulic BOP Handling Systems

Driven by reliable hydraulic gear motors, Ingersoll Rand’s Liftchain Hydraulic BOP Handling systems are well suited for both offshore and onshore applications. Their all steel construction, corrosion resistant load chain and marine grade paint further adds to their exceptional durability making Liftchain Hydraulic BOP Systems tough enough to survive harsh oil field environments.

“*Our NEW Arctic Range low temperature series (-45 degrees) option is now available in certain capacities.*”

Request Service, Parts, or Support

Durability:

  • Corrosion resistant load chain and marine grade paint
  • Rugged cast iron and steel construction delivers long-life

Safety:

  • Limit switch for upper and lower over-travel protection
  • Automatic fail-safe, multi disc motor brake on hoist

Performance:

  • Hydraulic motorization offers an incredible smooth operation for precision positioning
  • Very silent operation contributes to greater workplace environment
  • Articulated trolley allows up to 20-degree side pulling operation
  • Orbital motor provides reliable and efficient operation
  • Bottom block mounted on bearing with external lubrication point and water drain
  • Available with bottom hook or clevis

Model

BS25LC2H2

BS30LC2H3

BS36LC2H3

BS40LC2H4

BS50LC2H4

BS50LC2H2

BS75LC2H3

BS100LC2H4

BS125LC2H5

BS150LC2H6

BS150LCH3

BS200LCH4

Capacity(metric tons)

25

30

36

40

50

50

75

100

125

150

150

200

Falls of load chainper hoist

2

3

3

4

4

2

3

4

5

6

3

4

Min. headroom(in)

44.7

47.6

47.6

48.8

48.8

41.1

46.9

48.5

54.5

59.8

73.4

77.2

Lifting speed at rated load(fpm)

6.2

4.1

4.1

3.6

3.6

7.4

4.9

3.6

3.0

2.5

1.6

1.1

Lifting speed at no load(fpm)

6.2

4.1

4.1

3.6

3.6

7.4

4.9

3.6

3.0

2.5

1.6

1.1

Lowering speed at rated load(fpm)

6.2

4.1

4.1

3.6

3.6

7.4

4.9

3.6

3.0

2.5

1.6

1.1

Working pressure(PSI)

1813

2103

2103

2103

2103

2538

2610

2683

2755

2828

2175

2610

Calibration pressure(PSI)

2465

2538

2538

2538

2538

3045

3045

3045

3190

3190

3045

3045

Nominal flow(gpm)

11

11

11

11

11

13

13

13

13

13

11

13

System weight(lbs)

2208

3753

3753

4084

4084

6843

8609

9051

13024

13907

28256

28918

Chain size(mm)

16x45

16x45

16x45

16x45

16x45

22x66

22x66

22x66

22x66

22x66

32x90

32x90

Model

BS25LC2H2

BS30LC2H3

BS36LC2H3

BS40LC2H4

BS50LC2H4

BS50LC2H2

BS75LC2H3

BS100LC2H4

BS125LC2H5

BS150LC2H6

BS150LCH3

BS200LCH4

Number of wheels per hoist

4

4

4

4

4

8

8

8

8

8

16

16

Std Flange adjustment(in)

6,3-12,4

6,3-12,4

6,3-12,4

6,3-12,4

6,3-12,4

6,3-12,4

6,3-12,4

6,3-12,4

6,3-14,2

6,3-14,2

5,9-12,4

6,7-12,4

Max beam bottom flange thickness(in)

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

4.0

4.0

1.6

1.6

Wheel tread diameter(in)

6.3

8.9

8.9

8.9

8.9

6.3

8.9

8.9

9.8

9.8

8.9

8.9

Wheel loading per pair(lbs)

13797

16556

19868

22075

27594

13797

20695

27594

34492

41391

20695

27594

Trolley Assy length(in)

24

31

31

31

31

56

67

67

81

81

134

134

Number of motors per trolley

1

1

1

1

1

2

2

2

2

2

4

4

Max travelling speed at rated load(fpm)

39

39

39

39

39

33

49

49

30

30

33

33

ARCTIC RANGE BROCHURE

BOP HANDLING SYSTEMS CATALOG


Chain Containers

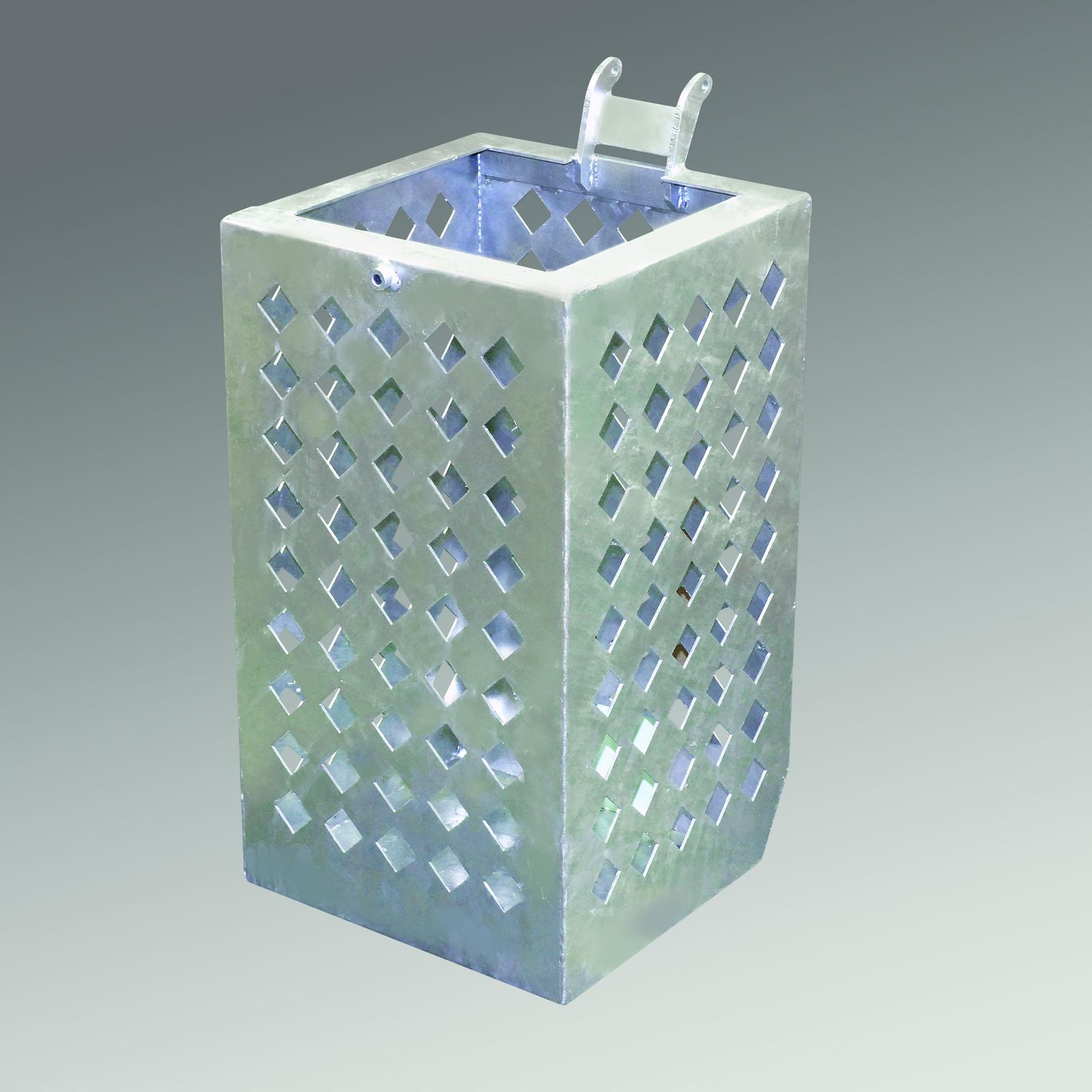

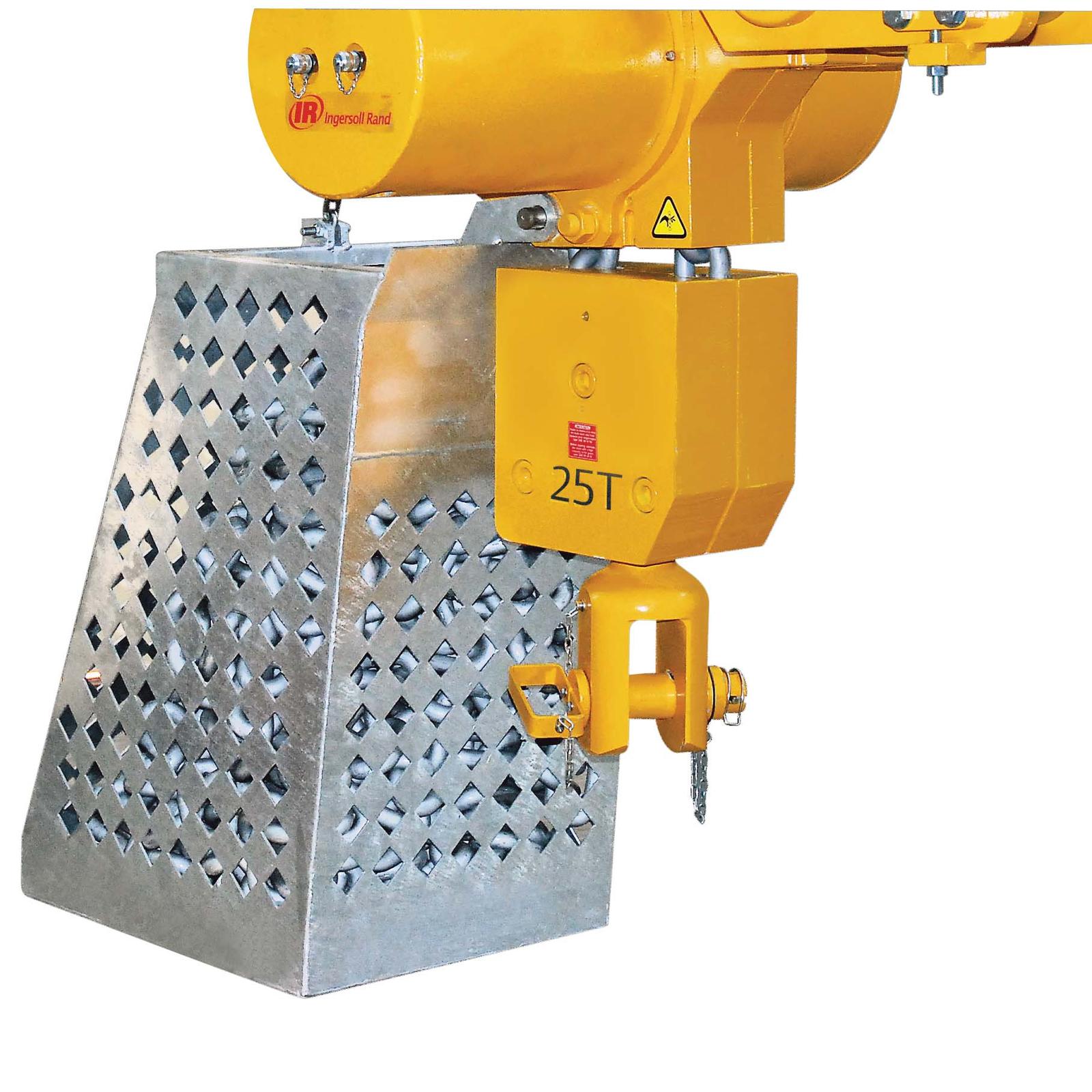

Ingersoll Rand chain containers will keep chain from becoming a danger in your operation and provide protection for the chain from hazardous working conditions.
aftermarket-wireless-controller

Controls

Ingersoll Rand offers a variety of controls for hoists, winches and BOP products, with application-specific options to optimize efficiency and improve safety.

Airline Accessories

Ingersoll Rand offers a variety of airline accessories that will drastically prolong the life of your winch or hoist product.

Hooks & Attachments

Ingersoll Rand hook and attachment options for your hoists and BOP handling systems, including clevis attachments and standard hooks with latches.

Controls

Ingersoll Rand Hydraulic BOP handling systems can be delivered with a full flow control, meaning that up-down and forward-reverse commands are coming directly from an independent control panel of the rig. This type of control is recommended when the operator has the manage various machines from a unique control room.

The pendant joystick control allows the operator to manage the various motions from a single throttle lever. On CE versions, a side 1/4 turn valve can shut down the system for emergency stop.

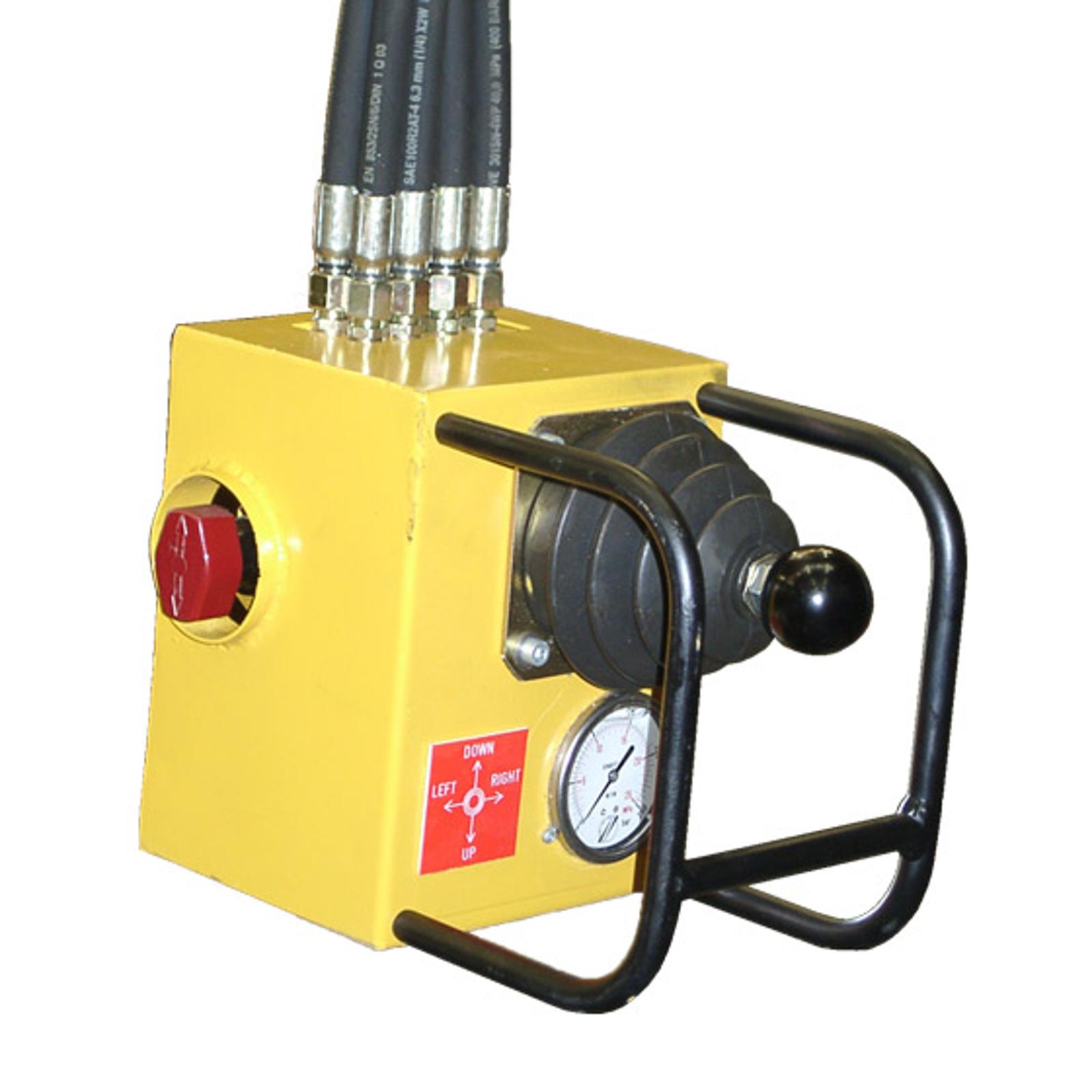

Pendant Joystick Control for BOP Handling Systems
Ingersoll Rand engineers have designed various remote control stations from where several hoists can be managed. Typical console includes several individual controls and one simultaneous control joystick to run a complete BOP handling system.

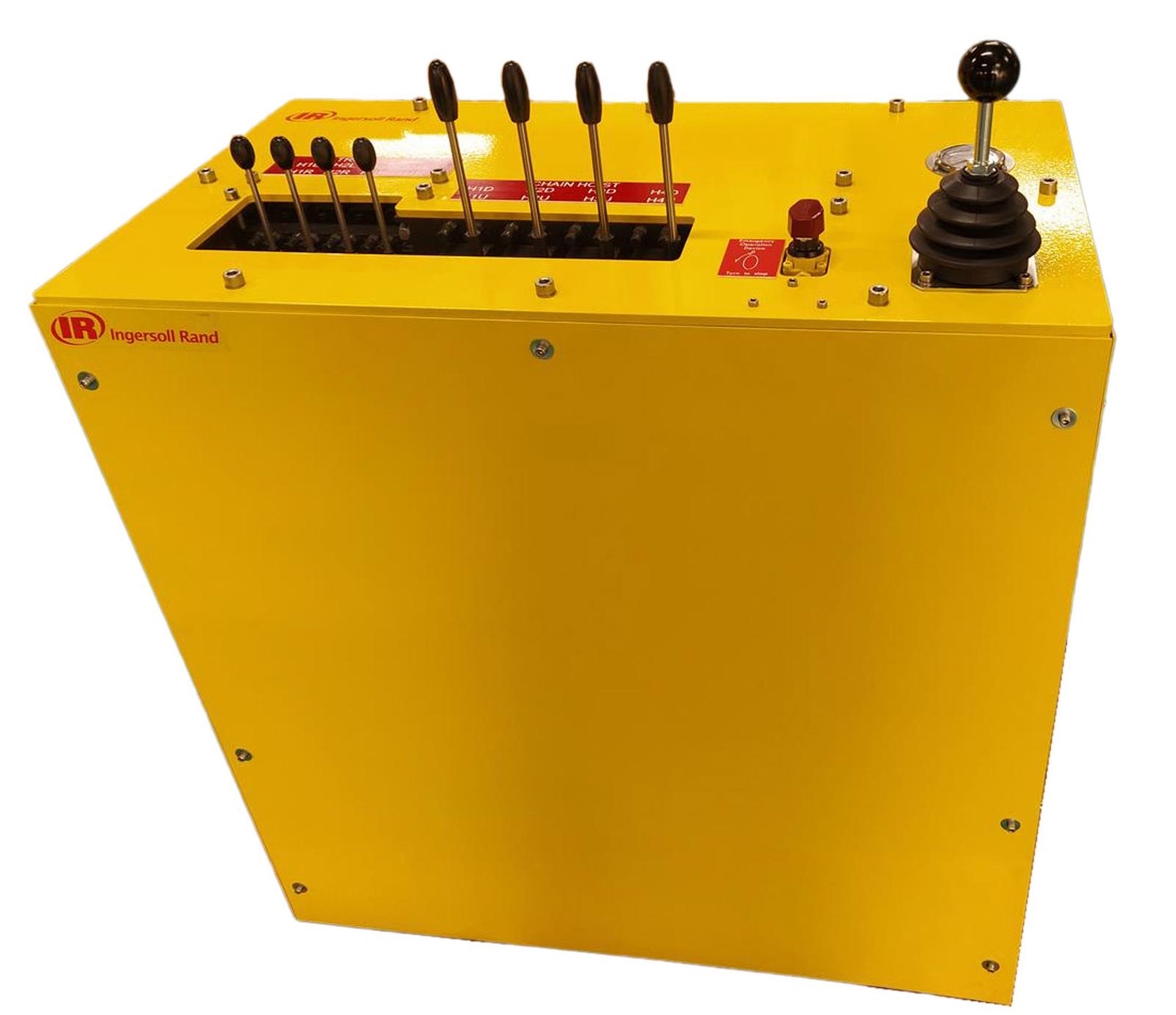

Hydraulic Control Console

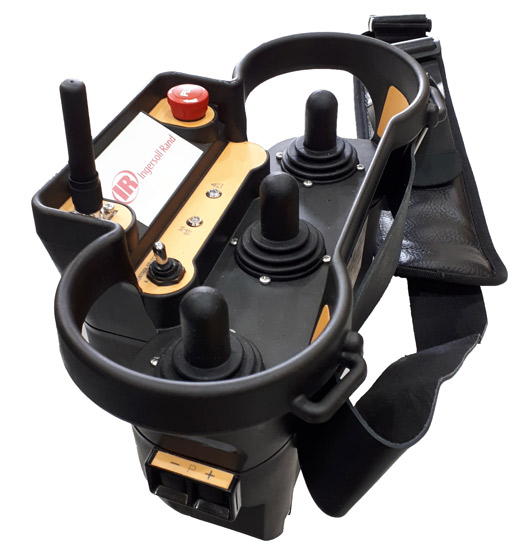

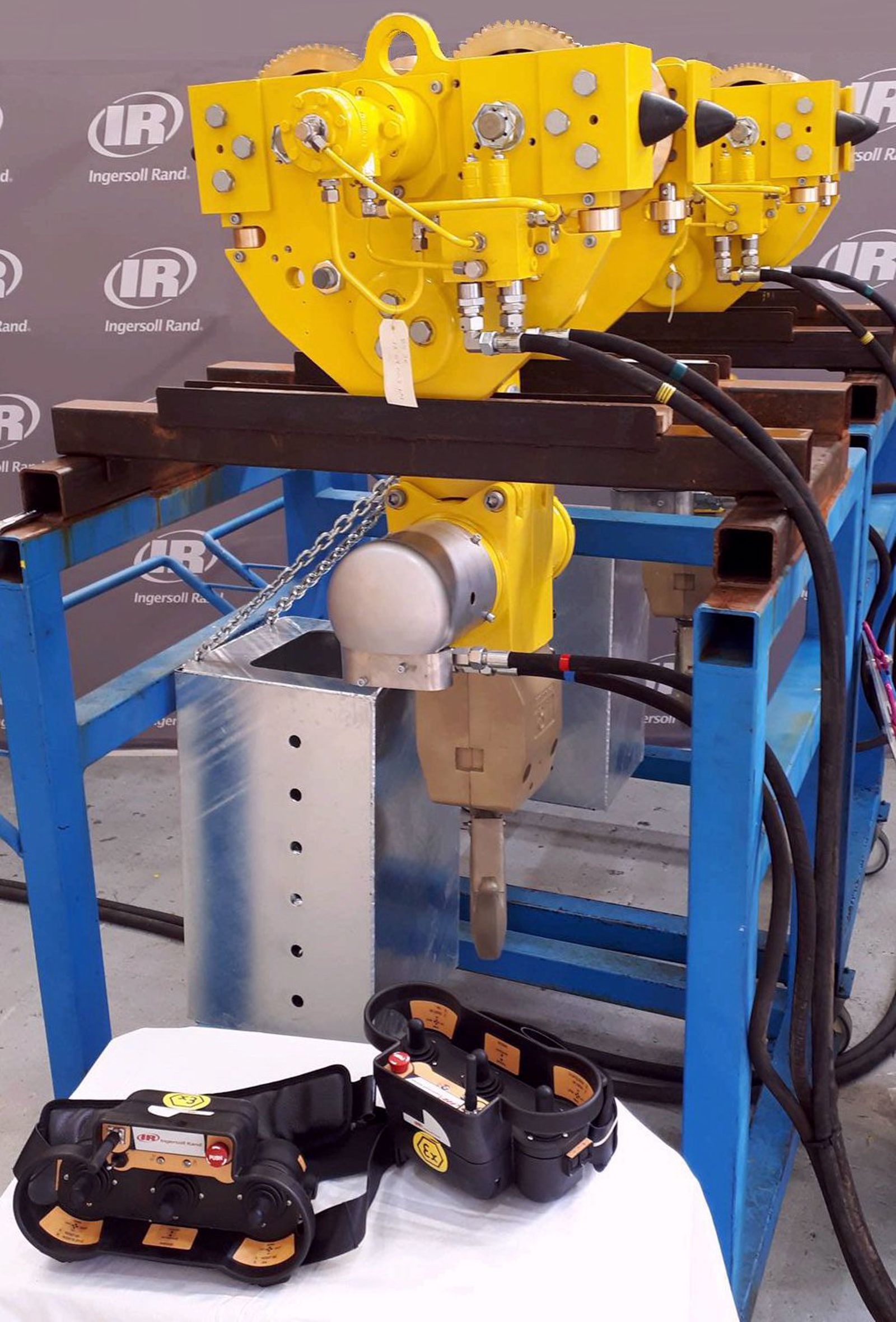

Ingersoll Rand has delivered many wireless control systems to customers with specific features to match their applications.

  • 2 or 4 hoists control
  • ATEX certified
  • Simultaneous control
  • Real load display

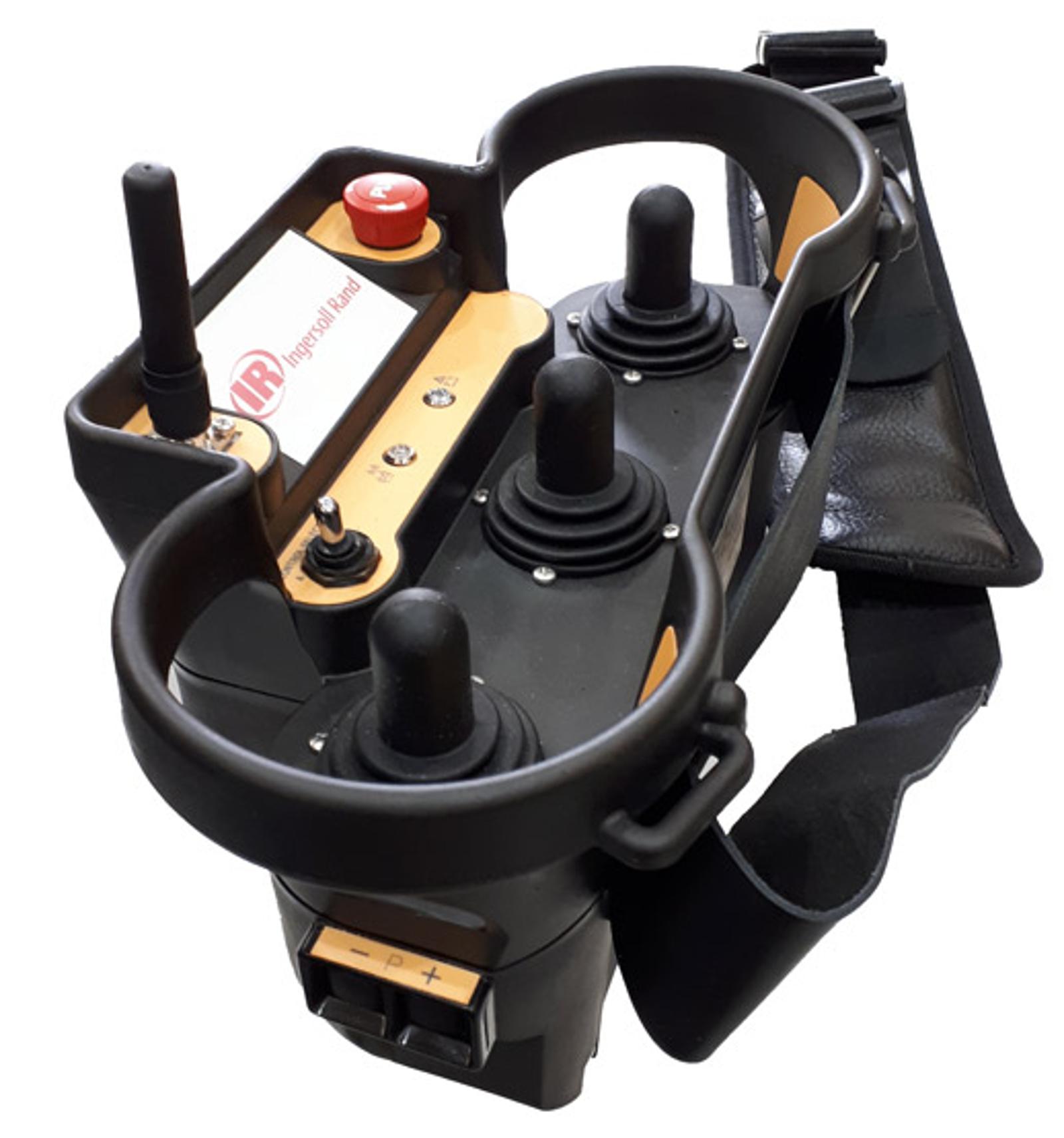

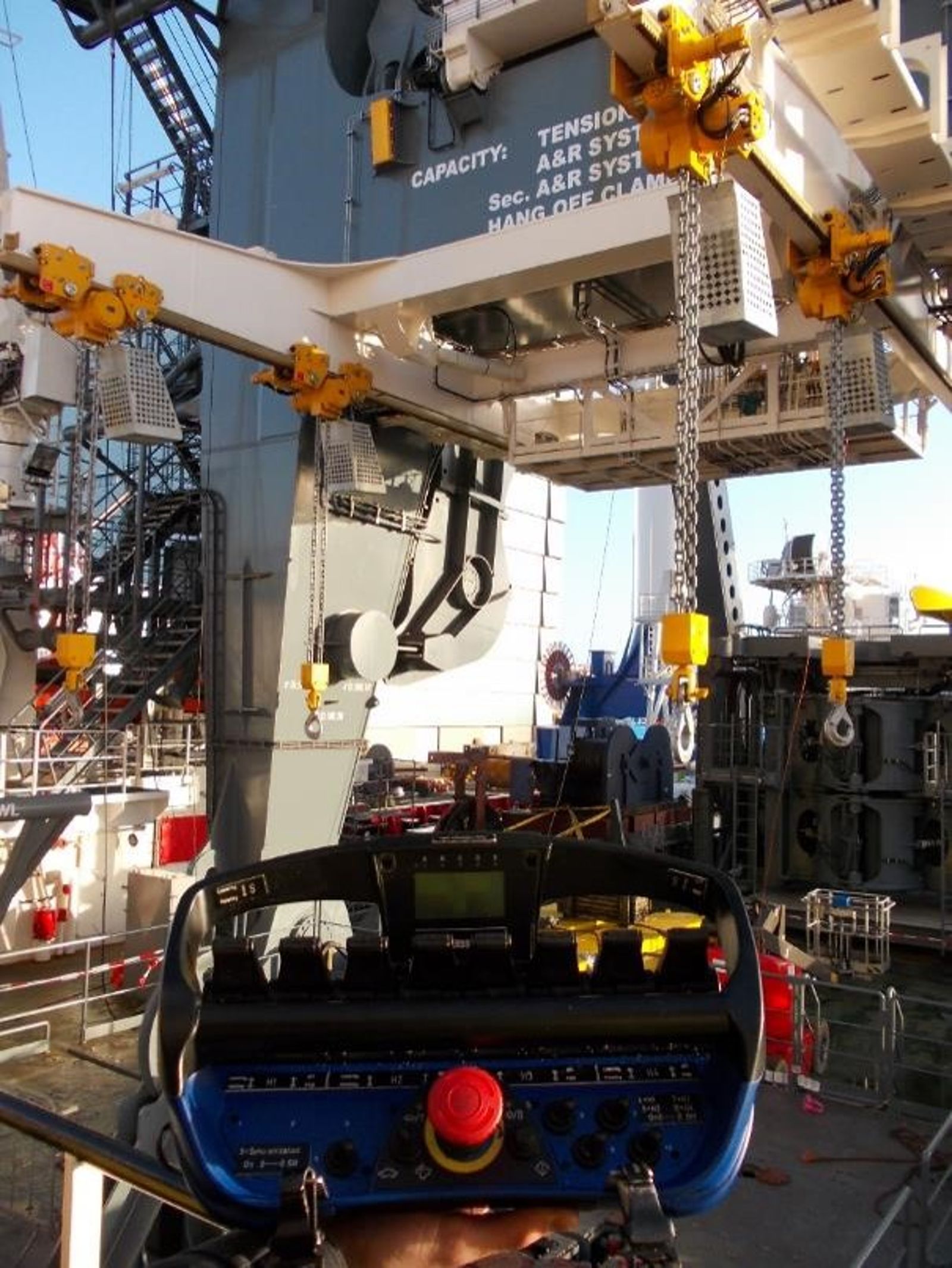

BOP Wireless Control

Hydraulic Supply

Standard hose kits are made of several hoses with 316 stainless steel press fittings at each end and a connecting manifold to be bolted on the beam end. These hose kits exist for either full flow control or joystick pendant control versions.

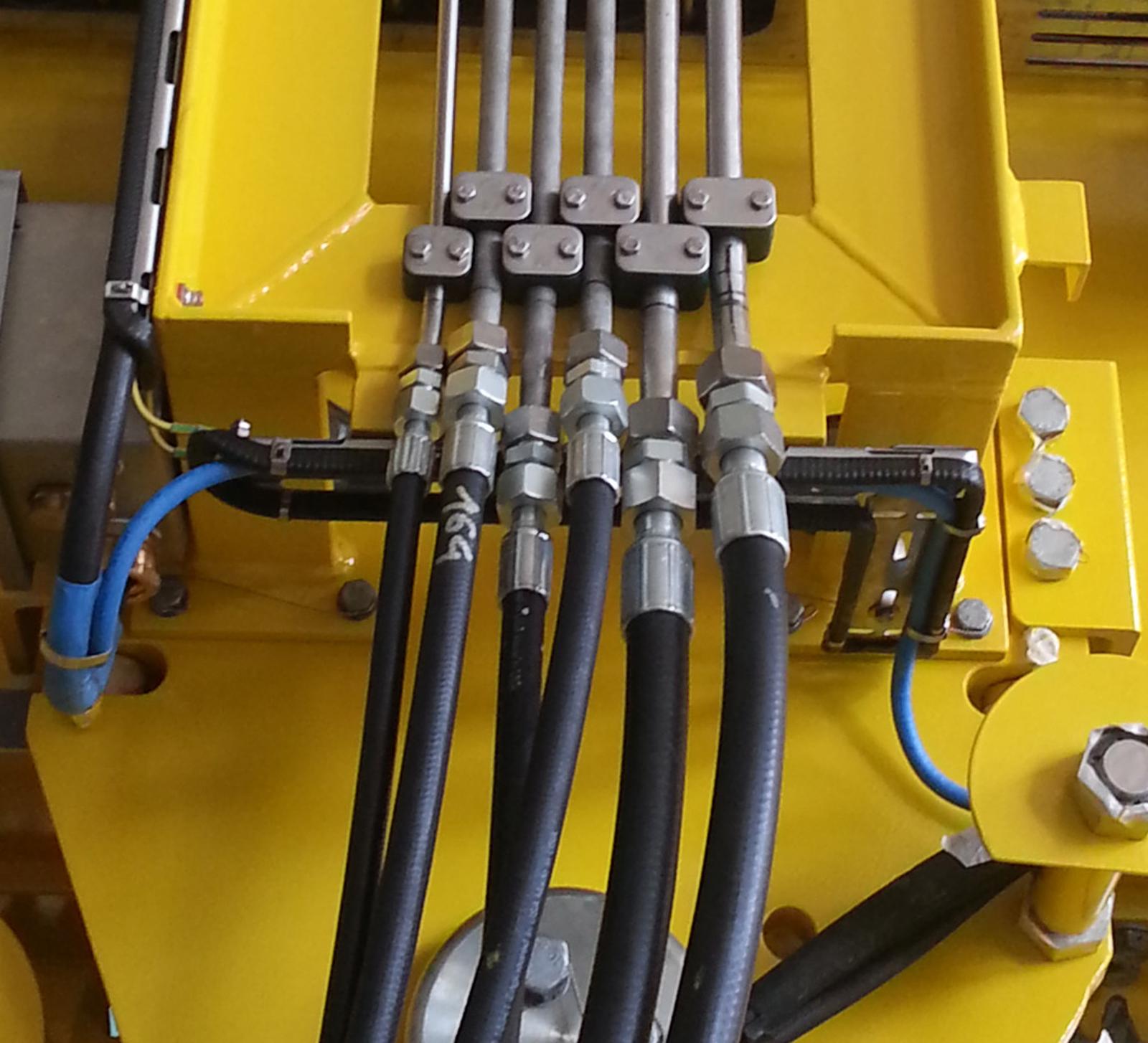

Hydraulic host kit

Festoon Trolley

Standard hose kits are made of several hoses with 316 stainless steel press fittings at each end and a connecting manifold to be bolted on the beam end. These hose kits exist for either full flow control or joystick pendant control versions.

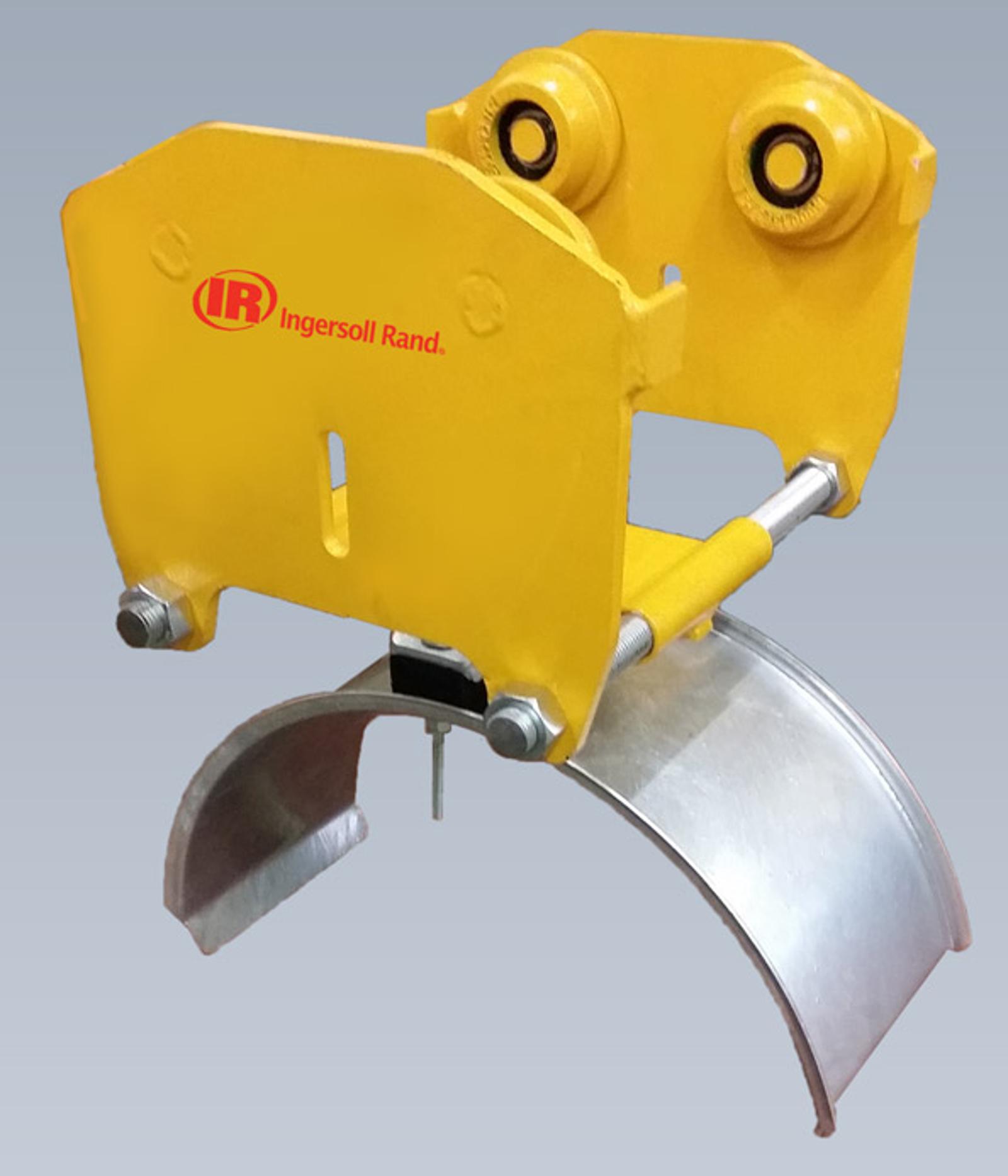

Festoon Trolley for BOP Handling Systems

Rack & Pinion Drive

When harsh conditions are met in offshore operations, our Rack & Pinion drive system offers a positive engagement. Rack sections of 1.5 meters long have to be welded on the travel beam. The positioning underneath the beam flange prevents dust contamination and ensures long life.

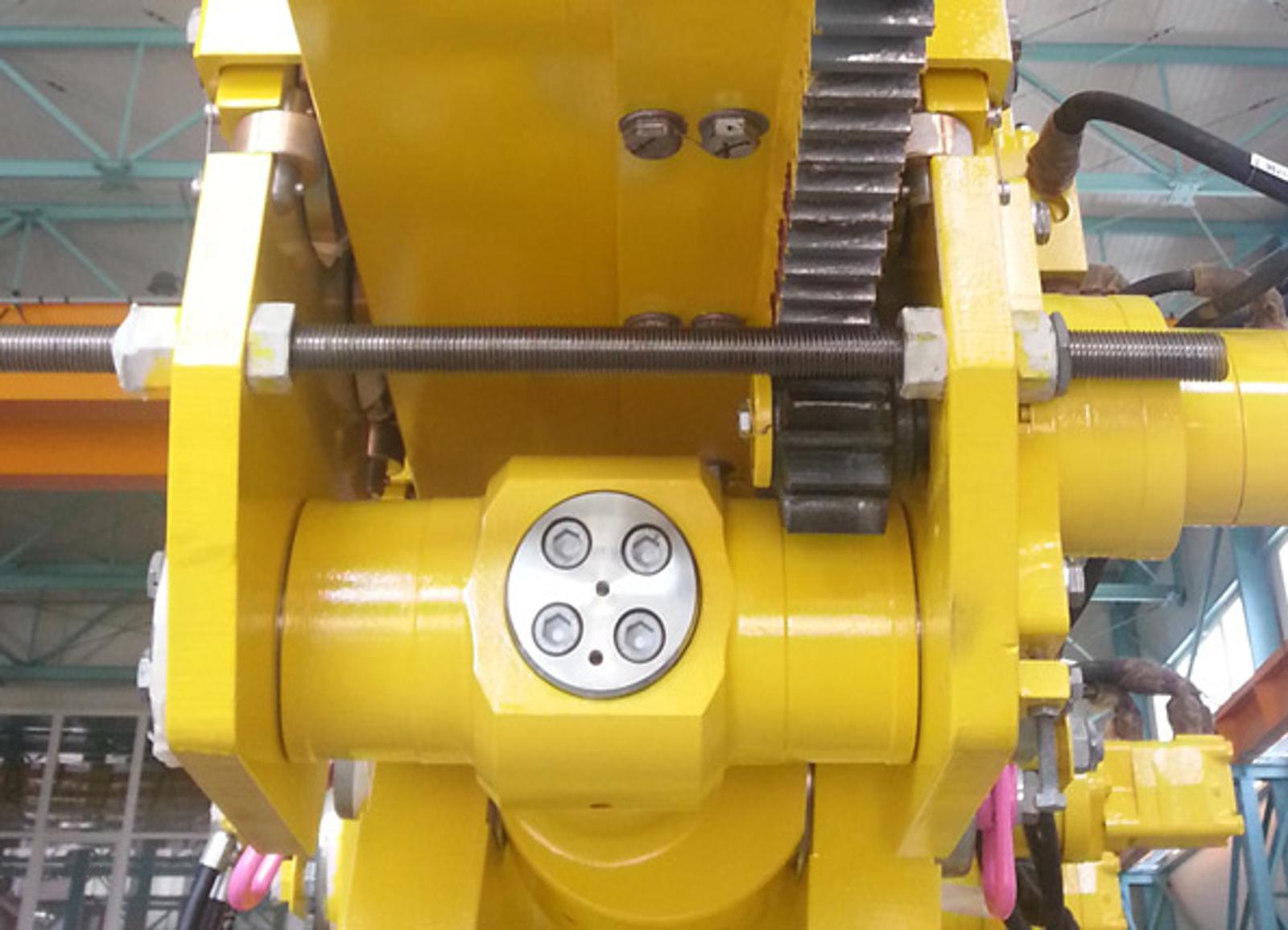

Rack & Pinion Drive LC2H

Retention Lug

This additional hanging point on the hoist trolley assembly allows for suspending the BOP stack for storage. While using the retention lug, the hoist drive and brake mechanism are not subject to vibrations under load tension. Light maintenance operations can also be performed on the hoist while the BOP is secured using this lug.

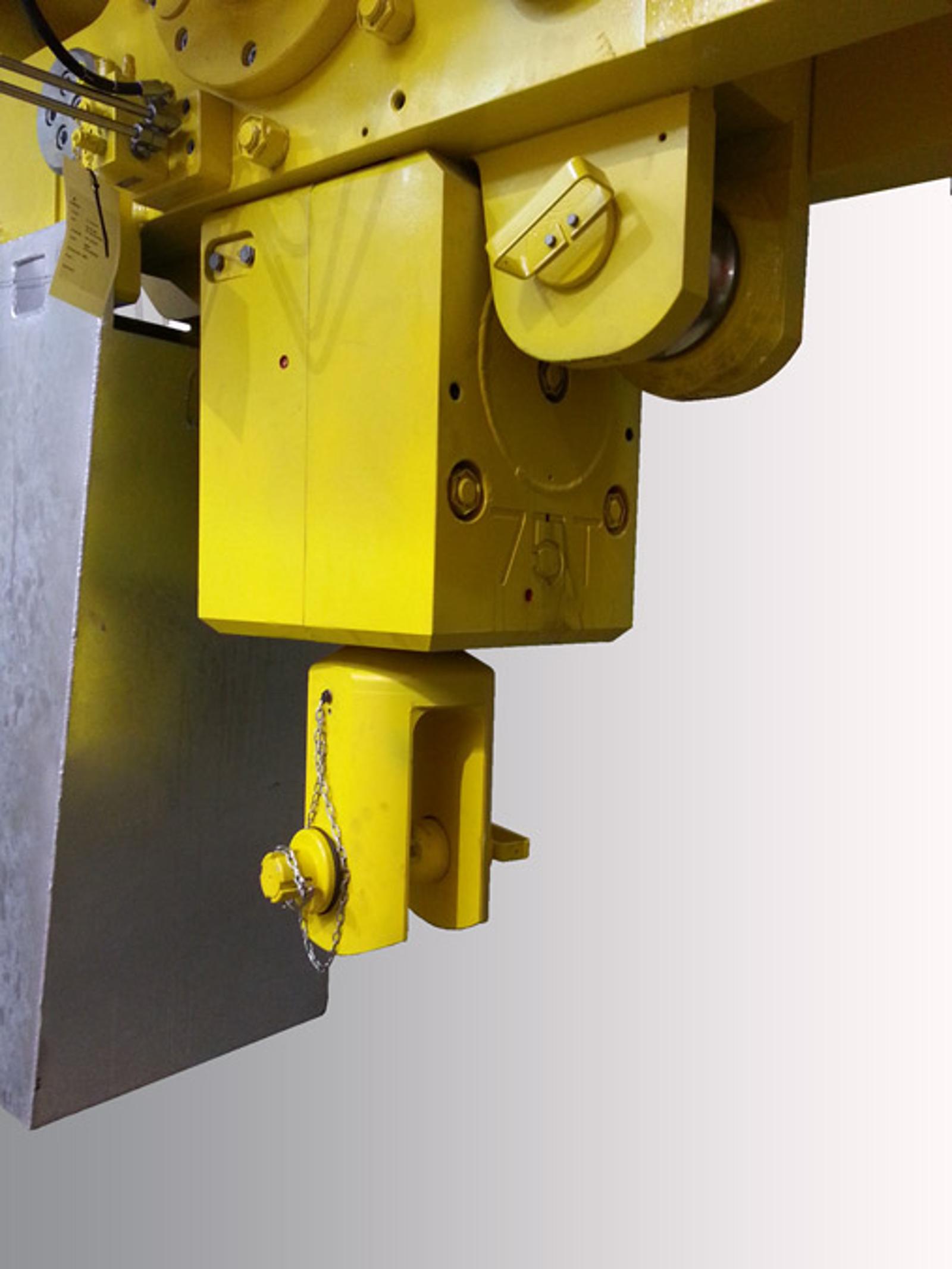

BOP Accessories Retention Lug
