Fulcrum Winches - Material Handling

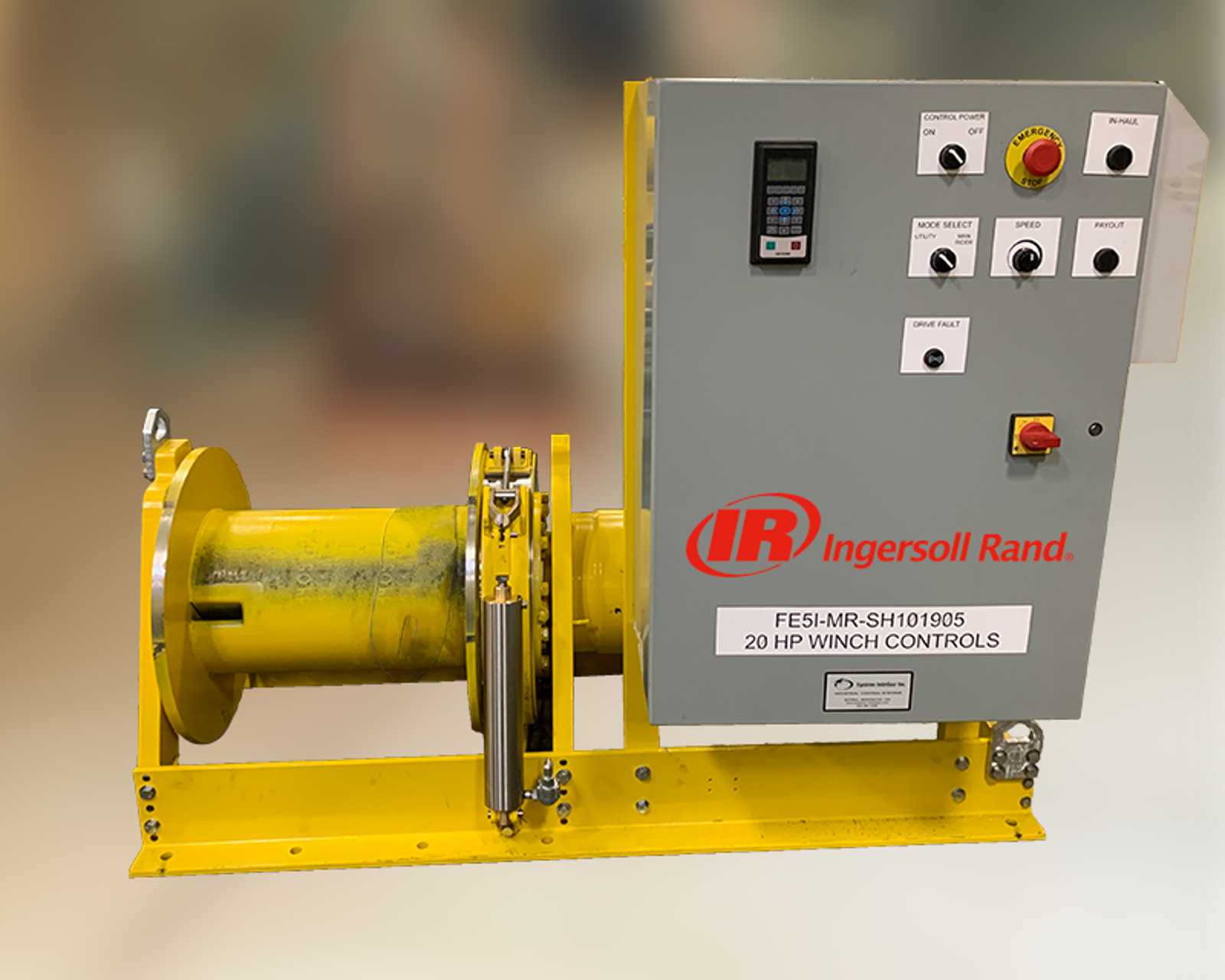

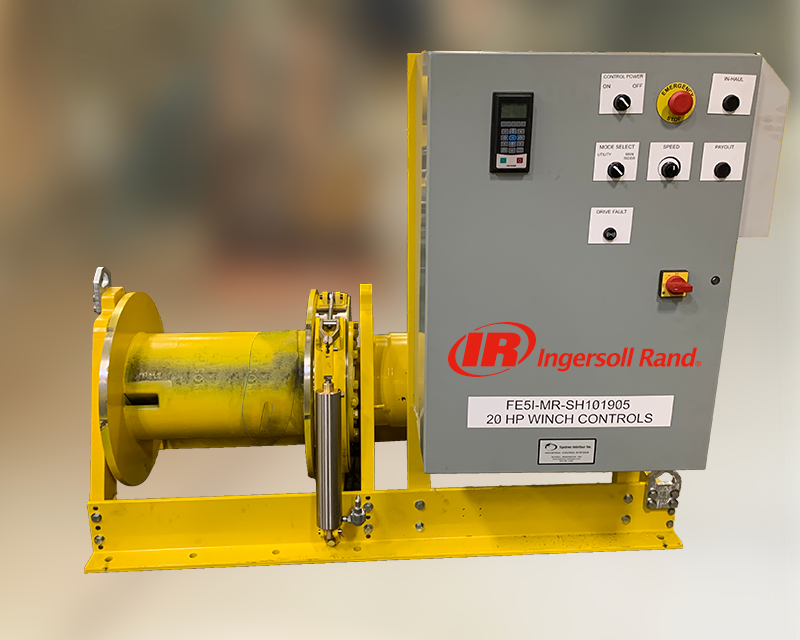

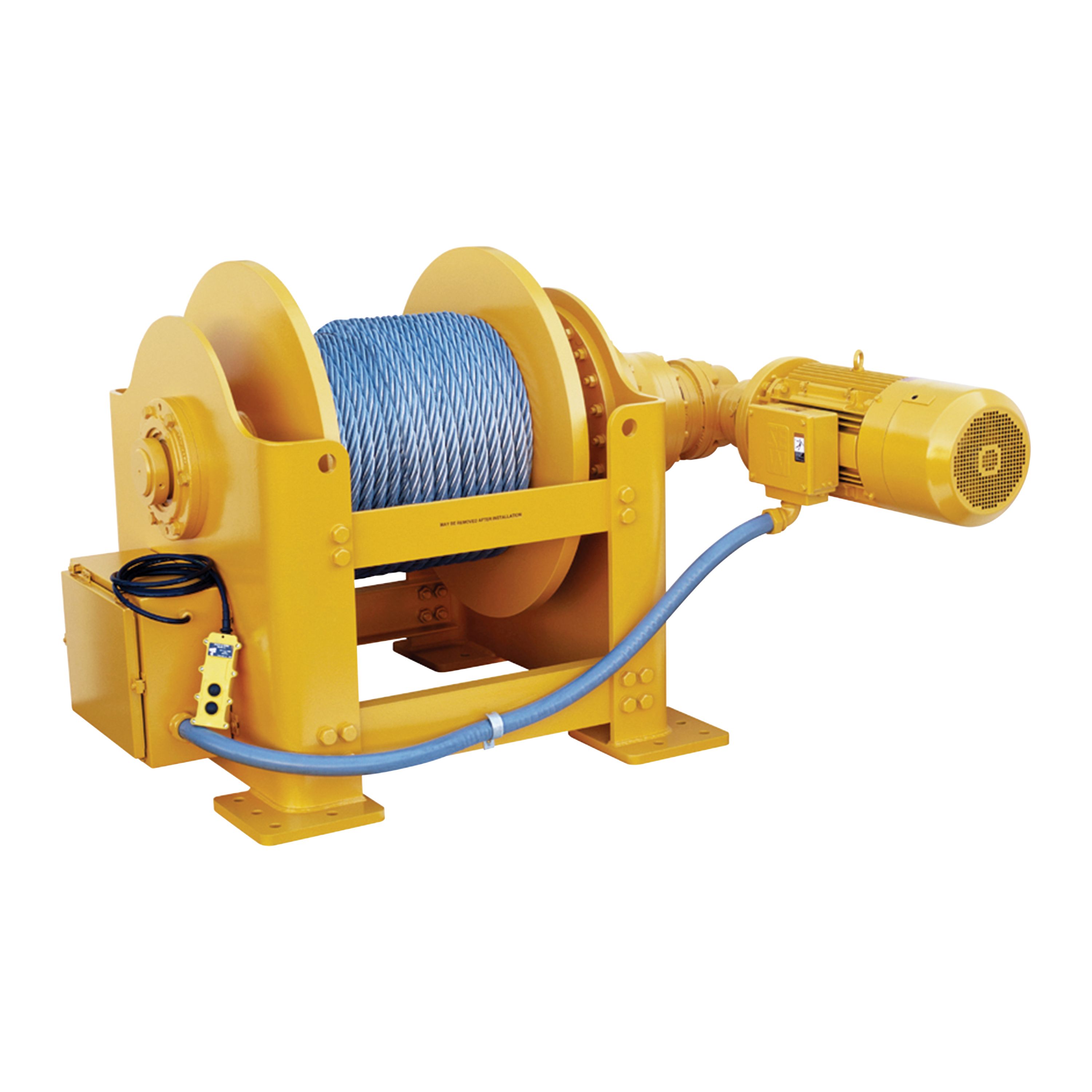

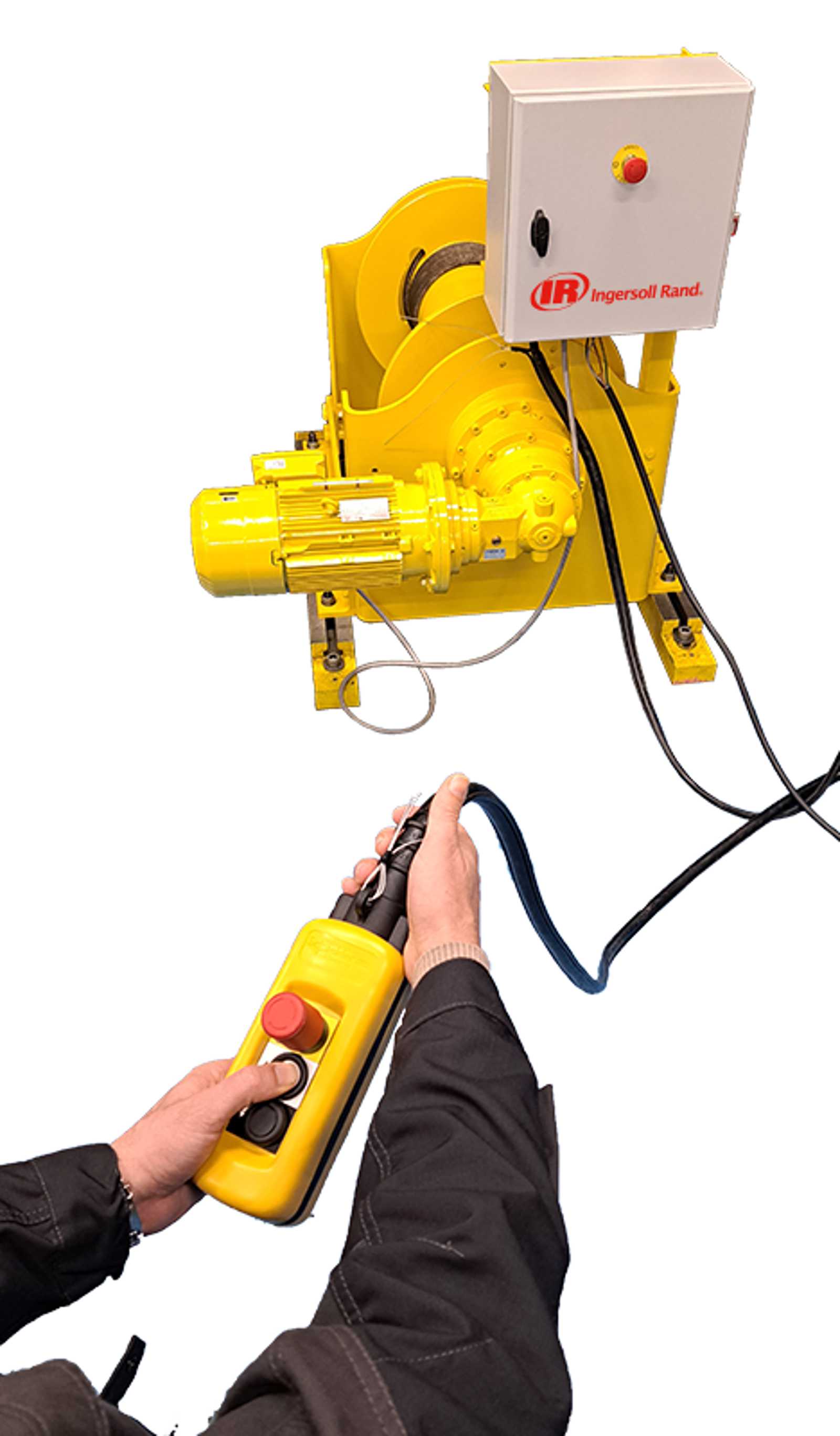

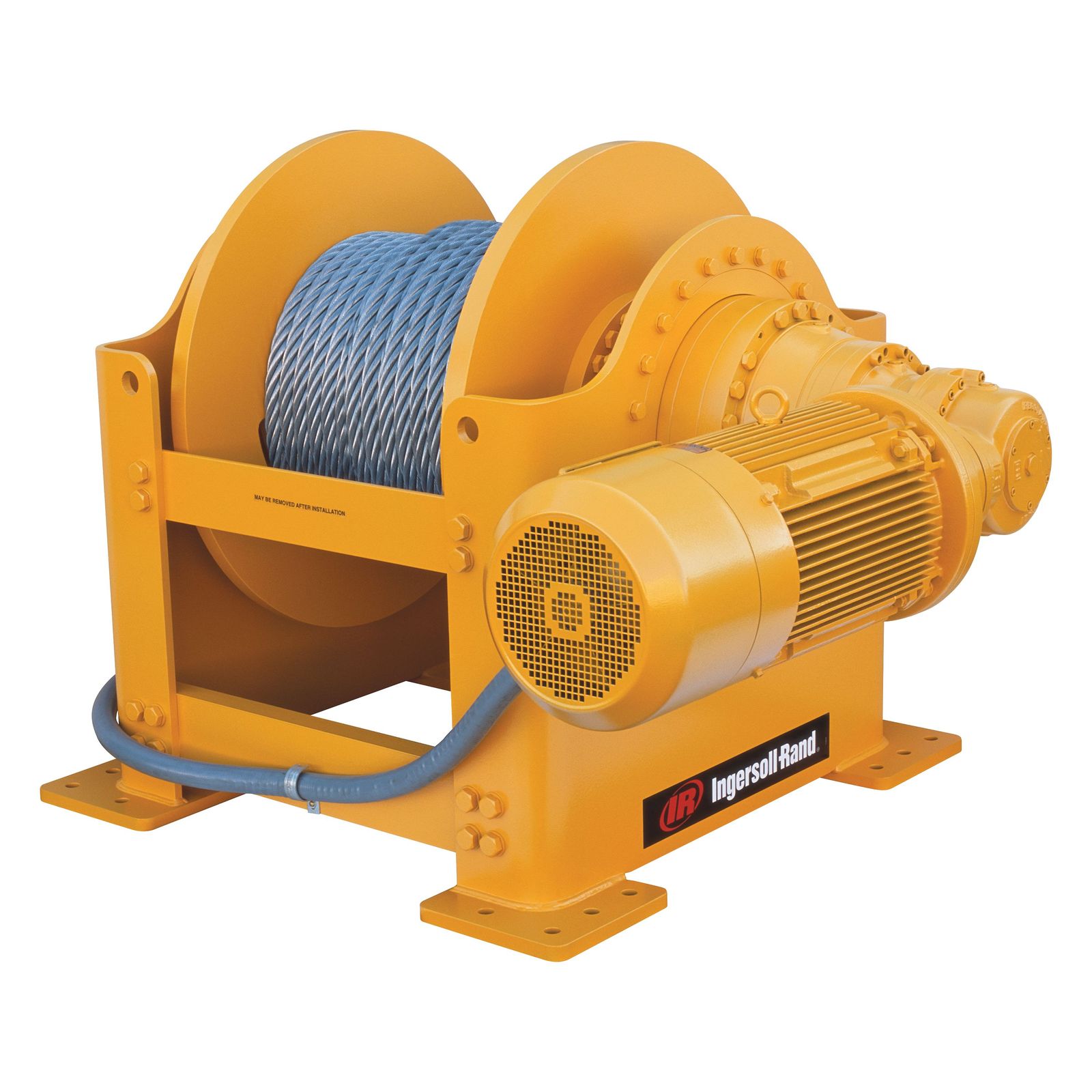

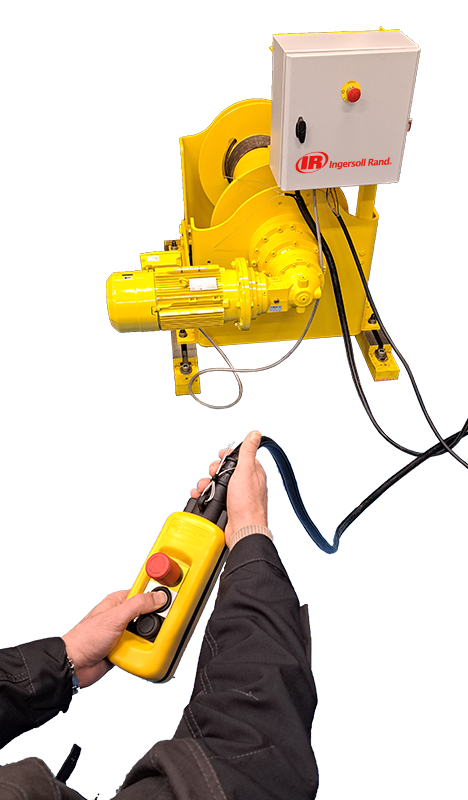

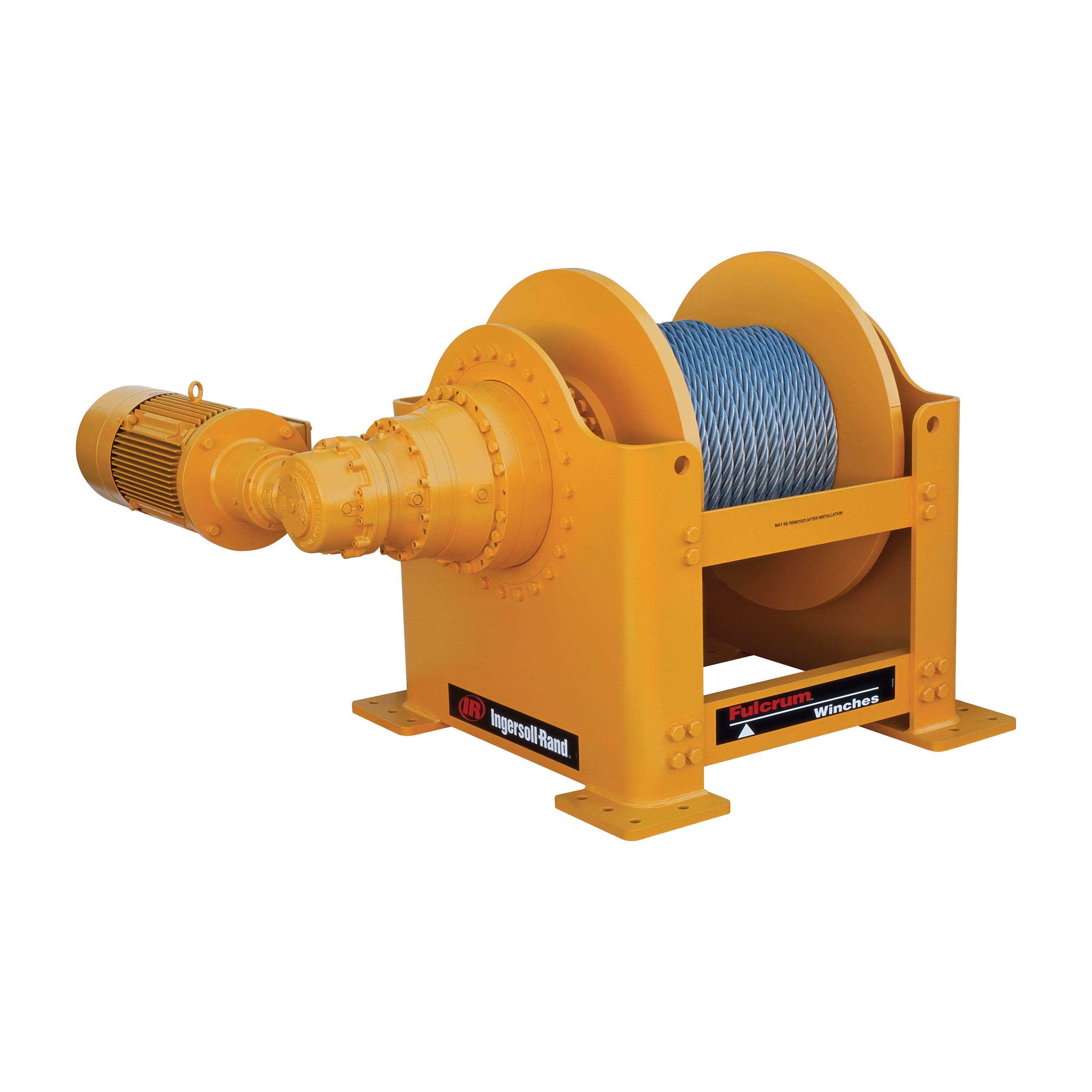

Ingersoll Rand Fulcrum Winches are electrically powered utility winches. They are suitable for a wide variety of applications and available in two configurations - EP for pulling applications and EL for lifting applications. Fulcrum winches offer an extensive array of options to further enhance application flexibility. All Fulcrum electric winches feature a totally enclosed fan cooled (TEFC), NEMA B class motors with up to 280% starting torque and a 5:1 design factor with a two year warranty. Fulcrum Series winches are designed to meet or exceed North American ANSI/ ASME B30.7 standards while providing dependable, cost effective performance in a rugged, safe, and versatile package.

Request Service, Parts, or Support

Durability:

Fully enclosed planetary gear boxes seal out environmental contaminants
Fabricated steel frame provides maximum product life
Integrated lifting lugs simplify transport and installation

Safety:

5:1 design factor for safe working load
Automatic disc motor brake for full control
Manual brake release handle for lowering of loads in the event of power failure

Performance:

High-torque, continuous duty TEFC NEMA B class motor, rated for continuous duty in high cycle applications
Variable mounting configurations including deck, wall, or ceiling (inverted) mounting
Versatile cable anchor design accepts multiple wire rope sizes and allows the cable to be spooled from the bottom (underwound) or top (overwound) of the drum
Worldwide 3 phase voltage options available

Frame	3	3	3	4	4	4	5	5	5	5	6	6	7	7	7	7	8	8
Pulling Model 15:1 D/d Ratio	EP5300-17-18	EP6700-20-17	-	EP8200-23-24	EP11700-13-27	-	EP15900-19-24	-	EP20600-19-24	-	EP26000-17-24	-	EP31900-20-24	-	EP38400-20-24	-	EP45600-18-30	-
Lifting Model 18:1 D/d Ratio	EL5300-17-18	-	EL6000-23-18	EP8200-23-24	-	EL9200-23-24	-	EL14100-22-24	-	EL16400-20-24	-	EL21300-21-24	-	EL27000-22-24	-	EL32600-19-24	-	EL42400-20-30
Std Drum Length in.	18	18	18	24	24	24	24	24	24	24	24	24	24	24	24	24	30	30
hp	3	5	5	7.5	5	7.5	10	10	15	15	20	20	20	20	25	20	30	30
Line Pull, 1st Layer (lbs)	5300	6700	6000	8200	11700	9200	15900	14100	20600	16400	26000	21300	31900	27000	38400	32600	45600	42400
Line Pull, Mid Layer (lbs)	4000	4900	4900	6200	8500	7700	11900	11700	16400	14900	18900	17700	26000	22700	30800	29500	37200	35100
Line Pull, Full Layer (lbs)	3200	4200	4200	5000	7200	7100	10200	10100	13600	13600	16000	16300	22000	21000	25700	27000	31500	29900
Std Line Speed, 1st Layer (fpm)	17	20	23	23	13	23	19	22	19	20	17	21	20	22	20	19	18	20
Std Line Speed, Mid Layer (fpm)	23	28	28	30	17	28	26	26	24	22	23	25	24	28	25	21	22	24
Std Line Speed, Full Layer (fpm)	28	32	32	37	21	30	30	30	29	24	28	27	28	30	30	22	26	28
Wire Rope Size in.	0.5	0.5625	0.5625	0.625	0.75	0.75	0.875	0.875	1	1	1.125	1.125	1.25	1.25	1.375	1.375	1.5	1.5
Drum Capacity, 1st Layer (ft)	0.5	0.5625	0.5625	0.625	0.75	0.75	0.875	0.875	1	1	1.125	1.125	1.25	1.25	1.375	1.375	1.5	1.5
Drum Capacity, Mid Layer (ft)	387	351	277	515	443	394	481	385	305	240	433	371	338	395	310	230	423	453
Drum Capacity, ˂2 Layers(1) (ft)	768	578	506	1024	733	548	790	699	566	378	718	518	619	549	573	362	776	826
Drum Capacity, Full Layer(2) (ft)	1066	840	768	1421	1070	892	1145	1059	872	686	1048	1026	1127	892	881	659	1186	1255
