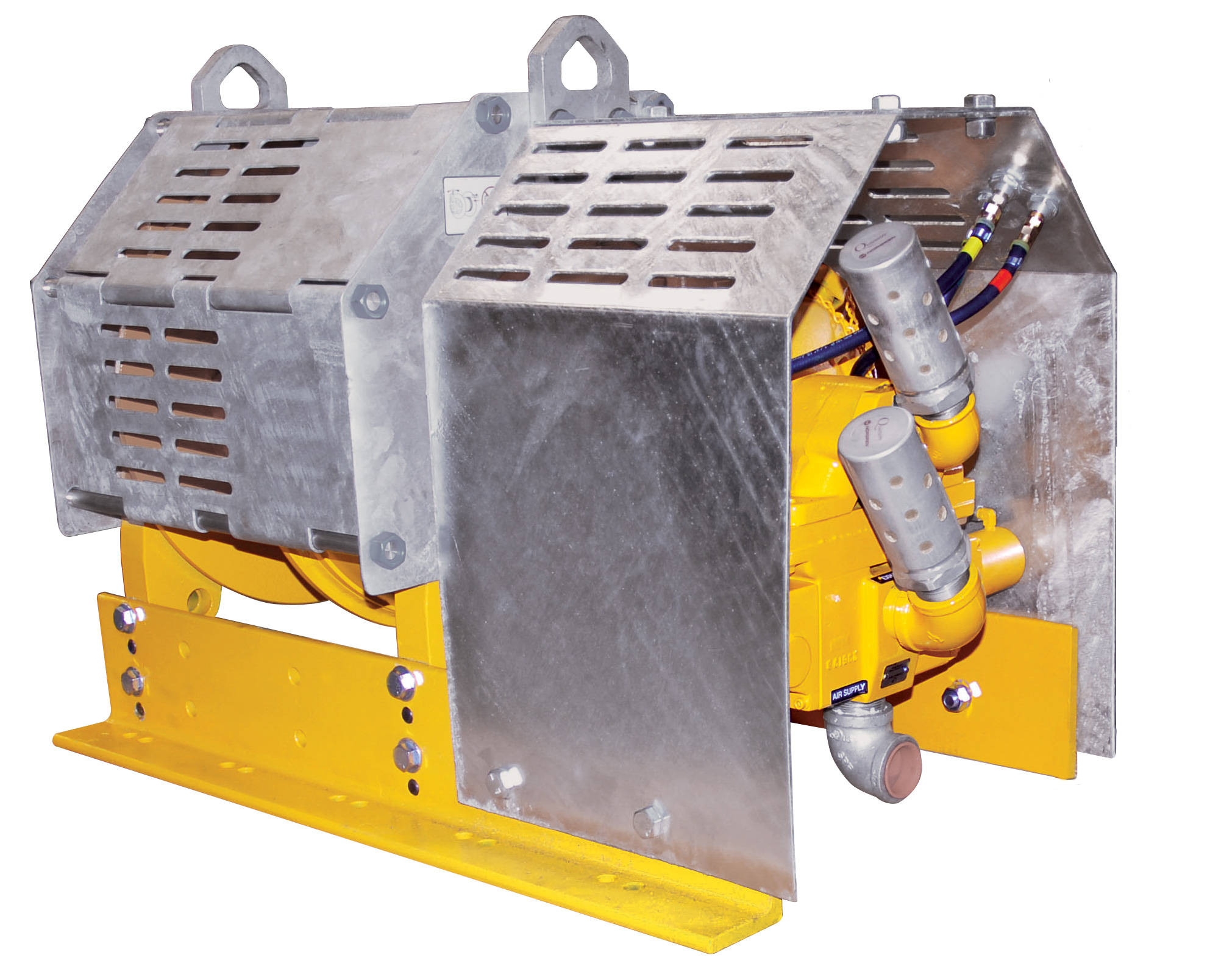

Mining Air Winch

Based on the same rugged Infinity series winches used for offshore oil rigs and other demanding 24/7 applications, the Ingersoll Rand Mining Winch is built to thrive in harsh environments and is designed specifically for mining operations. Developed in real working mines and refined by miners who’ve had gloves on the throttle, their compact size and reliable operation make them ideal for all lifting and pulling jobs throughout the mine.

Durability:

  • Powerful radial piston air motor provides reliable power and adjustable speed
  • Rugged all-steel construction for maximum life
  • Abrasion resistant sheathing over control hoses
  • Sealed, automatic disc brake for sure operation and protection from moisture and contaminants

Safety:

  • Full debris protection with drum and control guards

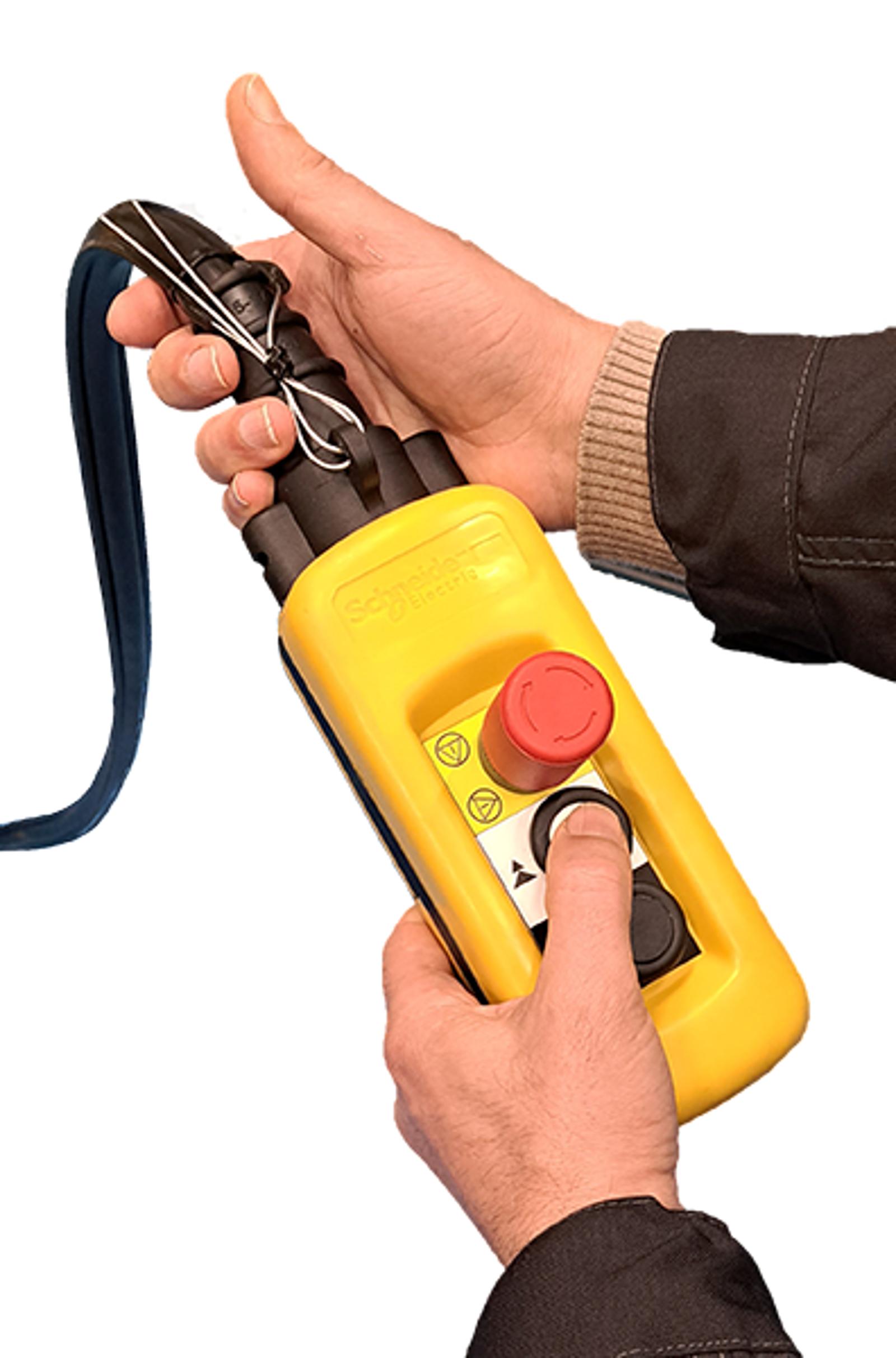

  • Remote pendant control with variable speed and quick release/replace

Performance:

  • 9.4 hp radial piston motor with ample torque and precise spotting control
  • Quick check oil sight gauge on motor
  • Quick release remote pendant control for remote operation

Model

HP

Rated Capacity at Top Layer kg (lb)

Lifting Speed at Top Layer m/min (f/fpm)

Stall Pull kg (lb)

Air Consumption with Rated Load m³/min (ft³/min)

Travel Air Volume of Air Needed to Move Distance Shown Over 3 m (m³)

Travel Air Volume of Air Needed to Move Distance Shown Over 10 ft (ft³)

Sound Level as per EN 14492-1 dB(A)

Inlet Size NPT

Exhaust Size NPT

Net Weight kg (lb)

FA2i

9.4

2,000 (4,400)

16 (51)

4,154 (9,139)

8 (280)

0.3

10.8

87

1-1/4”

1-1/4”

386 (850)
