- Meets ANSI B30.16 for hoisting requirements - 5:1 safety factor (minimum).
- All steel construction.
- Universal wheels fit both flat and tapered beam flanges.
- Rail sweeps are integral with the side plates.
- Cast iron wheels roll easily on permanently greased sealed bearings.
- 7 ft pendent control or 8 ft hand chain length.
- Tight turning radius.
- Standard 3 ton trolley fits 3-1/4 - 6 in. flange width, 6 ton a 4-1/4 - 7-1/4 in. flange width.
- Modular trolley frame allows conversions for hook-on, plain rigid, geared and motorized configurations in the field.
- Motorized trolley has automatic disc brake to control stopping.
- Low air consumption uses only 35 scfm for motorized version.
Model Name | Weight, lbs (kg) | Minimum Curve Radius, in (mm) | Minimum Beam Height, in (mm) | Flange Adjustment, in (mm) | Capacity, lbs (kg) |
|---|---|---|---|---|---|

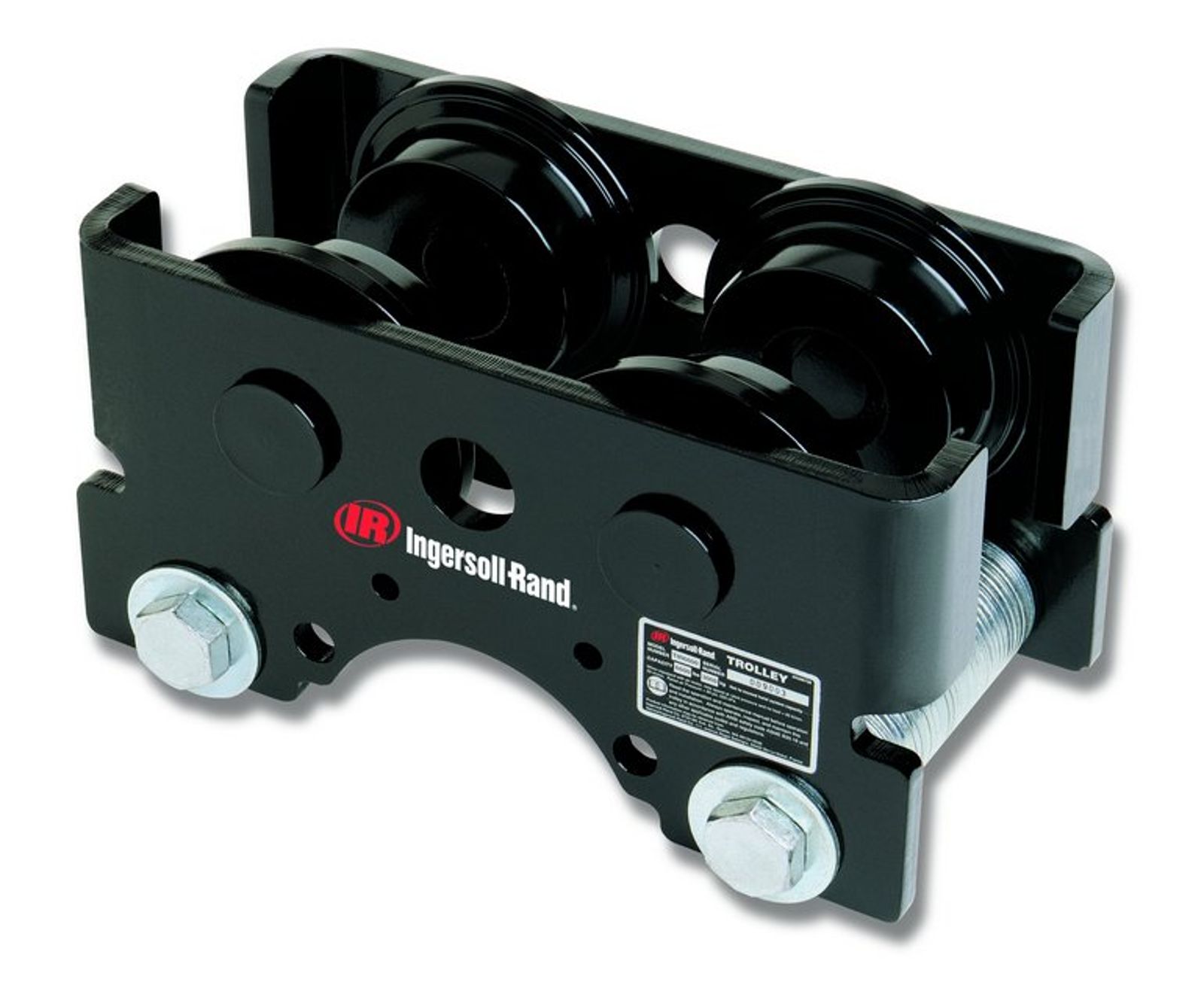

TIR6600 | 37.0 (16.8) | 42.0 (1066.8) | 6.0 (154.4) | 3.3 - 6.0 (83.8 - 154.2) | 550 - 6600 (250 - 3000) |
