- Quick installation by hand
- Low-headroom design adjusts to fit a wide range of flat or tapered beams
- Meets ASME B30.16 for use with powered or manual hoists
- Each unit is serialized, supplied with a test certificate and manual
- Metric rated for vertical lifting or in-line pulling at 2200 lbs (1000 kg) per ton

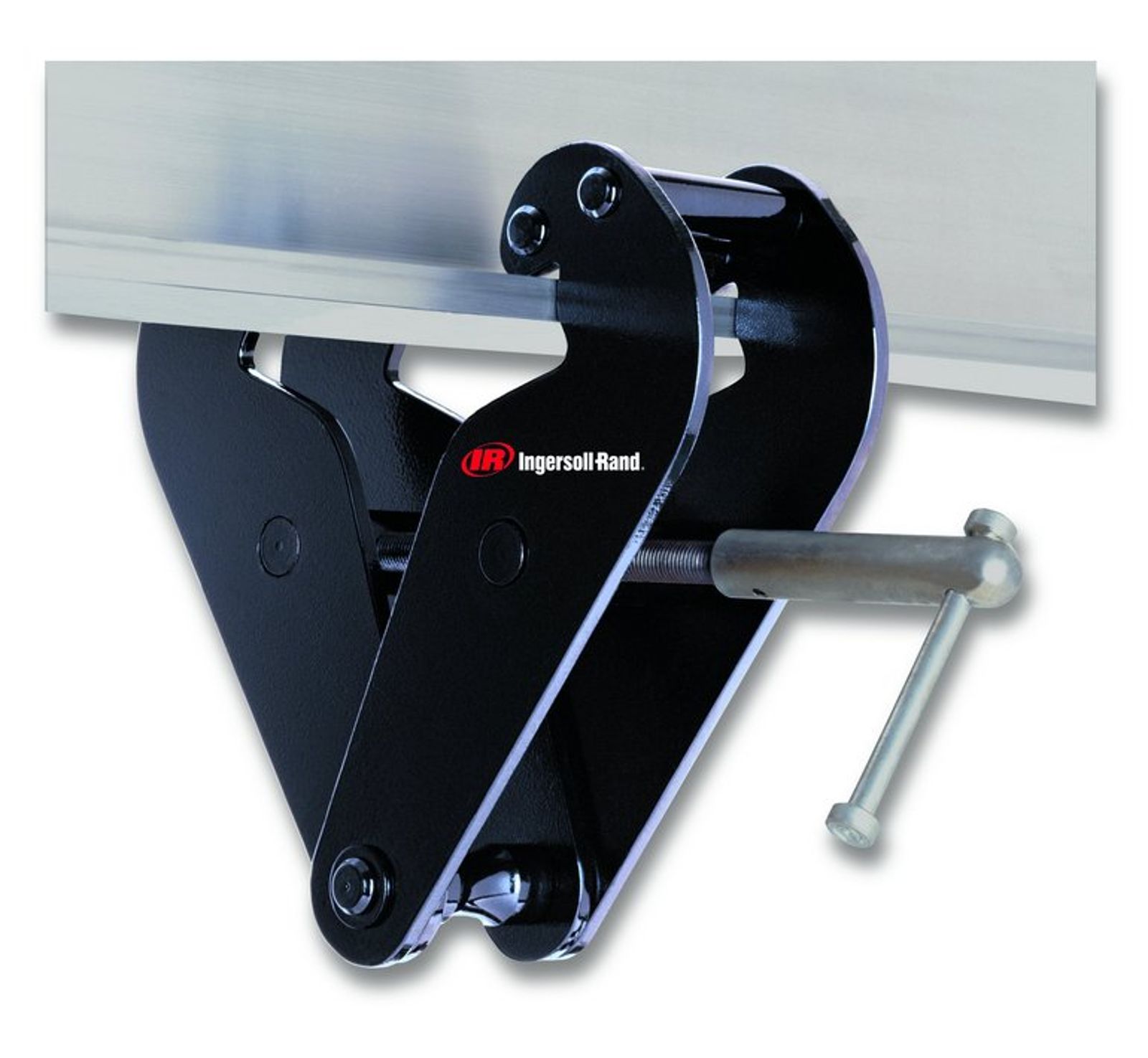

- 1-10 metric ton Capacity Beam Clamps provide a temporary or permanent mount to a wide range of tapered or flat beams.
- They are the ideal rigging device for lifting, pulling or suspending loads.
- These units have been designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting ASME B30.16 and ASME B30.7.
- Quick and simple installation is achieved without tools.
- Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom.
- The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.
Model | Max. Beam Width | Weight |
|---|---|---|
inch / mm | lbs / kg | |
BCT-1 | 8.7 / 220 | 8.4 / 3.8 |
BCT-2 | 8.7 / 220 | 10.1 / 4.6 |
BCT-3 | 12.6 / 320 | 19.8 / 9 |
BCT-5 | 12.6 / 320 | 24.2 / 11 |
BCT-10 | 12.6 / 320 | 35.2 / 16 |
