- Meets ANSI B30.16 for hoisting requirements - 5:1 safety factor (minimum).
- All steel construction.
- Universal wheels fit both flat and tapered beam flanges.
- Rail sweeps are integral with the side plates.
- Cast iron wheels roll easily on permanently greased sealed bearings.
- 7 ft pendent control or 8 ft hand chain length.
- Tight turning radius.

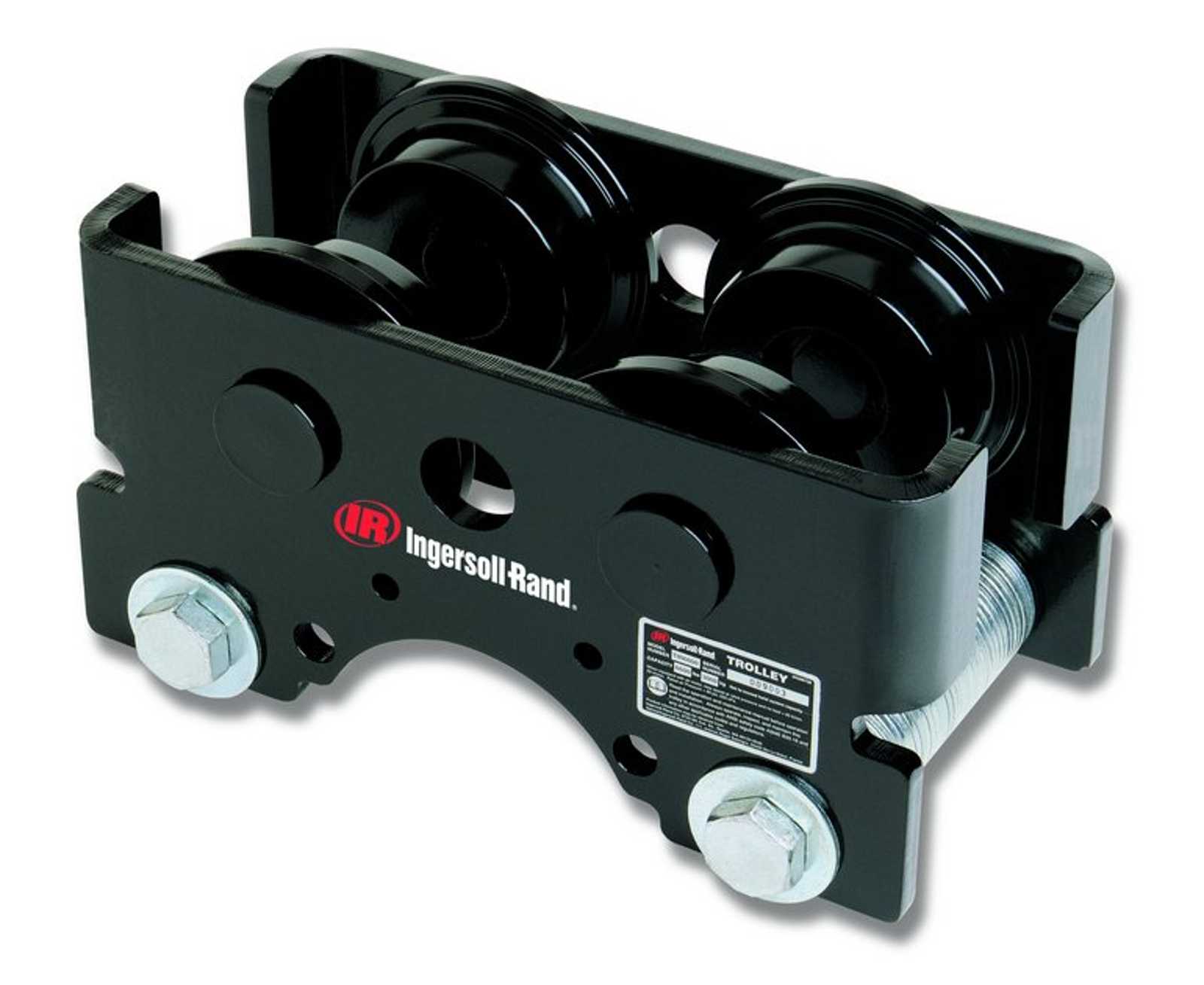

- Standard 6 ton trolley fits 4-1/4 - 7-1/4 in. flange width.
- Modular trolley frame allows conversions for hook-on, plain rigid, geared and motorized configurations in the field.

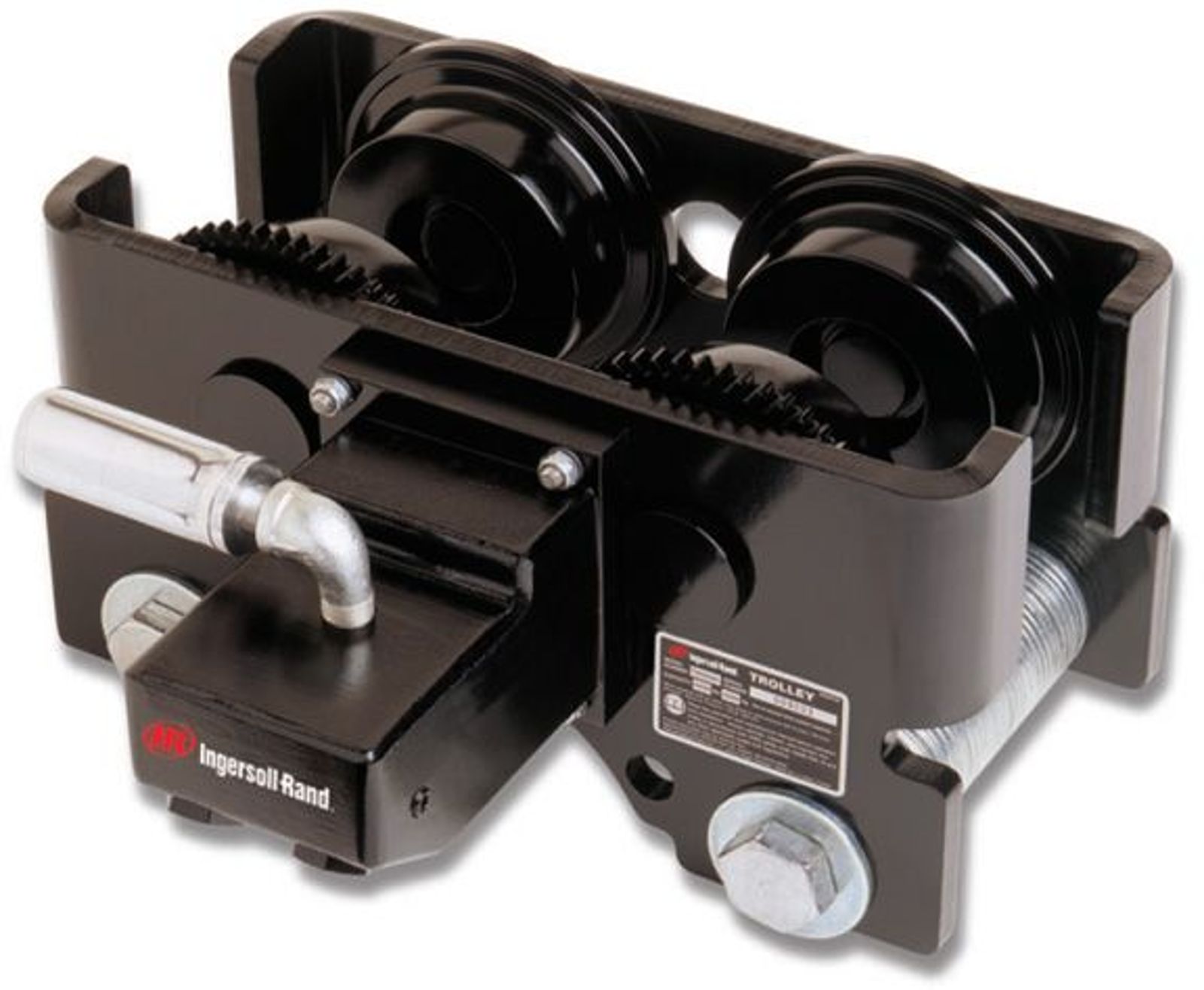

- Motorized trolley has automatic disc brake to control stopping.
- Low air consumption uses only 35 scfm for motorized version.
Model Name | Weight, lbs (kg) | Minimum Curve Radius, in (mm) | Minimum Beam Height, in (mm) | Flange Adjustment, in (mm) | Capacity, lbs (kg) |
|---|---|---|---|---|---|

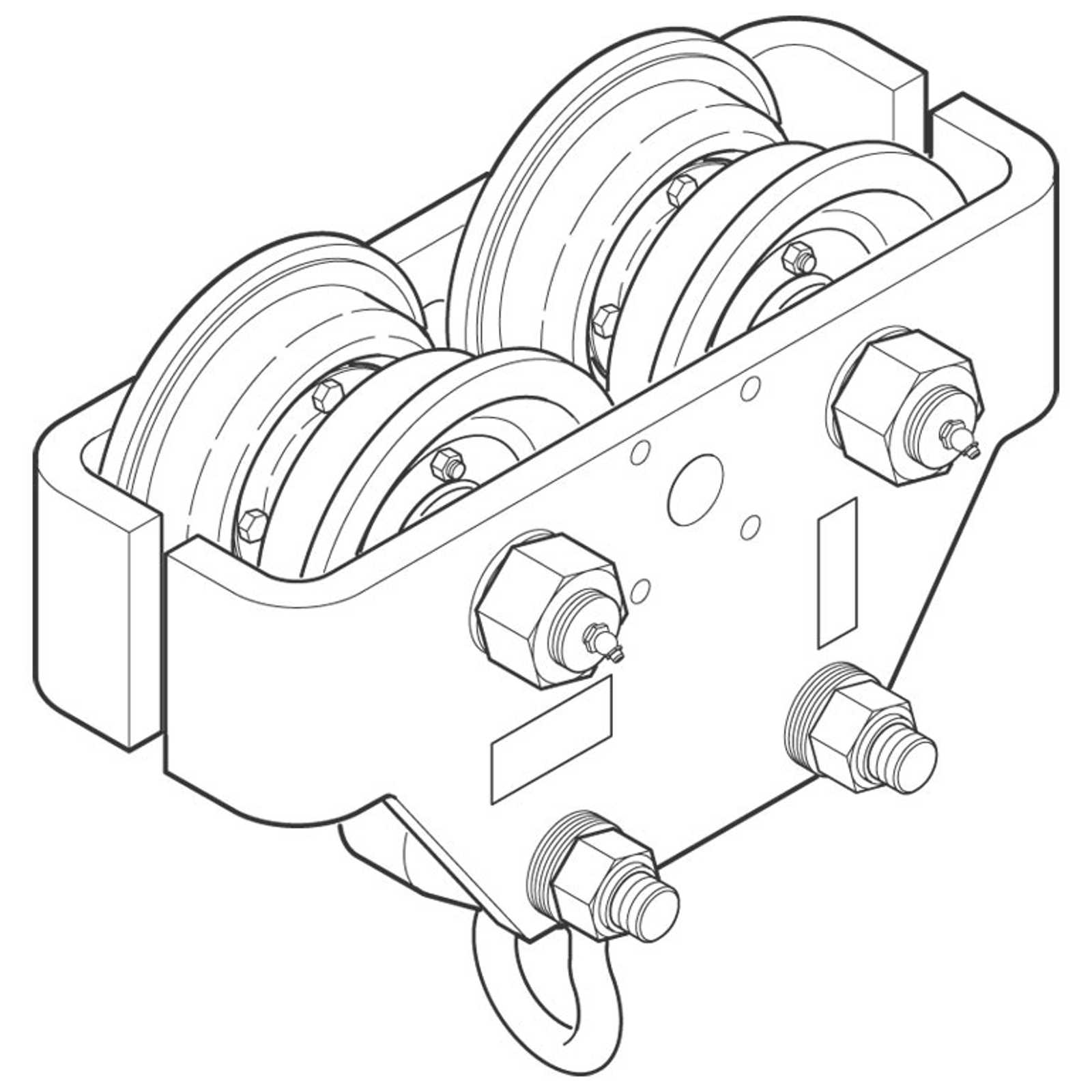

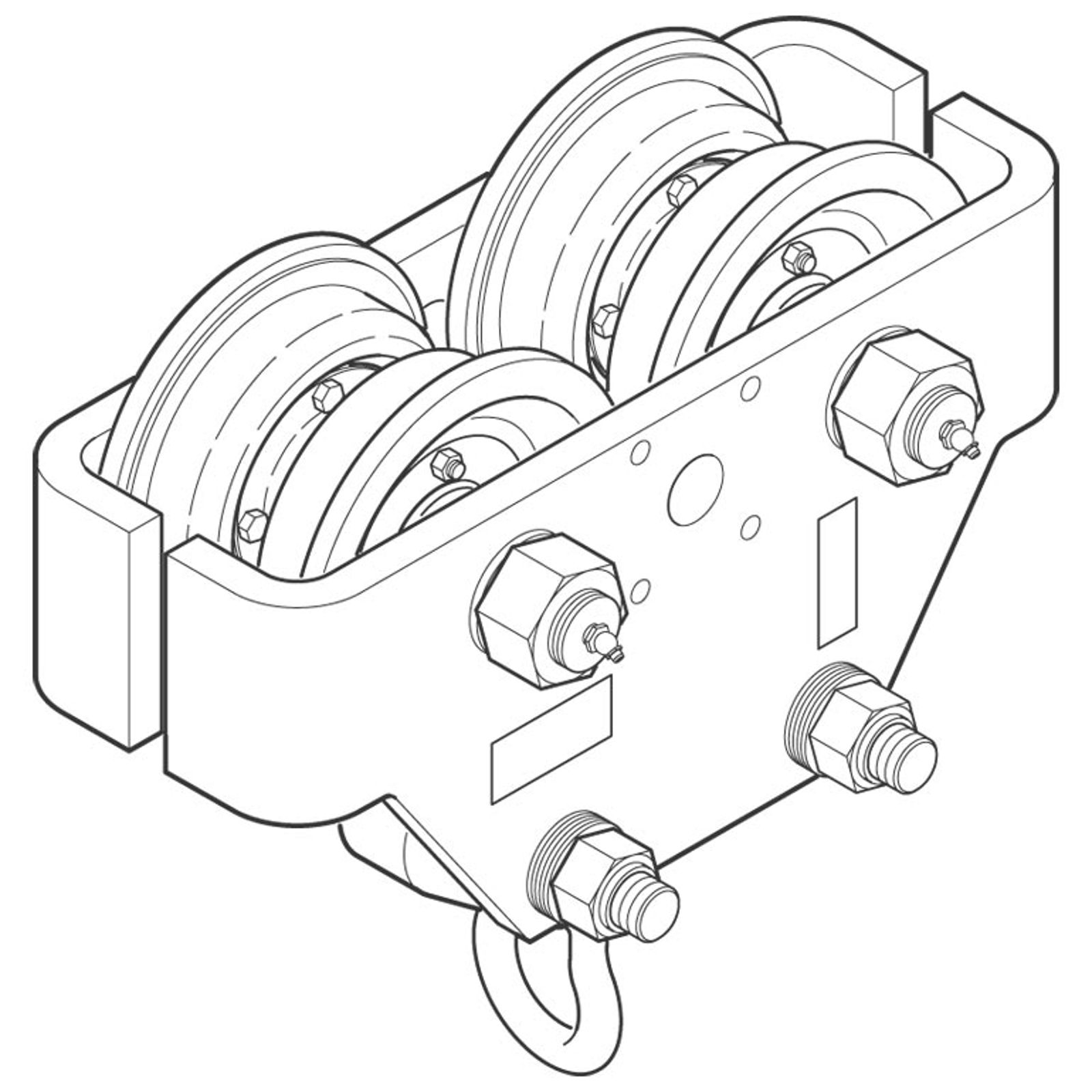

TIR132 | 157.0 (71.4) | 60.0 (1524.0) | 8.0 (203.2) | 4.3 - 7.3 (109.2 - 185.4) | 9900 - 13200 (4500 - 6000) |
