- Meets ANSI B30.16 for hoisting requirements - 5:1 safety factor (minimum).
- All steel construction.
- Universal wheels fit both flat and tapered beam flanges.
- Rail sweeps are integral with the side plates.
- Cast iron wheels roll easily on permanently greased sealed bearings.
- Tight turning radius.
- Standard 1 ton trolley fits 2-21/32 - 6 in. flange width.
Model Name | Weight, lbs (kg) | Minimum Curve Radius, in (mm) | Minimum Beam Height, in (mm) | Flange Adjustment, in (mm) | Capacity, lbs (kg) |
|---|---|---|---|---|---|

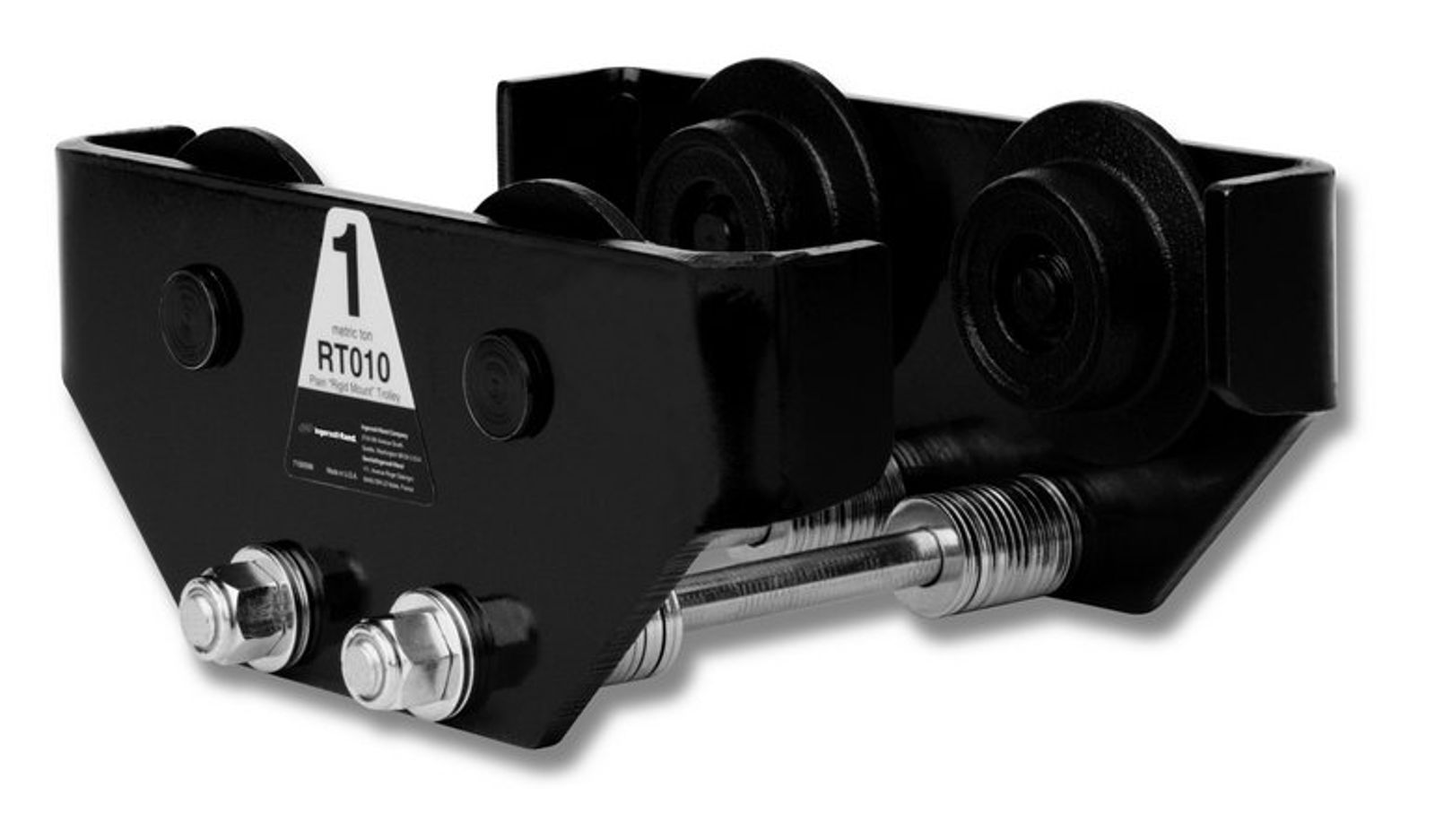

RT010 - Plain rigid | 31.0 (14.1) | 36.0 (914.4) | 5.0 (127.0) | 2.7 - 6.0 (68.6 - 152.4) | 550 - 2200 (250 - 1000) |
