- The 5:1 design factor allows the PT Series to be used with both manual or powered hoists. Meets pertinent U.S. (ASME/ANSI and CMAA), Canadian and European standards.
- The side plates, including the rail sweeps/drop stops, are made of cold formed steel for strength, durability and even load distribution.
- The wheel axles are 'rivet-locked' in place so they will not come loose. They are NOT knurled, welded, or modified bolts.
- The wheels are cast iron. The 'universal' tread fits either flat or tapered beams.
- Wheels run on sealed, 'lubed-for-life' ball bearings. Smoother rolling with less effort and...less maintenance.
- Wide hanger shaft assemblies allow the PT Series trolley to fit almost any I-Beam, H-Beam or patented track beam up to 8.06 in./205 mm width.
- PT Series trolley hanger shafts are designed to accept all hoist brands. The hanger shaft has a 'squared out' recess to accept round or squared hook shapes.
- The trolleys are painted black for universal coordination.
- Shaft extension kits allow standard trolleys to fit almost any S-beam or patented track beam - flange adjustment 8'-13'. Please click on 'catalog section' for details.
Model Name | Weight, lbs (kg) | Minimum Curve Radius, in (mm) | Minimum Beam Height, in (mm) | Flange Adjustment, in (mm) | Capacity, lbs (kg) |
|---|---|---|---|---|---|
PT005-8 | 19.7 (9.0) | 36.0 (914.4) | 4.0 (101.6) | 2.6 - 8.0 (66.0 - 203.2) | 1100 (500) |

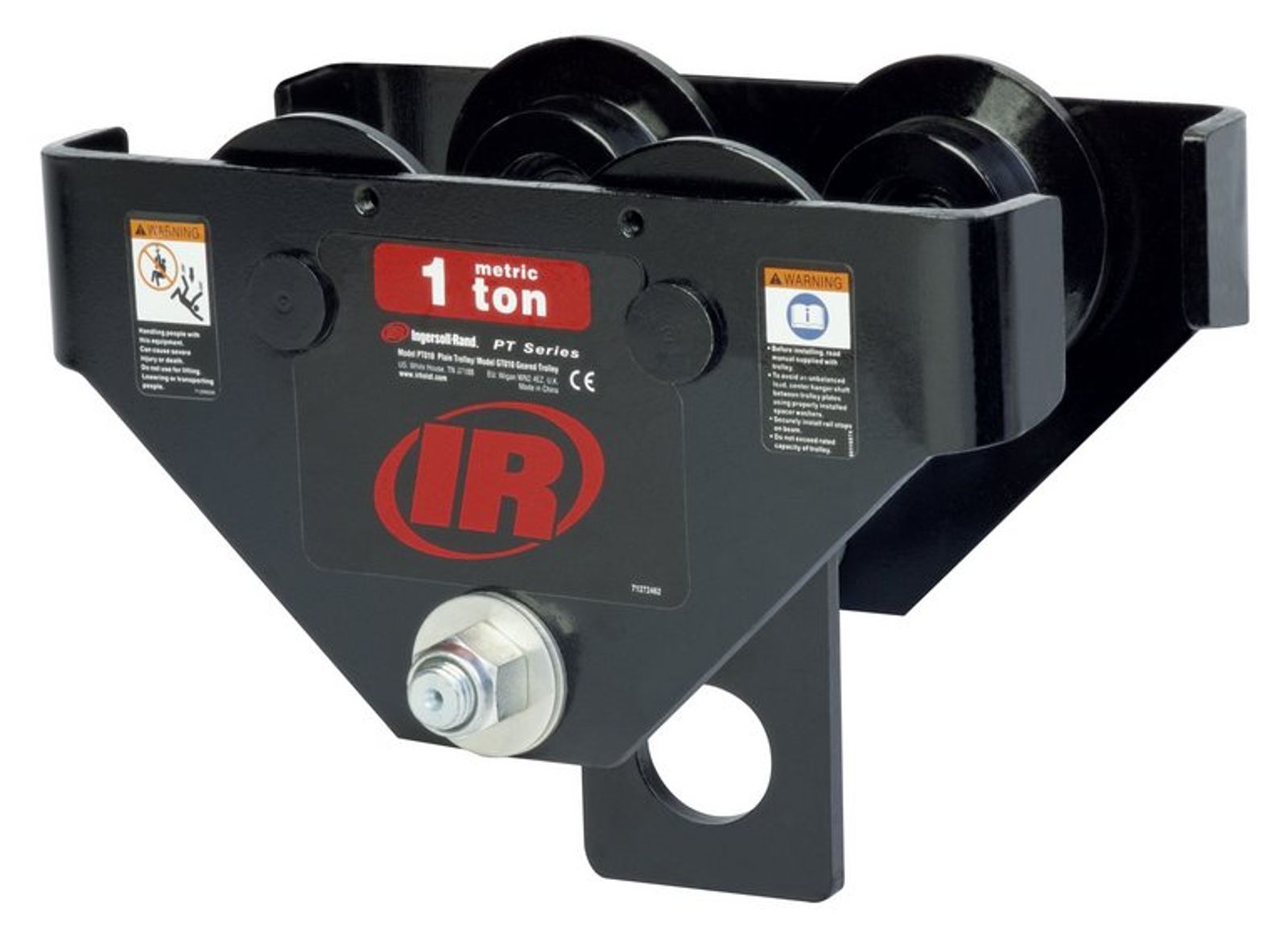

PT010-8 | 30.7 (14.0) | 36.0 (914.4) | 5.0 (127.0) | 3.0 - 8.0 (76.2 - 203.2) | 2200 (1000) |
PT020-8 | 60.5 (27.5) | 48.0 (1219.2) | 6.0 (152.4) | 3.3 - 8.0 (83.8 - 203.2) | 4400 (2000) |
PT030-8 | 73.2 (33.3) | 42.0 (1066.8) | 7.0 (177.8) | 3.9 - 8.0 (99.1 - 203.2) | 6600 (3000) |
PT050-8 | 110.3 (50.1) | 60.0 (1524.0) | 8.0 (203.2) | 4.6 - 8.0 (116.8 - 203.2) | 11000 (5000) |
PT100-12 | 205.0 (93.2) | 83.0 (2108.2) | 10.0 (254.0) | 7.0 - 13.0 (177.8 - 330.2) | 22000 (10000) |
