- The 5:1 design factor allows use with both manual or powered hoists. Meets pertinent U.S. (ASME/ANSI and CMAA), Canadian and European standards.
- The side plates, including the rail sweeps/drop stops, are made of cold formed steel for strength, durability and even load distribution.
- The wheel axles are 'rivet-locked' in place so they will not come loose. They are NOT knurled, welded, or modified bolts.
- The wheels are cast iron. The 'Universal' tread fits either flat or tapered beams.
- Wheels run on sealed, 'Lube-for-Life' ball bearings. Smoother rolling with less effort and maintenance.
- Wide hanger shaft assemblies allow the standard trolley's to fit almost any I-Beam, H-Beam or patented track beam. Extension shaft kits are stocked.

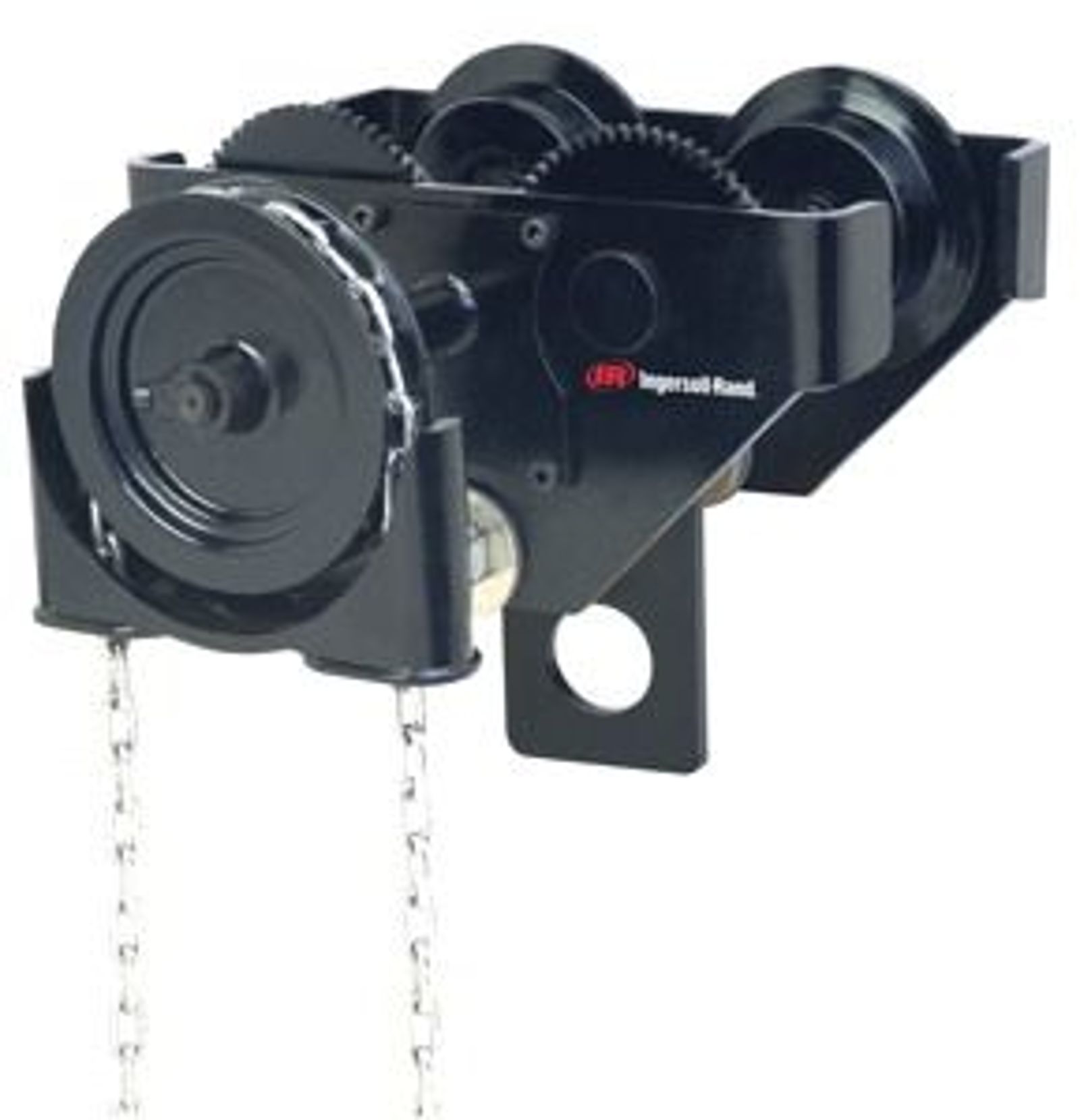

- Additional gearing in the 20 ton trolley allows operation by one hand chain.
- The trolley's are painted black for universal coordination.
- Shaft extension kits allow standard trolleys to fit almost any S-beam or patented track beam - flange adjustment 8'-13'. Please click on 'catalog section' for details.
Model Name | Weight, lbs (kg) | Minimum Curve Radius, in (mm) | Minimum Beam Height, in (mm) | Flange Adjustment, in (mm) | Capacity, lbs (kg) |
|---|---|---|---|---|---|
GT010-8-10 | 43.7 (19.9) | 36.0 (914.4) | 5.0 (127.0) | 3.0 - 8.0 (76.2 - 203.2) | 2200 (1000) |
GT020-8-10 | 73.5 (33.4) | 48.0 (1219.2) | 6.0 (152.4) | 3.3 - 8.0 (83.8 - 203.2) | 4400 (2000) |
GT030-8-10 | 86.2 (39.2) | 42.0 (1066.8) | 7.0 (177.8) | 3.9 - 8.0 (99.1 - 203.2) | 6600 (3000) |
GT050-8-10 | 123.3 (56.0) | 60.0 (1524.0) | 8.0 (203.2) | 4.6 - 8.0 (116.8 - 203.2) | 11000 (5000) |
GT100-12-10 | 227.0 (103.2) | 83.0 (2108.2) | 10.0 (254.0) | 7.0 - 13.0 (177.8 - 330.2) | 22000 (10000) |
GT200-12 | 540.0 (245.5) | 138.0 (3505.2) | 12.0 (304.8) | 7.0 - 13.0 (177.8 - 330.2) | 44000 (20000) |
