- Quick installation by hand
- Low-headroom design adjusts to fit a wide range of flat or tapered beams
- Meets ASME B30.16 for use with powered or manual hoists
- Each unit is serialized, supplied with a test certificate and manual
- Metric rated for vertical lifting or in-line pulling at 2200 lbs (1000 kg) per ton

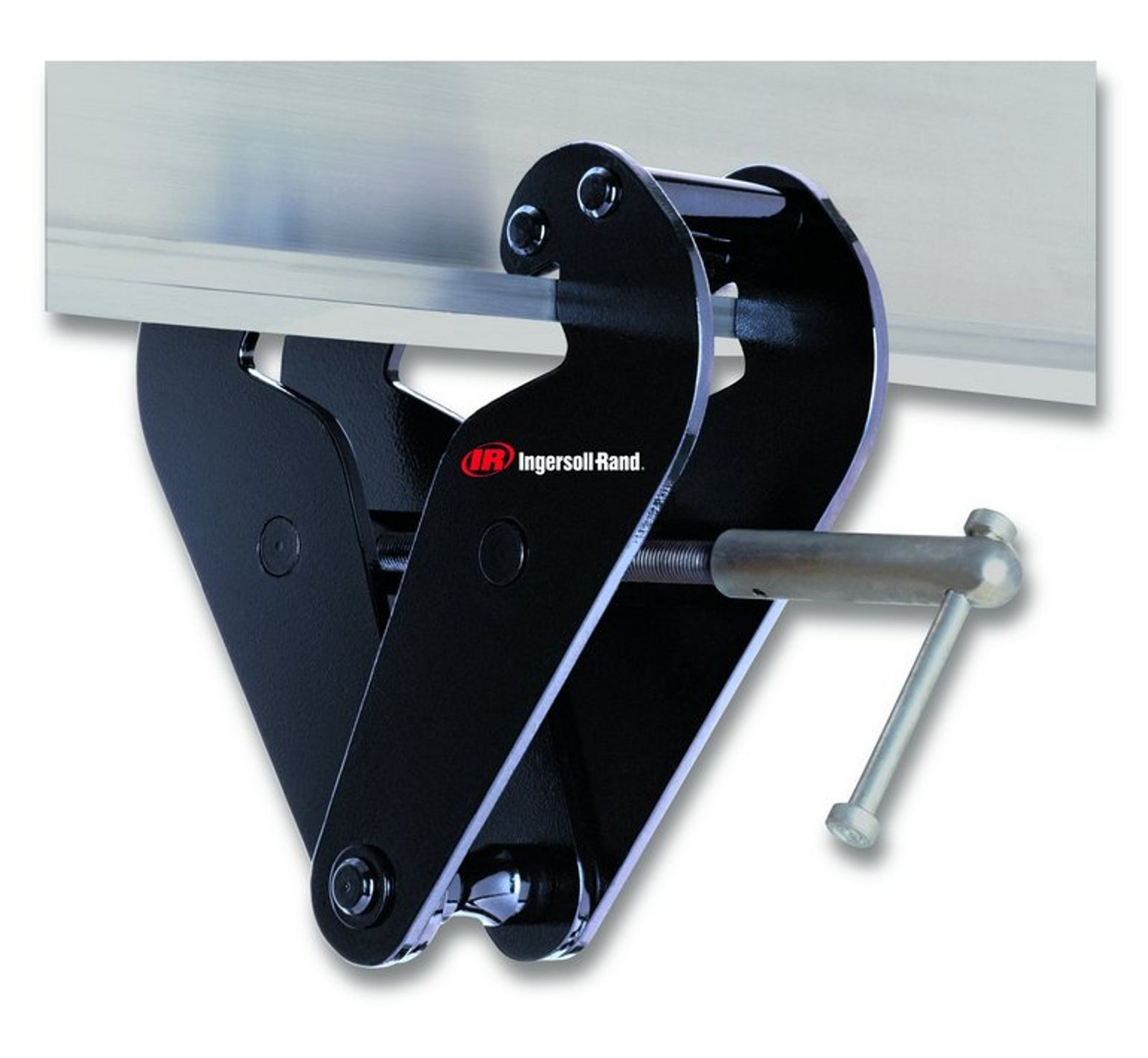

1-10 metric ton Capacity Beam Clamps provide a temporary or permanent mount to a wide range of tapered or flat beams. They are the ideal rigging device for lifting, pulling or suspending loads. These units have been designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting ASME B30.16 and ASME B30.7. Quick and simple installation is achieved without tools. Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom. The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.
Model Name | Beam width A, in (mm) | Net Weight, lbs (kg) | Headroom, in (mm) | Shipping Weight, lbs (kg) | Capacity metric tons |
|---|---|---|---|---|---|
BC-1 | 2.95 - 10.24 (75-260)) | 9.9 (4.5) | 4.01 - 5.91 (105 - 150) | 11 (5) | 1 |
BC-10 | 3.54 - 14.37 (90 - 365) | 35.2 (16) | 6.89 - 9.25 (175 - 235) | 36.3 (16.5) | 10 |
BC-2 | 2.95 - 10.24 (75 - 260) | 11.0 (5.0) | 4.01 - 5.91 (105 - 150) | 12.1 (5.5) | 2 |
BC-3 | 3.15 - 14.76 (80 - 375) | 23.1 (10.5) | 5.98 - 8.90 (152 - 226) | 24.2 (11.0) | 3 |
BC-5 | 3.15 - 14.76 (80 - 375) | 24.2 (11.0) | 5.98 - 8.90 (152 - 226) | 25.3 (11.5) | 5 |
