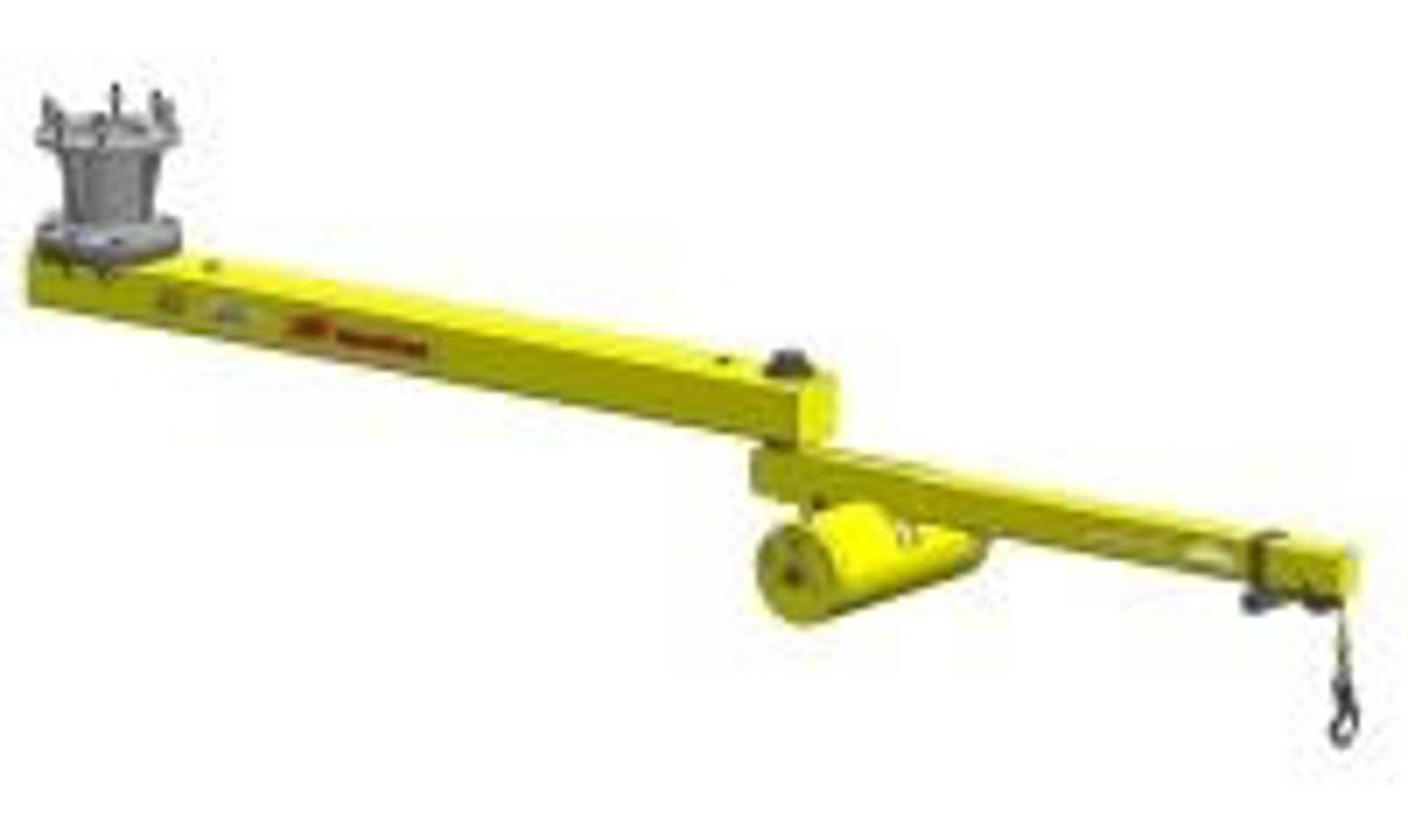

The 713 arm is very useful in areas with limited space. It incorporates an over-under boom design with two linkages and two pivots. One pivot is between the mounting point and main boom and the other is between the two booms. Each pivot can rotate 360 degrees, which allows the operator full coverage of the work area, including directly under the carriage. The balancer is mid-mounted and pulleys in the center section route the wire rope to the front of the arm. Customer will need to specify balancer type, mounting option, carriage type, arm length and balancer controls when ordering.
Articulating boom:
Integral balancer:

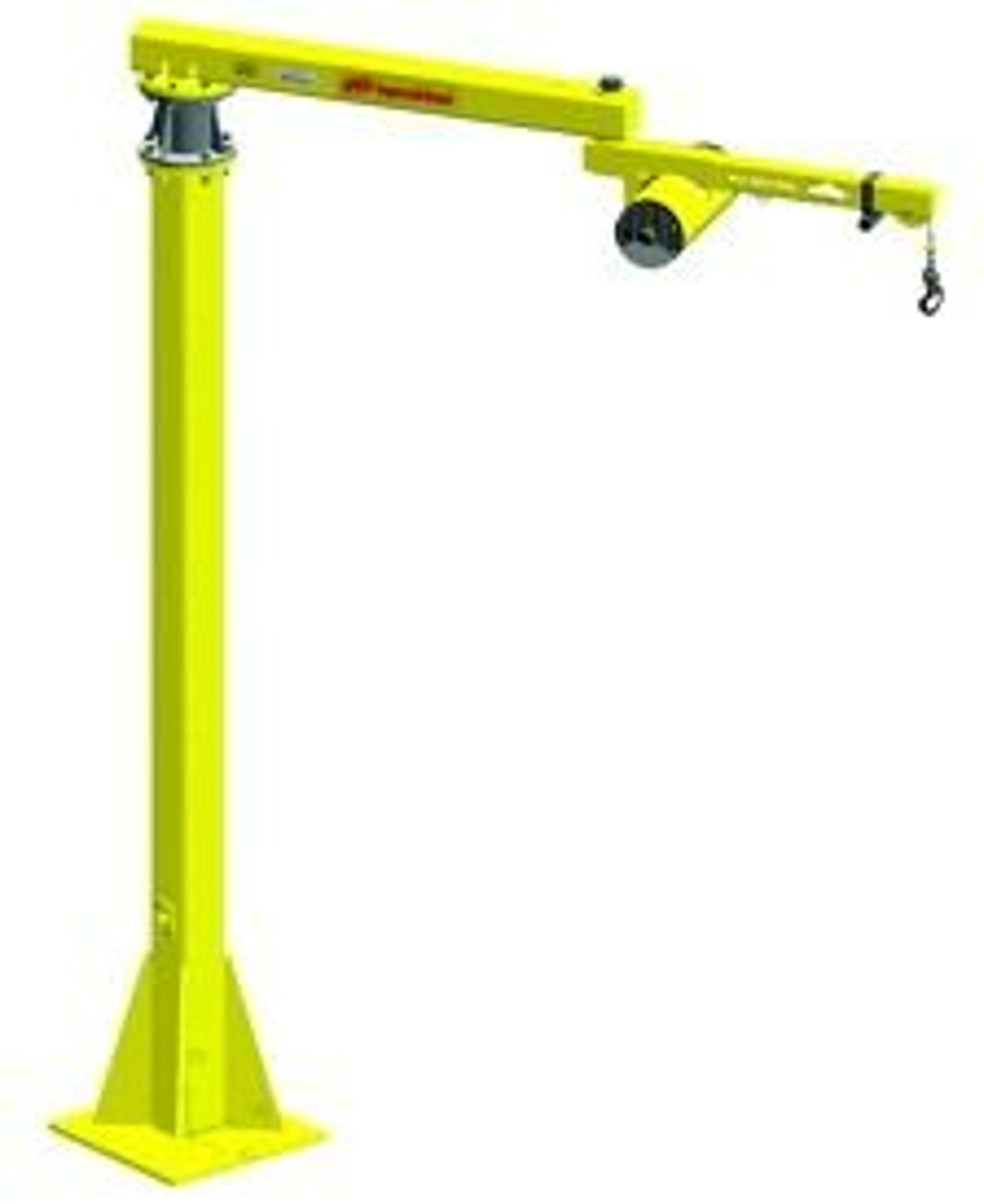

Flexible mounting:
Flexible reach:

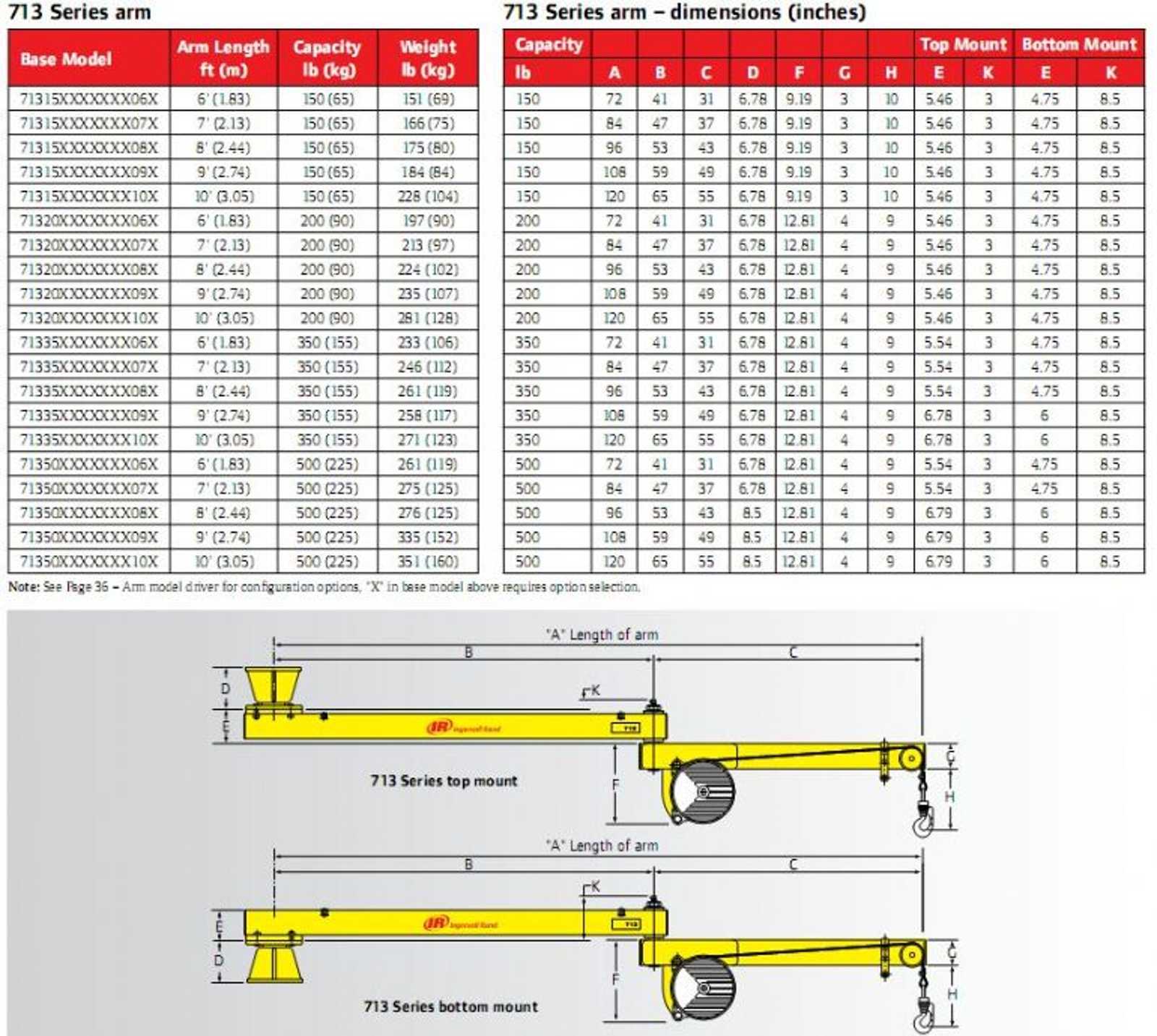

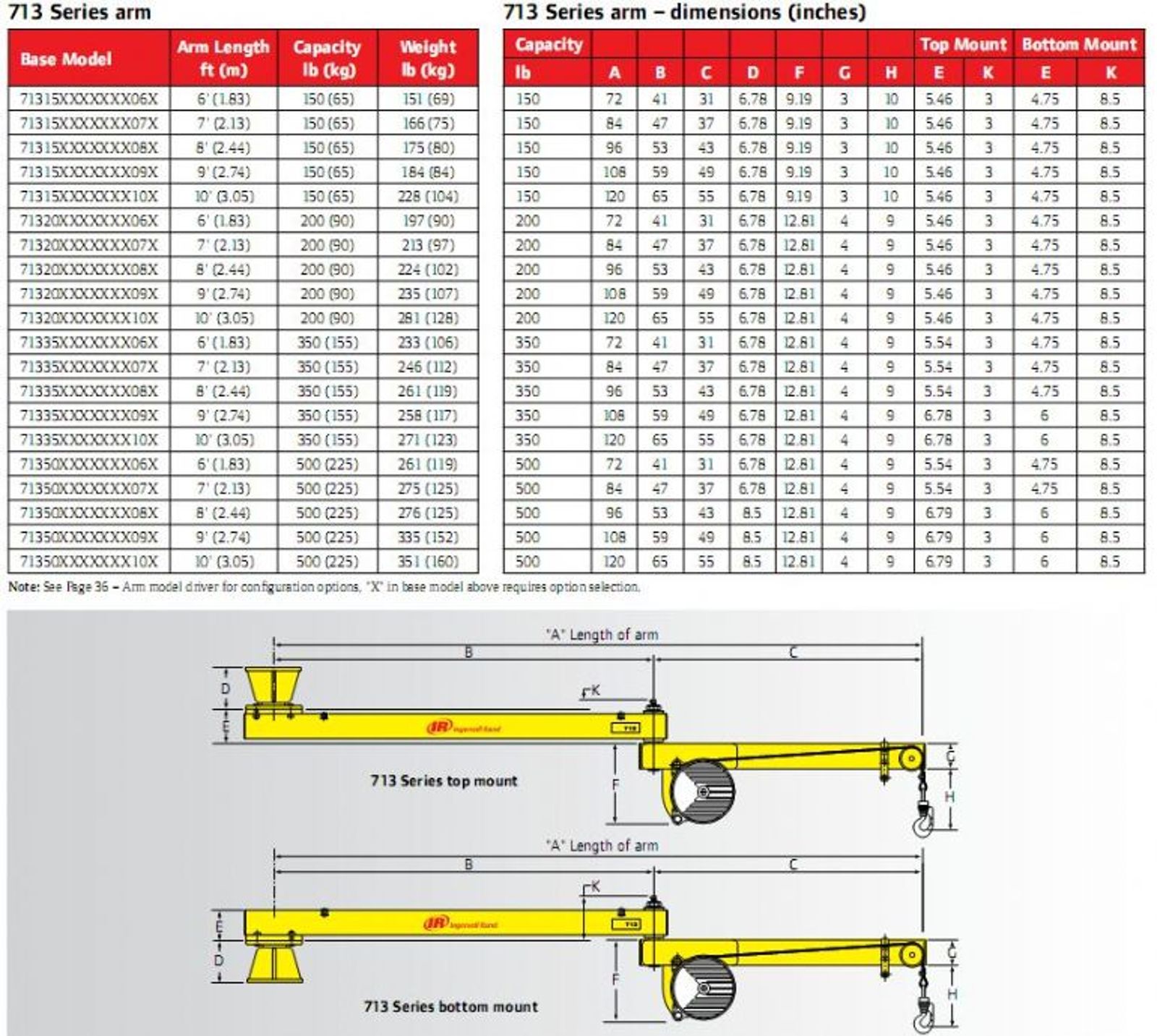

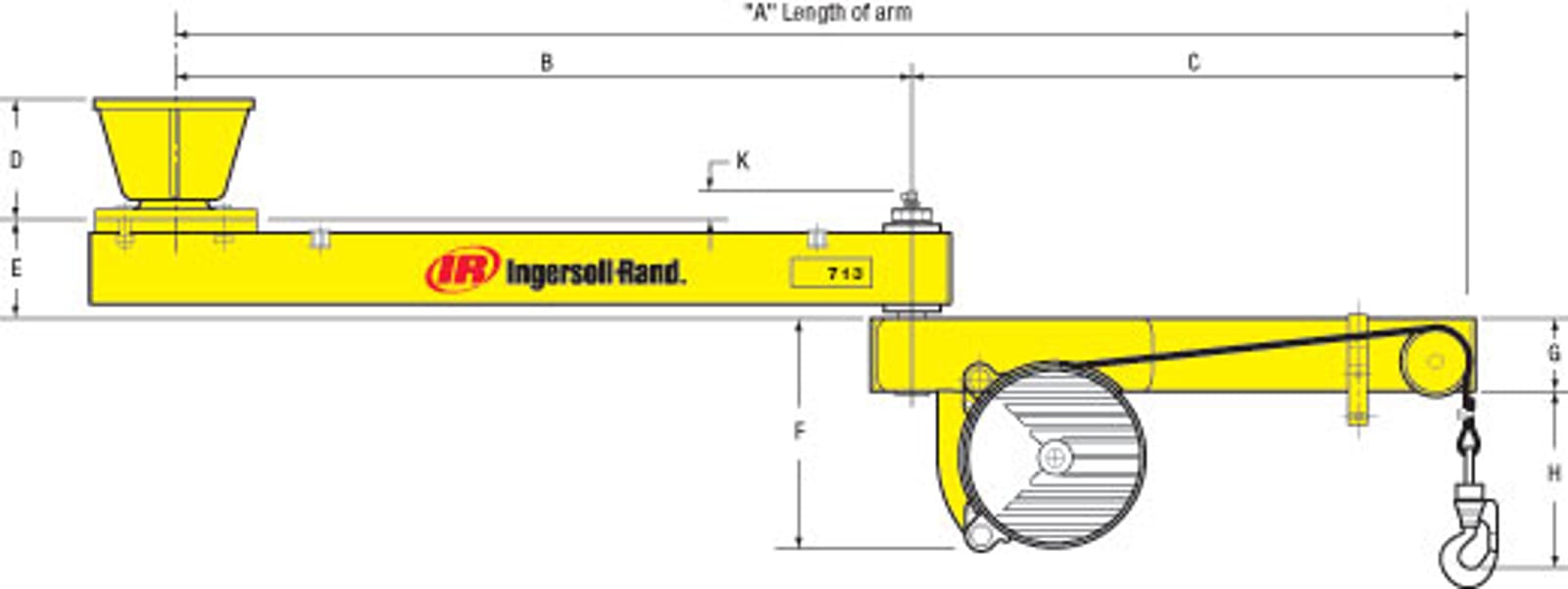

Model Name | Arm Length (m) | Weight (lbs) | Capacity (kg) | Capacity (lbs) | Weight (kg) | Arm Length (ft) |
|---|---|---|---|---|---|---|
71315XXXXXXX06X | 1.83 | 151 | 65 | 150 | 69 | 6 |
71315XXXXXXX07X | 2.13 | 166 | 65 | 150 | 75 | 7 |
71315XXXXXXX08X | 2.44 | 175 | 65 | 150 | 80 | 8 |
71315XXXXXXX09X | 2.74 | 184 | 65 | 150 | 84 | 9 |
71315XXXXXXX10X | 3.05 | 228 | 65 | 150 | 104 | 10 |
71320XXXXXXX06X | 1.83 | 197 | 90 | 200 | 90 | 6 |
71320XXXXXXX07X | 2.13 | 213 | 90 | 200 | 97 | 7 |
71320XXXXXXX08X | 2.44 | 224 | 90 | 200 | 102 | 8 |
71320XXXXXXX09X | 2.74 | 235 | 90 | 200 | 107 | 9 |
71320XXXXXXX10X | 3.05 | 281 | 90 | 200 | 128 | 10 |
71335XXXXXXX06X | 1.83 | 233 | 155 | 350 | 106 | 6 |
71335XXXXXXX07X | 2.13 | 246 | 155 | 350 | 112 | 7 |
71335XXXXXXX08X | 2.44 | 261 | 155 | 350 | 119 | 8 |
71335XXXXXXX09X | 2.74 | 258 | 155 | 350 | 117 | 9 |
71335XXXXXXX10X | 3.05 | 271 | 155 | 350 | 123 | 10 |
71350XXXXXXX06X | 1.83 | 261 | 225 | 500 | 119 | 6 |
71350XXXXXXX07X | 2.13 | 275 | 225 | 500 | 125 | 7 |
71350XXXXXXX08X | 2.44 | 276 | 225 | 500 | 125 | 8 |
71350XXXXXXX09X | 2.74 | 335 | 225 | 500 | 152 | 9 |
71350XXXXXXX10X | 3.05 | 351 | 225 | 500 | 160 | 10 |
