700C Series Arm Systems

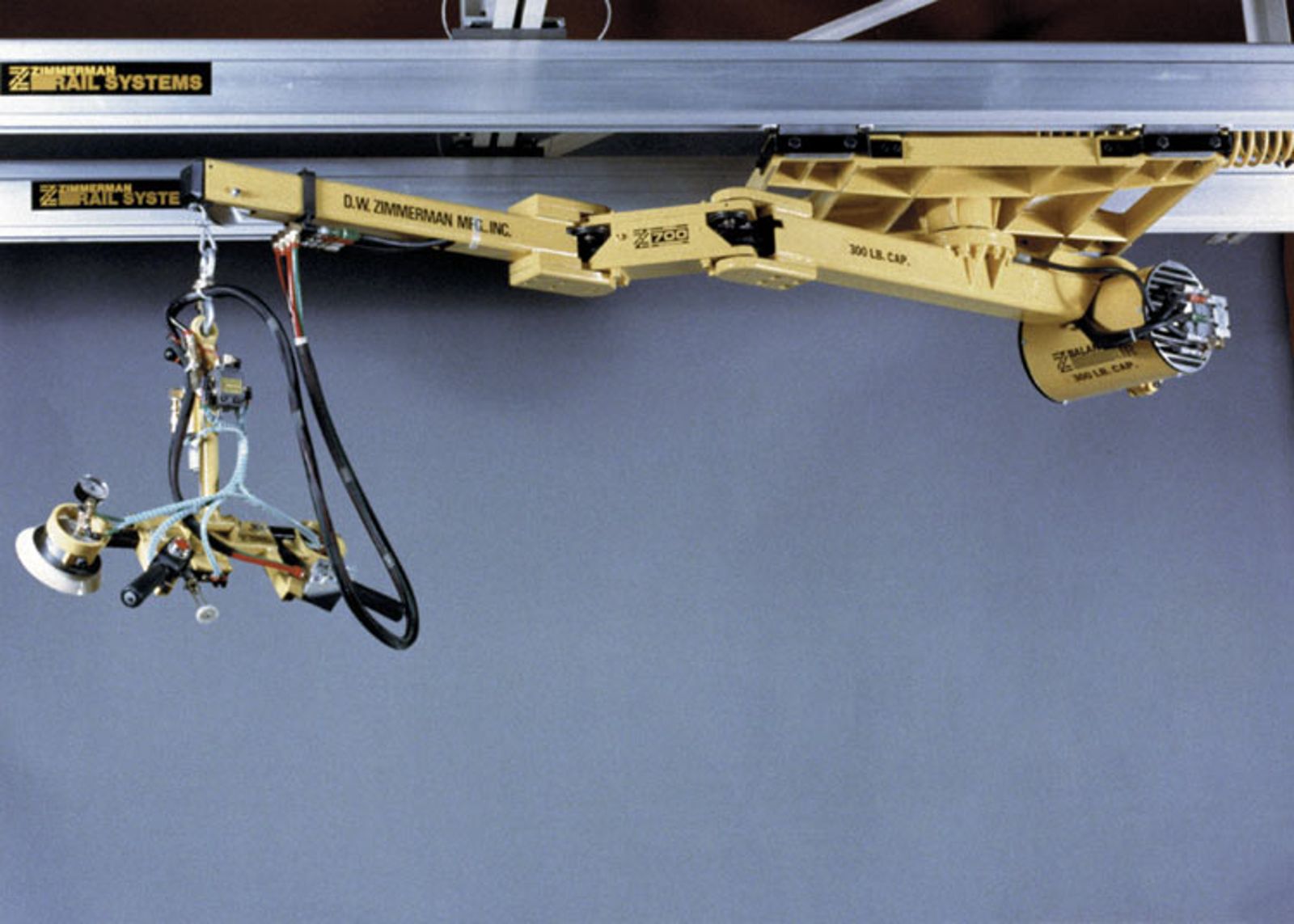

The 700C Arm is a “banjo" arm consisting of three connecting linkages which allows the boom/balancer combination to cover a large area. The arm can fold into itself and articulate 270 degrees to reach around columns, posts or other interference points. The 700C has a short stack-up, which is useful for low headroom applications because it minimizes interference with the operator. The balancer is mounted at the rear of the arm and pulleys in the center section route the wire rope to the front of the arm. Customer will need to specify balancer type, mounting option, carriage type, arm length and balancer controls when ordering.

Articulating boom:

  • Two-point pivot providing 270º articulation

Integral Balancer:

  • Integrated 150,200, 350, or 500lb balancer

Low inertia:

  • Rear-mount balancer offers lowest rotational inertia of all models, reducing operator fatigue

Low profile:

  • Short stack-up for low headroom applications

Flexible mounting:

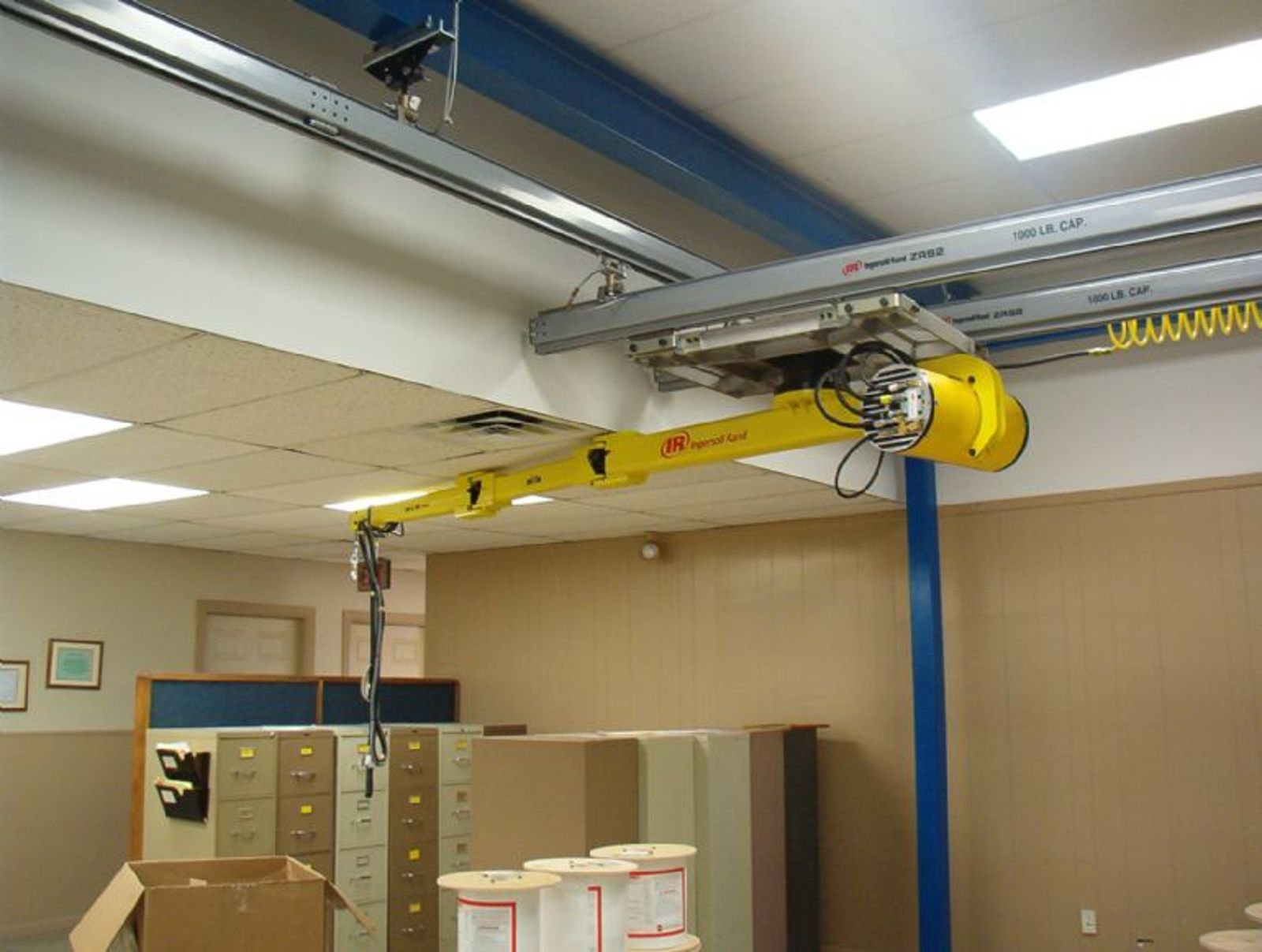

  • Carriage mounted for overhead rail transfer applications or column mounted for stationary applications

Flexible reach:

  • Arm lengths of 6 ft (1.83 m), 7 ft (2.13 m), 8 ft (2.44 m), 9 ft (2.74 m), and 10 ft (3.05 m) available

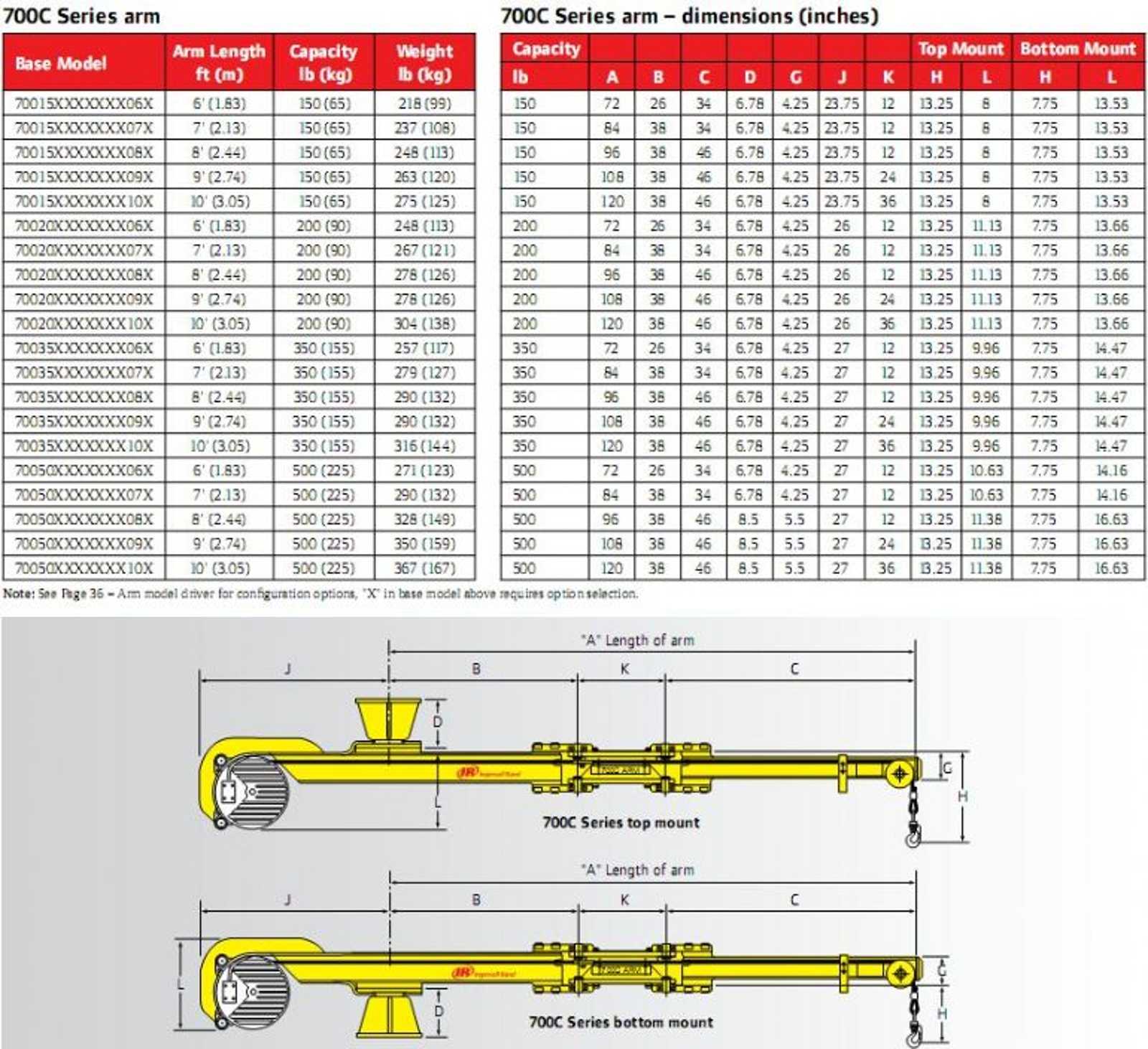

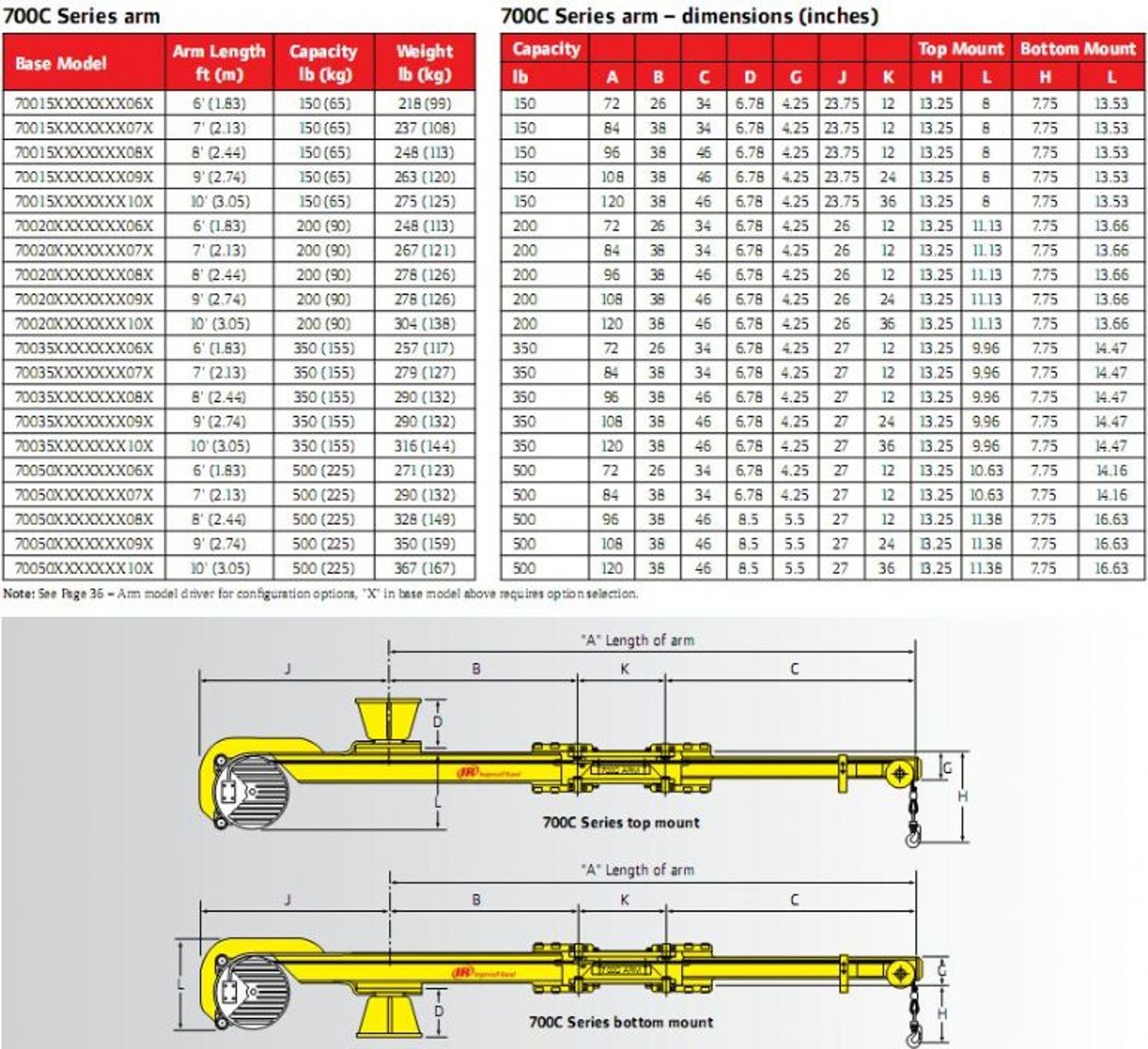

ModelName

Arm Length m

Weight LBS

Capacity kg

Capacity lbs

Weight kg

Arm Length ft

70015XXXXXXX06X

1.83

218

65

150

99

6

70015XXXXXXX07X

2.13

237

65

150

108

7

70015XXXXXXX08X

2.44

248

65

150

113

8

70015XXXXXXX09X

2.74

263

65

150

120

9

70015XXXXXXX10X

3.05

275

65

150

125

10

70020XXXXXXX06X

1.83

248

90

200

113

6

70020XXXXXXX07X

2.13

267

90

200

121

7

70020XXXXXXX08X

2.44

278

90

200

126

8

70020XXXXXXX09X

2.74

278

90

200

126

9

70020XXXXXXX10X

3.05

304

90

200

138

10

70035XXXXXXX06X

1.83

257

155

350

117

6

70035XXXXXXX07X

2.13

279

155

350

127

7

70035XXXXXXX08X

2.44

290

155

350

132

8

70035XXXXXXX09X

2.74

290

155

350

132

9

70035XXXXXXX10X

3.05

316

155

350

144

10

70050XXXXXXX06X

1.83

271

225

500

123

6

70050XXXXXXX07X

2.13

290

225

500

132

7

70050XXXXXXX08X

2.44

328

225

500

149

8

70050XXXXXXX09X

2.74

350

225

500

159

9

70050XXXXXXX10X

3.05

367

225

500

167

10
