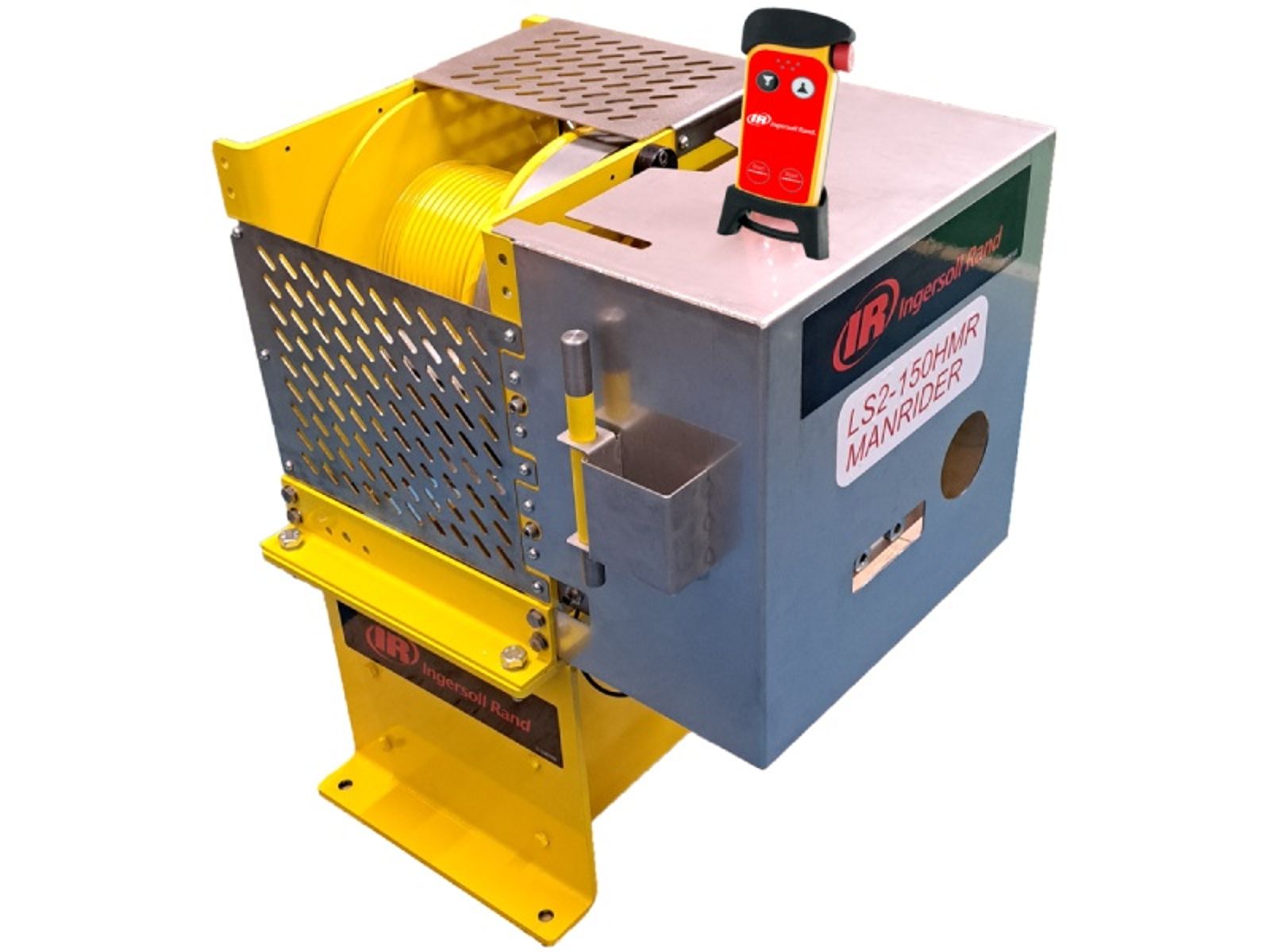

LS2-150HMR Onshore Hydraulic Man Rider® Winch

The LS2-150HMR Hydraulic Man Rider® Winch is engineered to deliver the highest level of safety for personnel lifting operations on oil land rigs. Equipped with a handheld wireless remote, it allows users to control their own movement with precision and autonomy.

Standard safety features include Dual automatic braking systems, Emergency stop function, Emergency lowering capability and Adjustable limit switches.

Designed with a 10:1 safety factor and a 24:1 drum-to-wire rope ratio, the LS2-150HMR meets or exceeds the most stringent industry standards for safe lifting operations

Request Service, Parts, or Support

Durability:

Stainless Steel Enclosure protects moving parts from the elements
10:1 Design Factor for extra-long life
24:1 Drum to wire rope diameter ratio

Safety:

Emergency stop
Automatic Multi-Disc Brake and Automatic Drum Brake provide the safety of two independent braking systems
Built-in limit switches prevent raising or lowering past set limits
Emergency lowering system

Performance:

Helical Grooved Drum assists with wire rope spooling
Press Roller assists with wire rope spooling
High Efficiency planetary gear box

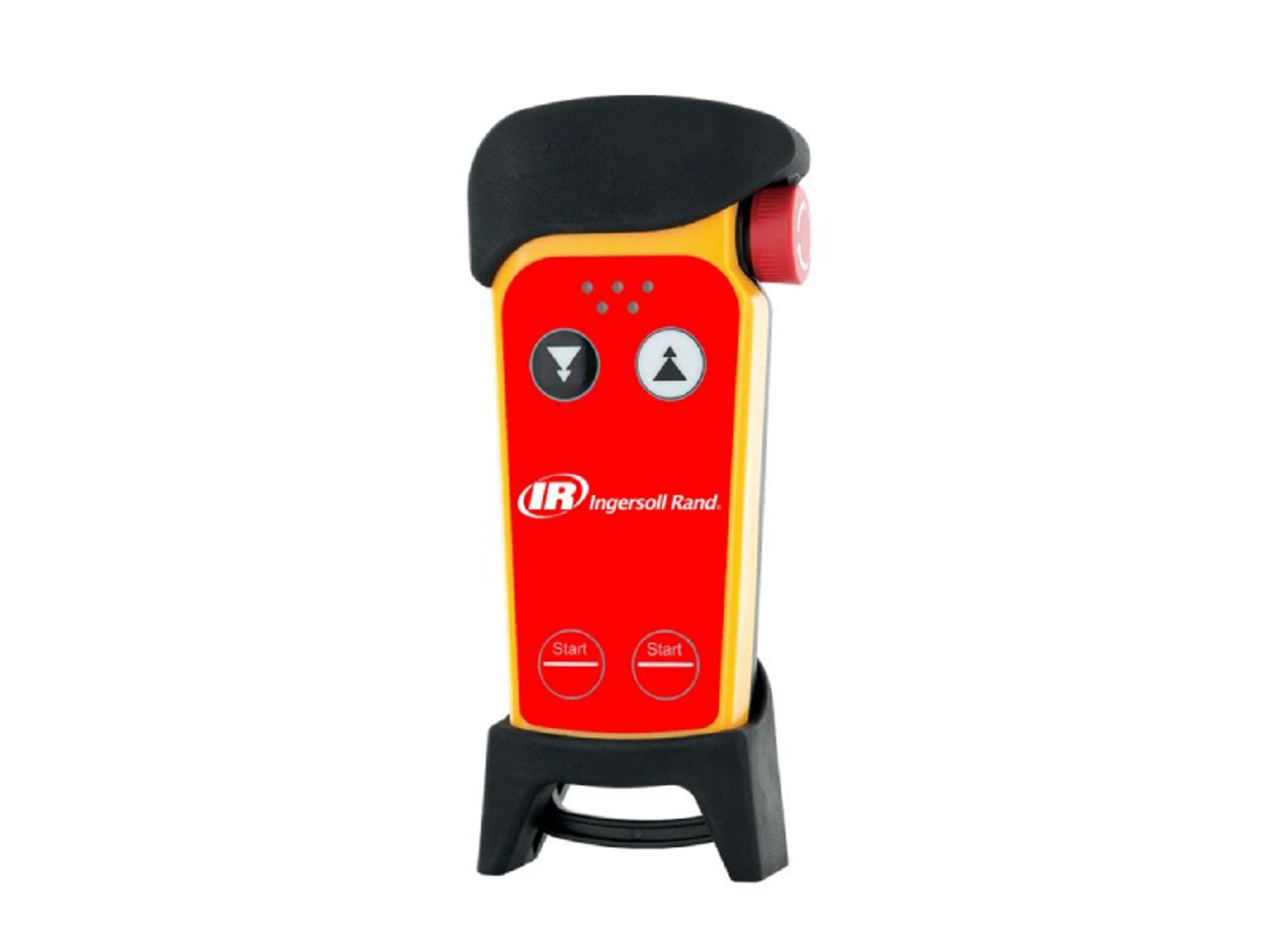

Hand-held wireless control

Model	LS2-150HMR
Line Pull Capacity Top Layer	150 kg (330 lb)
Rated Line Speed	10.5 m/min (35 fpm)
Max Flow with Rated Load	10 l/min (2.65 gal/min)
Operating Pressure	50 bar (725 psi)
Wireless Control Power Supply	240V, single phase
Min. Rope Breaking Force	150 kN (3,300 lbs)
Recommended Rope Diameter	8 mm (5/16 in)
Drum Working Capacity	120 m (394 ft)
Total Drum Storage Capacity	170 m (557 ft)
Weight without Wire Rope	200 kg (440 lb)

General Performance based on a 10:1 design factor
