- ATEX deignation of II 2 GD c IIB 85°C X
- Reinforced double pawl brake with large diameter pawl springs for a highly dependable brake system
- Full bearing construction on load sprockets and pinion shaft for reduced pull effort and longer life
- Copper plated hooks and guide rollers for spark resistance
- Premium VH grade chain with inorganic zinc coating for superior rust prevention
- Stainless steel hand chain and fasteners for maximum life in harsh environments
- Dip spin and powder coatings on critical components to reduce required maintenance

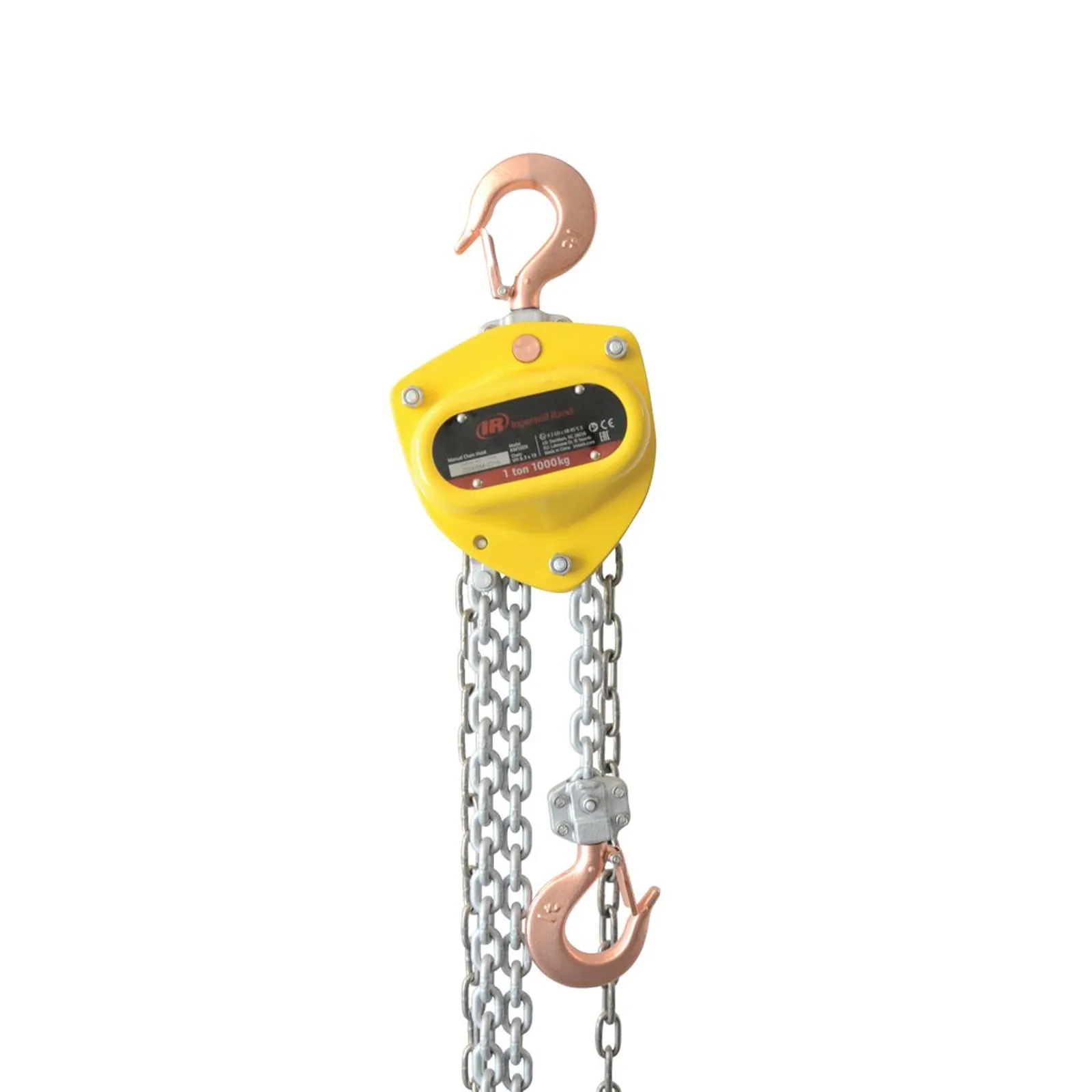

1/2 - 20 metric ton lifting capacity. Ingersoll Rand’s KMX premium manual chain hoists are engineered to meet the stringent standards for spark resistance according to the European Explosion Protection Regulation, or ATEX. In addition, the KMX Hoist Series offer a new level of corrosion resistance designed for harsh and potentially hazardous environments.
MODEL | Chain falls | Capacity (metric tons) | Shipping Weight w/ 10 lift, lbs (kg) | Pull to Lift Rated Load, lbs (kg) | Chain wt. - 1 ft. of lift lbs. |
|---|---|---|---|---|---|
KM050X | 1 | 0.5 | 24.8 (11.25) | 51.3 (23.2) | 1.01 (0.46 kg/ft) |
KM100X | 1 | 1 | 28.4 (12.9) | 63.8 (29) | 1.21 (0.55 kg/ft) |
KM150X | 1 | 1.5 | 36 (16.35) | 77.1 (35) | 1.41 (0.64 kg/ft) |
KM200X | 1 | 2 | 46.3 (21) | 79.4 (36) | 1.55 (0.7 kg/ft) |
KM300X | 1 | 3 | 63.7 (28.9) | 82.7 (37.5) | 1.55 (0.7 kg/ft) |
KM500X | 2 | 5 | 93.7 (42.5) | 74.9 (34) | 2.96 (1.34 kg/ft) |
KM750X | 3 | 7.5 | 138.9 (63) | 77.1 (35) | 4.17 (1.89 kg/ft) |
KM1000X | 4 | 10 | 231.2 (104.9) | 79.4 (36) | 5.31 (2.41 kg/ft) |
KM2000X | 8 | 20 | 481.9 (218.6) | 79.4x2 (36x2) | 10.62 (4.82 kg/ft) |
