- M5 or M4 Duty cycle rating (2m/M5 or 1Am/M4 FEM/ISO) designed for both industrial and manufacturing applications
- Built-on motor with cooling fins and fan wheel for reduction in operating temperature and disassembly time
- Modular design with interchangeable gear box for reduced maintenance time, parts and complexity
- Extremely lightweight, compact profile allows for faster, safer installation and disassembly; ideal for mobile applications

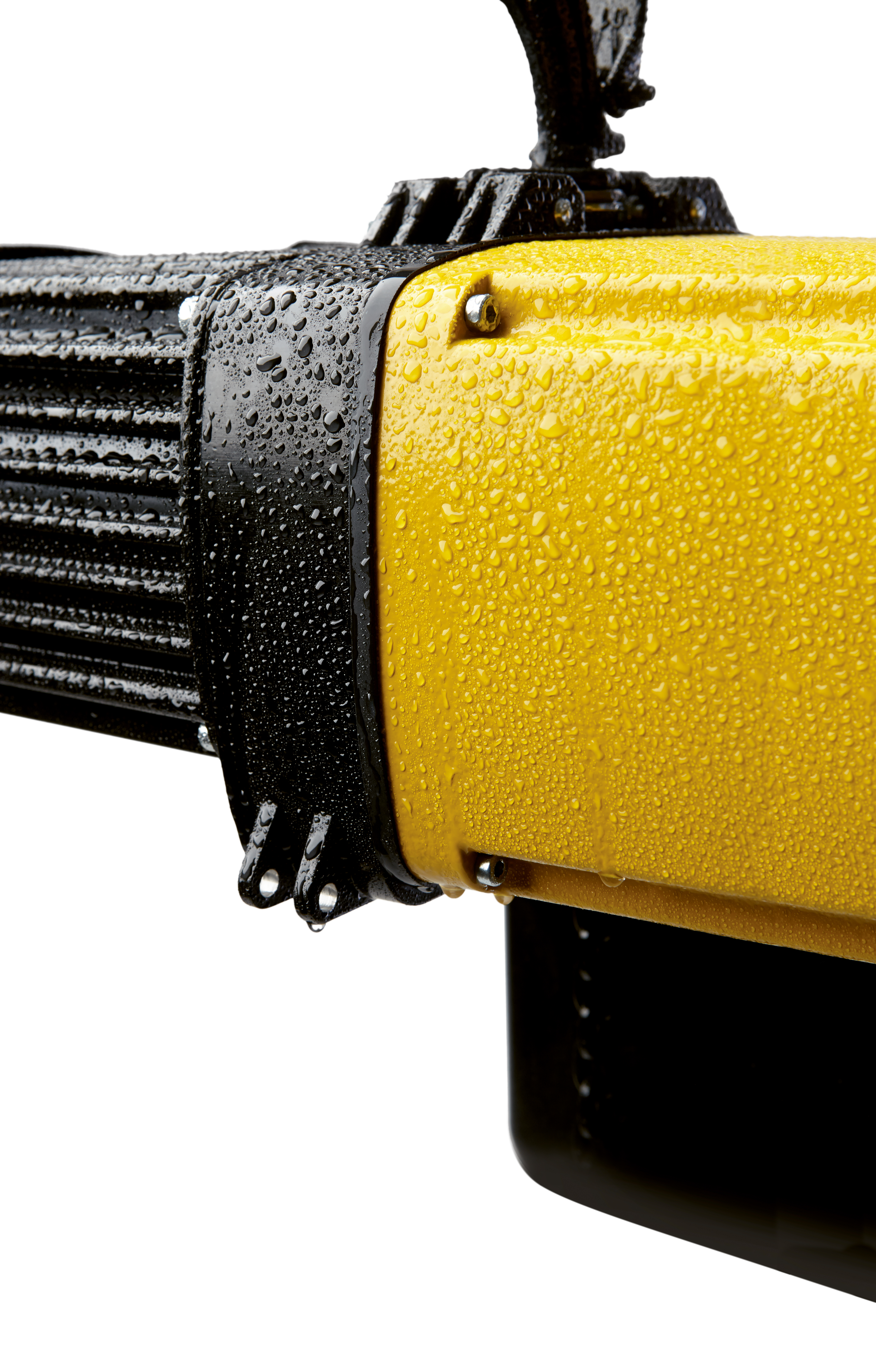

- IP65 rating with built in drains provides water resistance and dust tight protection; great for outdoor use
- New custom chain profile with magnesium phosphate coating for corrosion resistance and extended life
- 3-stage helical gearing for quiet operation
- Closed gearbox with permanent lubrication
- Hook mount, lug mount, push/pull trolley, and motorized trolley upper suspensions available
- Custom configurations available (ATEX certified, food grade, tandem, VFD, wind turbine custom, etc)
- 5:1 safety rating
- Backed by 3 year warranty

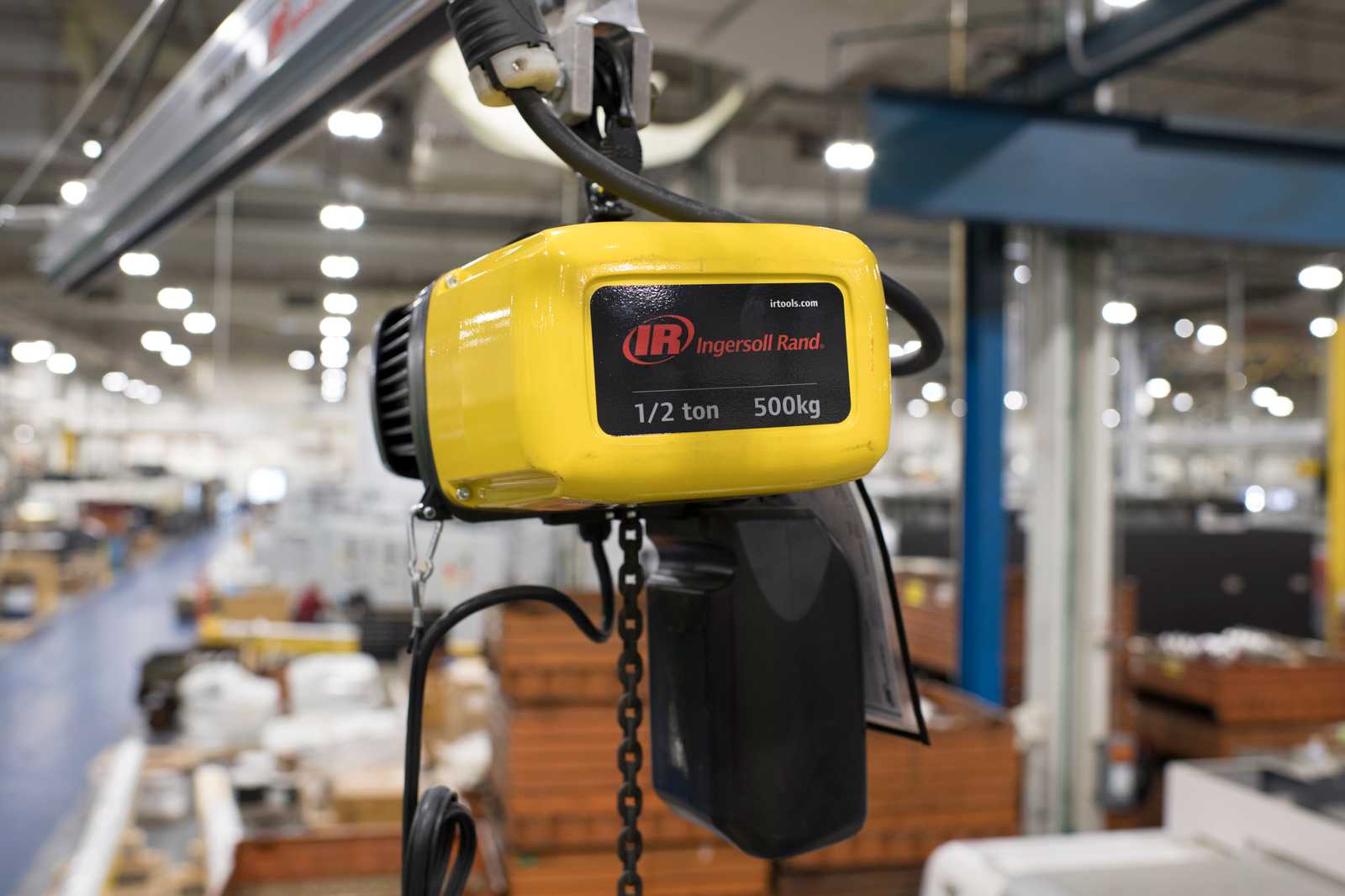

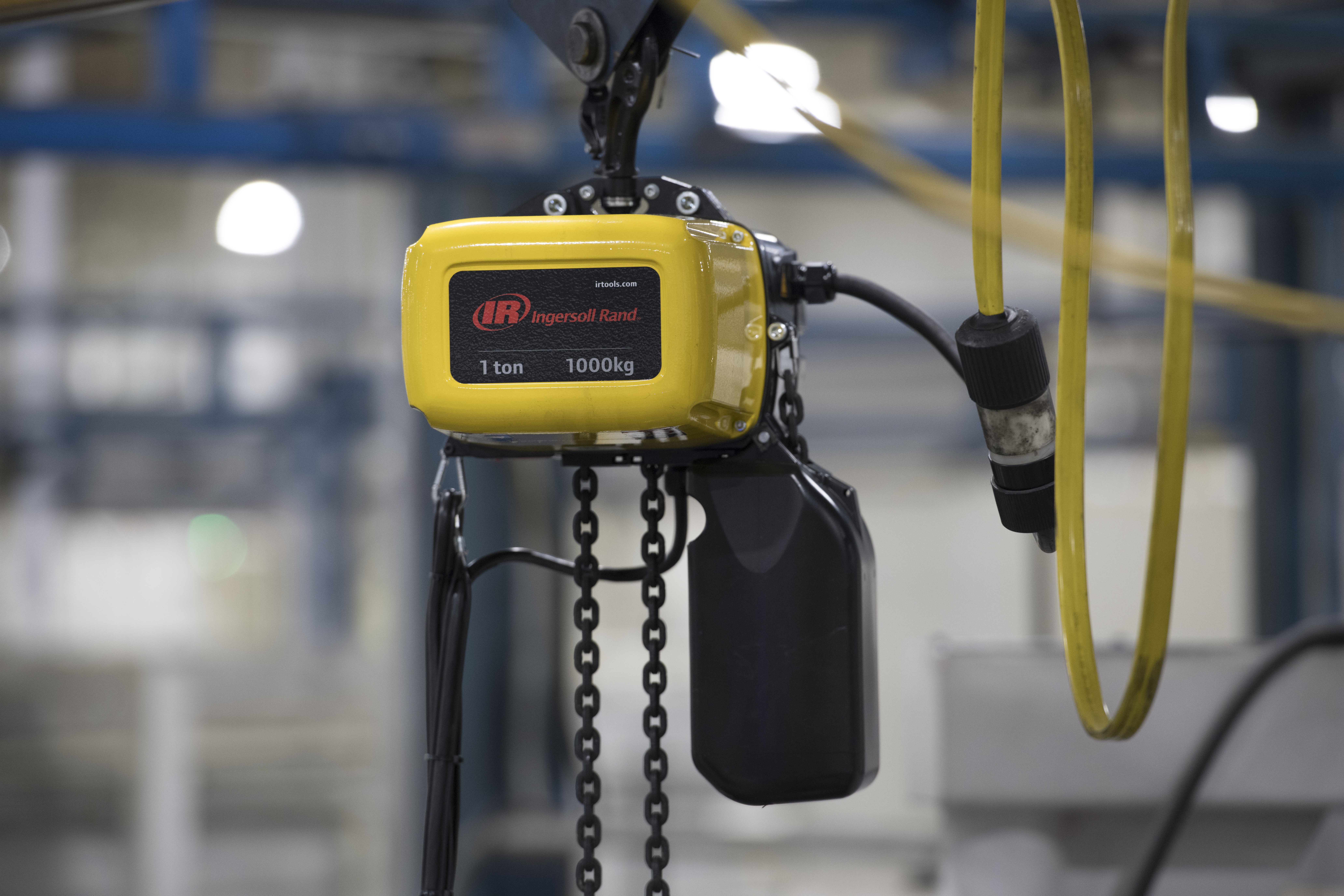

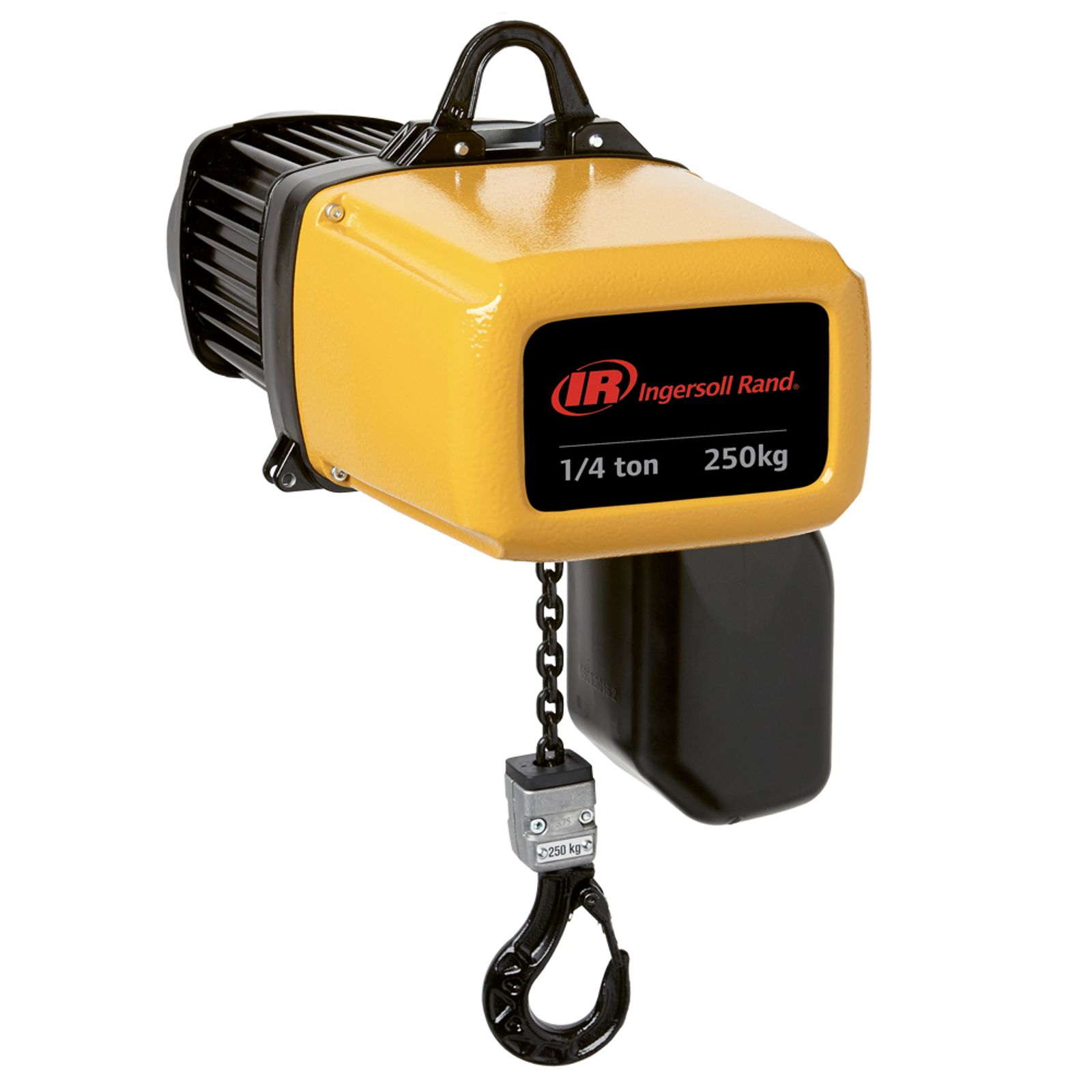

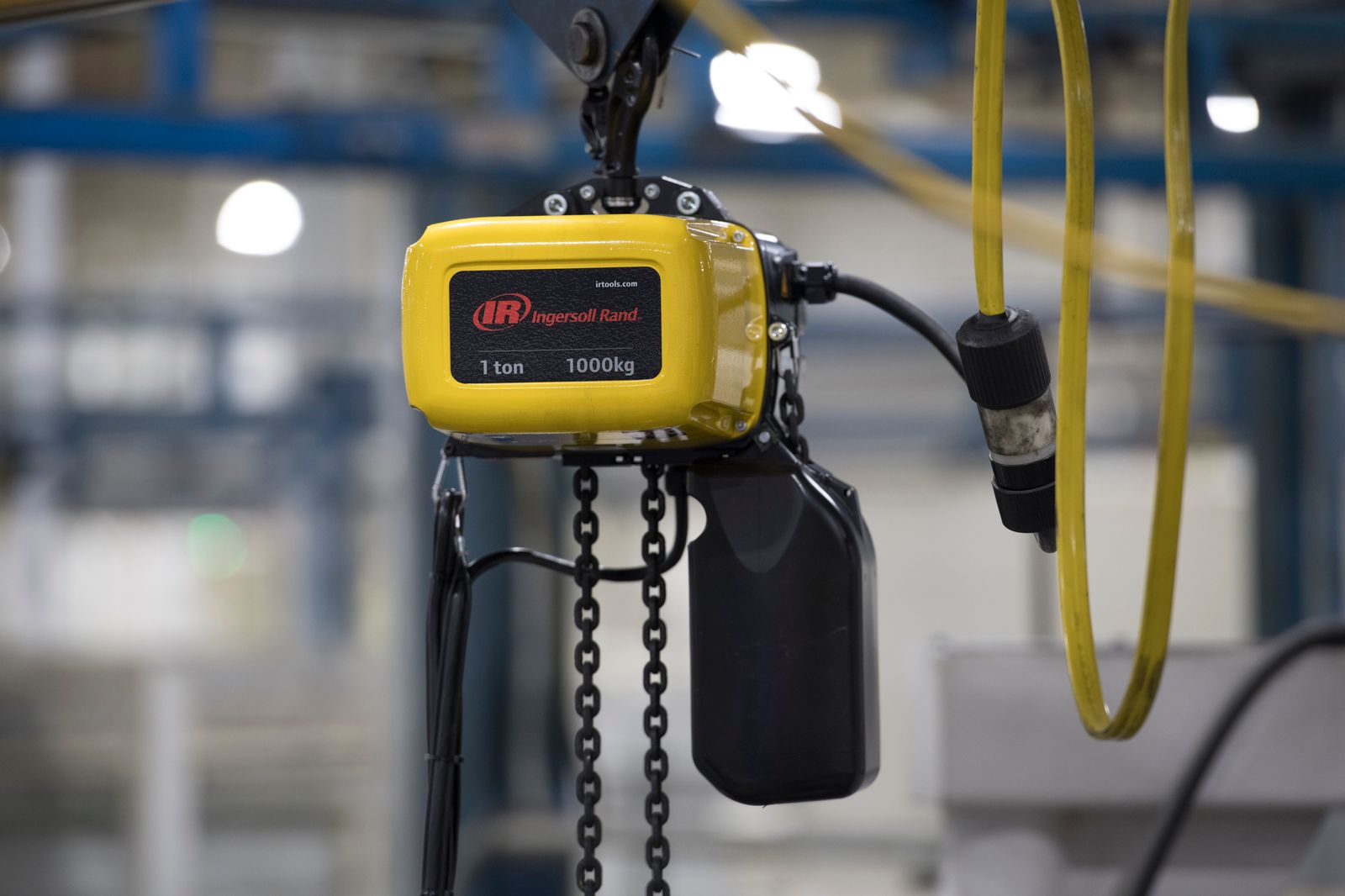

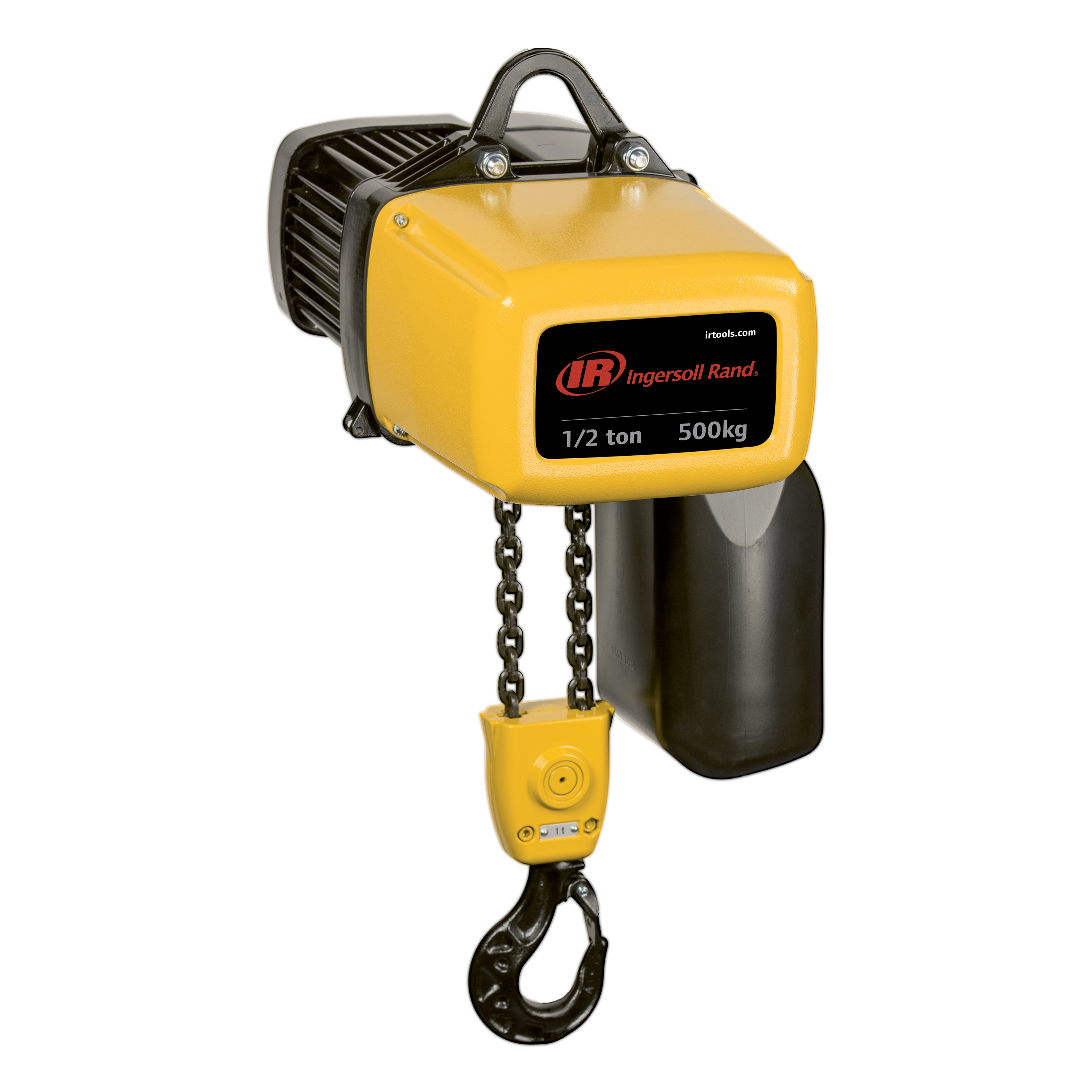

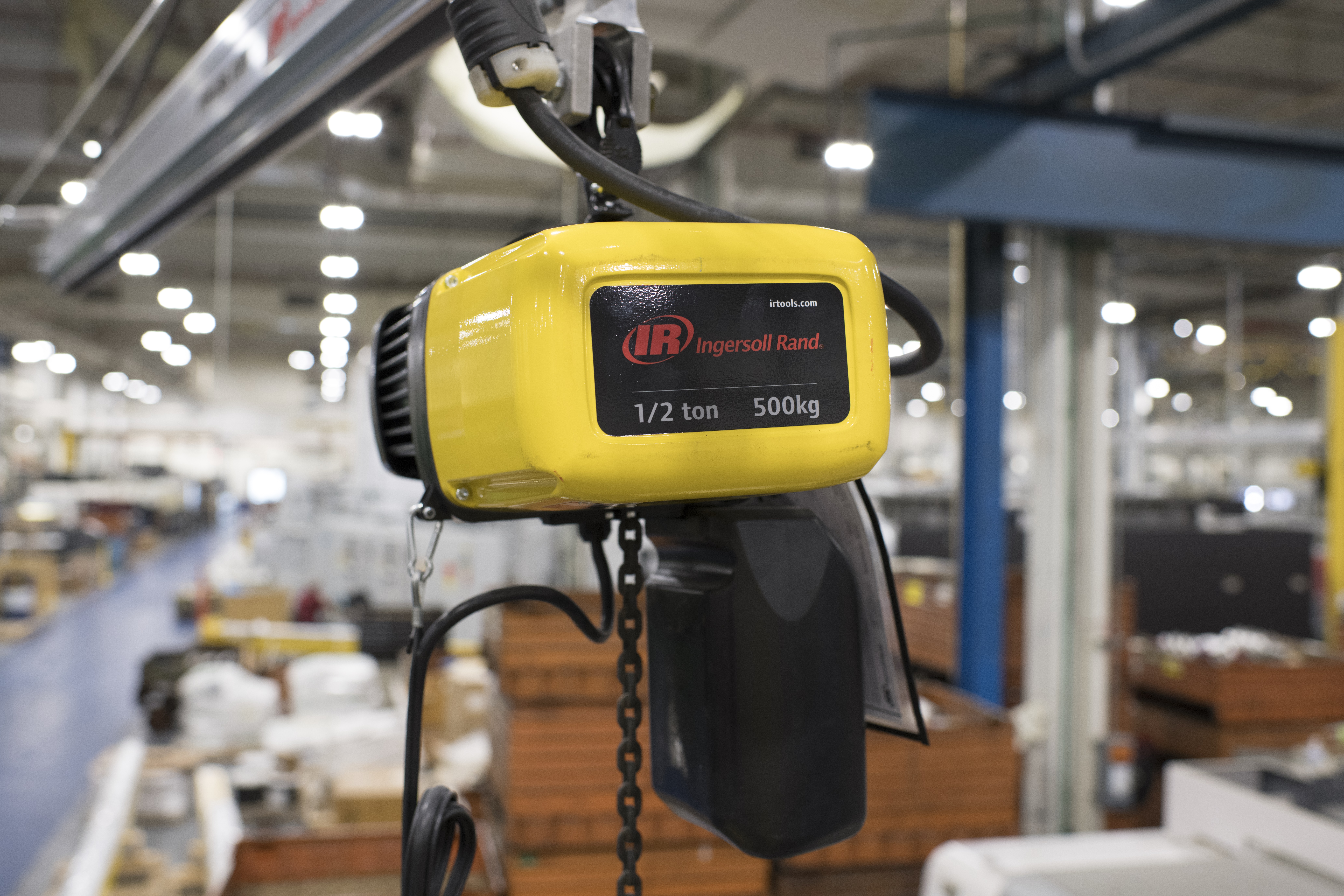

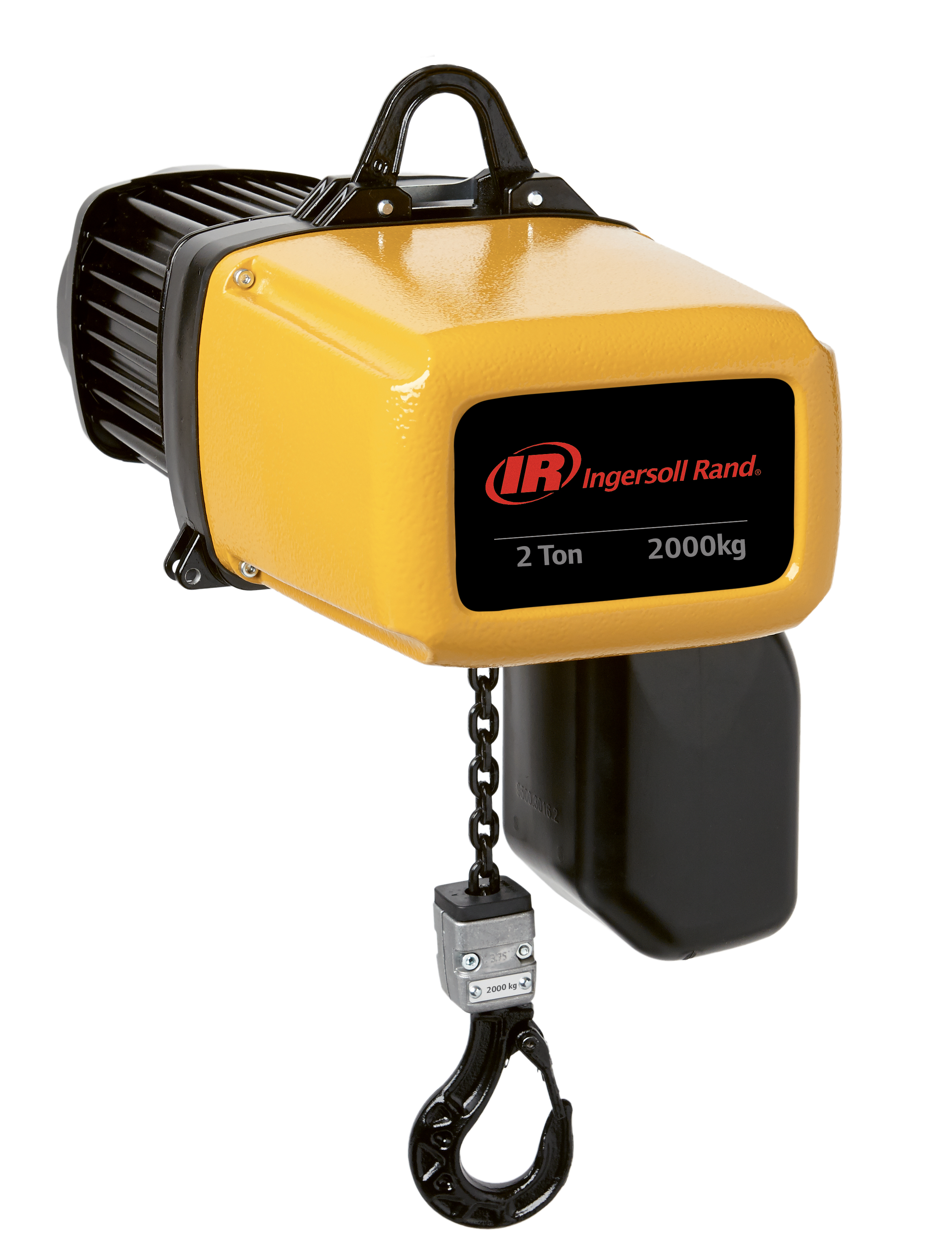

The new ELK Series hoists that brings you durability, modularity, flexibility packed in an extremely lightweight, modern design. Built to meet an A5/M5 duty cycle classification, the ELK hoist is designed for tough, industrial grade applications. The ELK joins Ingersoll Rand's CLK, MLK and HLK premium, class leading hoist family.
Capacity (Metric Tons) | Capacity (lbs) | Base Model | Phase | Voltage | Speed | Speed (ft/min) | Speed (m/min) | Duty Rating HMI (FEM) | Power (HP) | Power (kW) | Falls | Headroom (In) | Headroom (mm) | Weight @ 10' Lift (lbs) | Weight @ 10' Lift (kg) | Chain Weight (lbs/ft) | Chain Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/4t | 550 | ELK25-1NS25 1 ph | Single | 115 / 230 | Single | 16 | 5 | H4 (2m) | 0.34 | 0.25 | 1 | 15.0" | 381 | 37.5 | 17 | 0.23 | 0.34 |
1/4t | 550 | ELK50-1NS25 1 ph | Single | 115 / 230 | Single | 32 | 9.6 | H4 (2m) | 0.74 | 0.55 | 1 | 19.2" | 488 | 57.3 | 26 | 0.46 | 0.69 |
1/2t | 1100 | ELK50-1NS50 1 ph | Single | 115 / 230 | Single | 16 | 5 | H4 (2m) | 0.74 | 0.55 | 1 | 19.2" | 488 | 57.3 | 26 | 0.46 | 0.69 |
1t | 2200 | ELK50-2NS100 1 ph | Single | 115 / 230 | Single | 8 | 2.5 | H4 (2m) | 0.74 | 0.55 | 2 | 20.8" | 528 | 61.7 | 28 | 0.46 | 0.69 |
… | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … |
1/8t | 275 | ELK25-1ND12 | Three | 230 / 460 / 575 / 380 | Dual | 32/8 | 9.6/2.5 | H4 (3m) | 0.50 | 0.37 | 1 | 15.0" | 381 | 37.5 | 17 | 0.23 | 0.34 |
1/4t | 550 | ELK25-1ND25 | Three | 230 / 460 / 575 / 380 | Dual | 32/8 | 9.6/2.5 | H4 (2m) | 0.50 | 0.37 | 1 | 15.0" | 381 | 37.5 | 17 | 0.23 | 0.34 |
1/4t | 550 | ELK50-1HD25 | Three | 230 / 460 / 575 / 380 | Dual | 63/16 | 19.5/5 | H4 (2m) | 1.00 | 0.72 | 1 | 19.2" | 488 | 57.3 | 26 | 0.46 | 0.69 |
1/2t | 1100 | ELK50-1ND50 | Three | 230 / 460 / 575 / 380 | Dual | 32/8 | 9.6/2.5 | H4 (2m) | 1.00 | 0.72 | 1 | 19.2" | 488 | 57.3 | 26 | 0.46 | 0.69 |
1t | 2200 | ELK50-2ND100 | Three | 230 / 460 / 575 / 380 | Dual | 16/4 | 5/1.3 | H4 (2m) | 1.00 | 0.72 | 2 | 20.8" | 528 | 61.7 | 28 | 0.46 | 0.69 |
… | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … |
1/2t | 1100 | ELK100-1HD50 | Three | 230/460/575/380 | Dual | 63/16 | 19.5/5 | H4 (2m) | 3.70 | 2.80 | 1 | 24.2" | 617 | 136.6 | 62 | 0.92 | 1.37 |
1t | 2200 | ELK100-1ND100 | Three | 230/460/575/380 | Dual | 32/8 | 9.6/2.5 | H4 (2m) | 3.70 | 2.80 | 1 | 24.2" | 617 | 136.6 | 62 | 0.92 | 1.37 |
2t | 4400 | ELK100-2ND200 | Three | 230/460/575/380 | Dual | 16/4 | 5/1.3 | H4 (2m) | 3.70 | 2.80 | 2 | 26.6" | 676 | 145.5 | 66 | 0.92 | 1.37 |
… | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … | … |
2t | 4400 | ELK200-1ND200 | Three | 230/460/380 | Dual | 32/8 | 9.6/2.4 | H4 (1m) | 6.00 | 4.50 | 1 | 27.1" | 688 | 205 | 93 | 1.49 | 2.22 |
3t | 6600 | ELK200-2ND300 | Three | 230/460/380 | Dual | 16/4 | 4.8/1.2 | H4 (2m) | 6.00 | 4.50 | 2 | 29.8" | 756 | 224 | 102 | 1.49 | 2.22 |
5t | 11000 | ELK250-2ND500 | Three | 230/460/380 | Dual | 16/4 | 4.8/1.2 | H4 (2m) | 6.00 | 4.50 | 2 | 34.4" | 874 | 257 | 117 | 2.37 | 3.53 |
