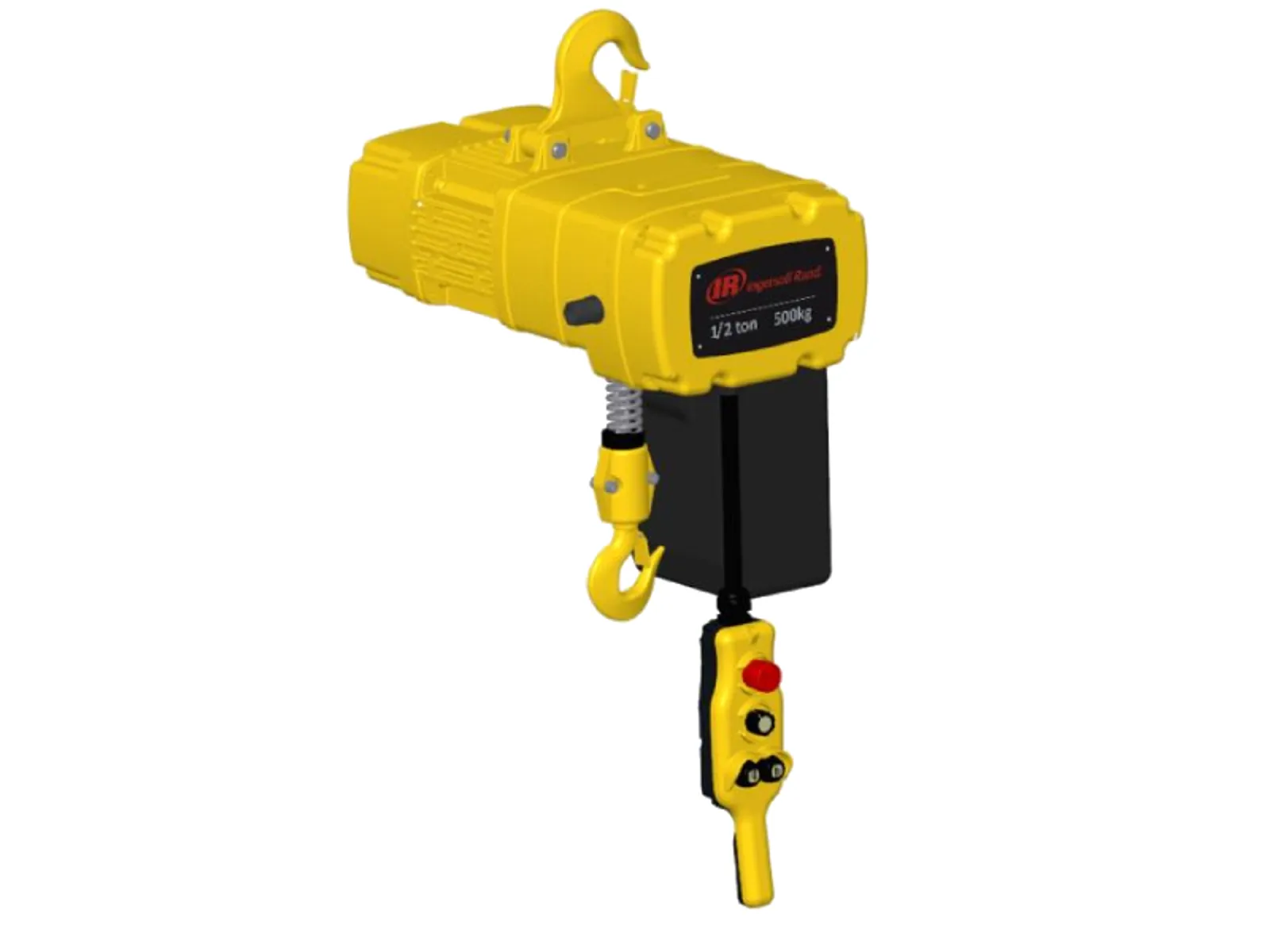

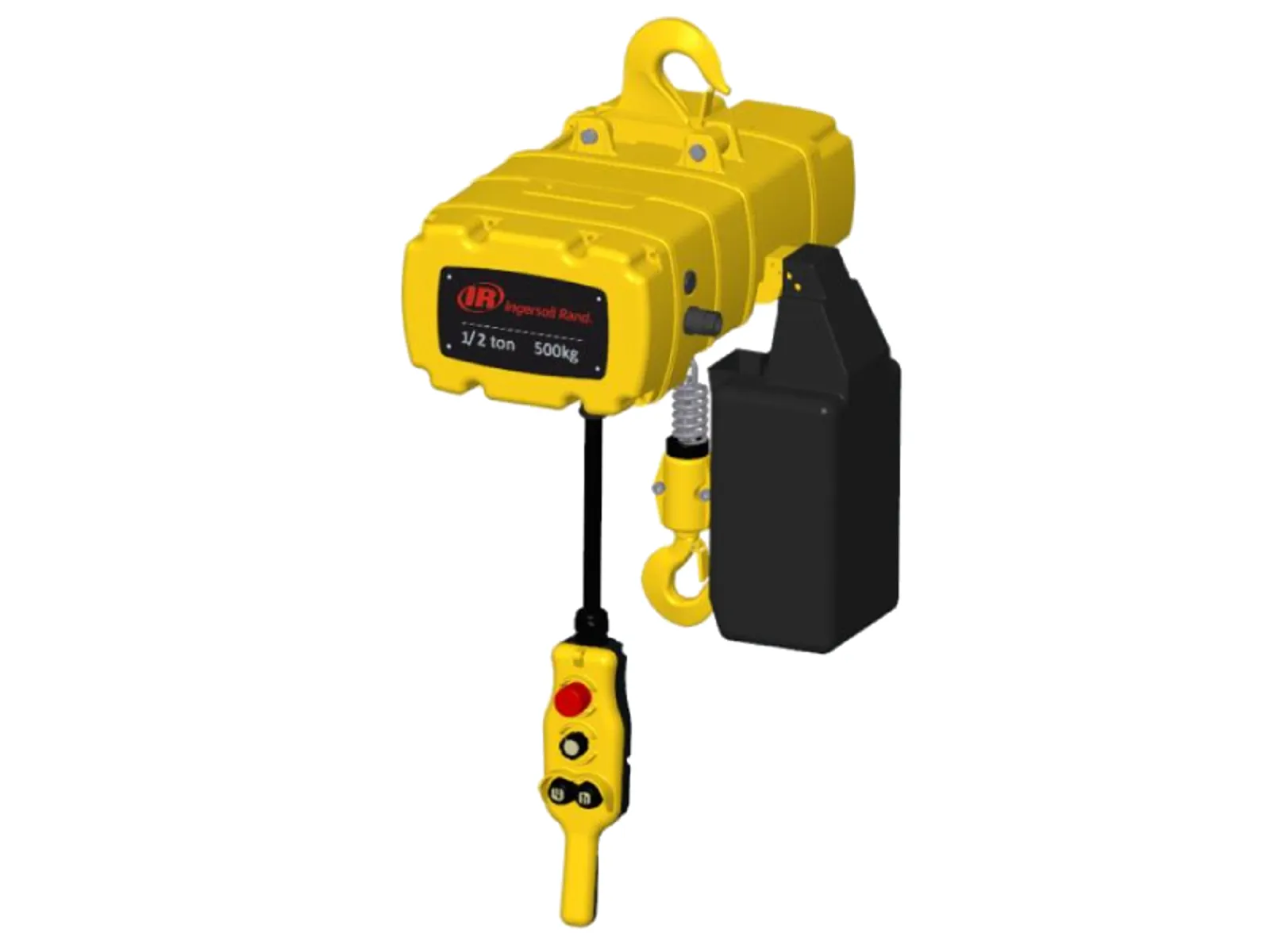

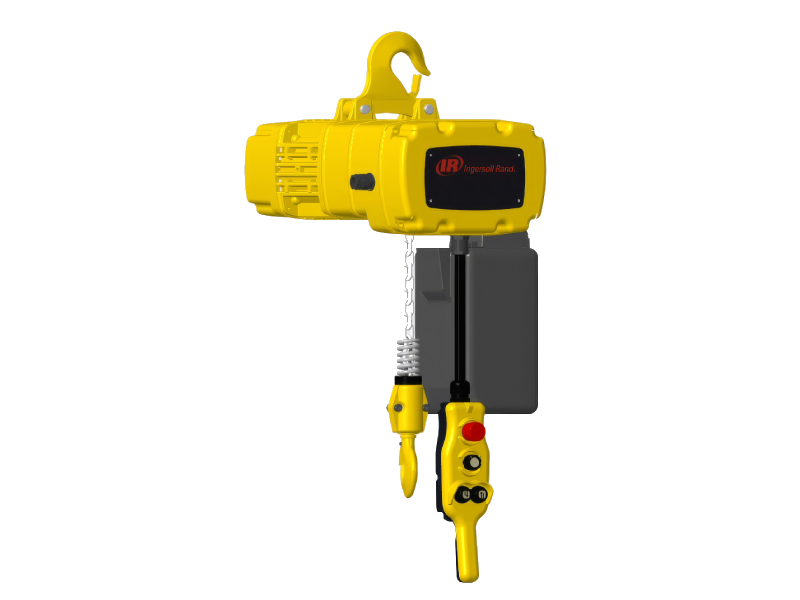

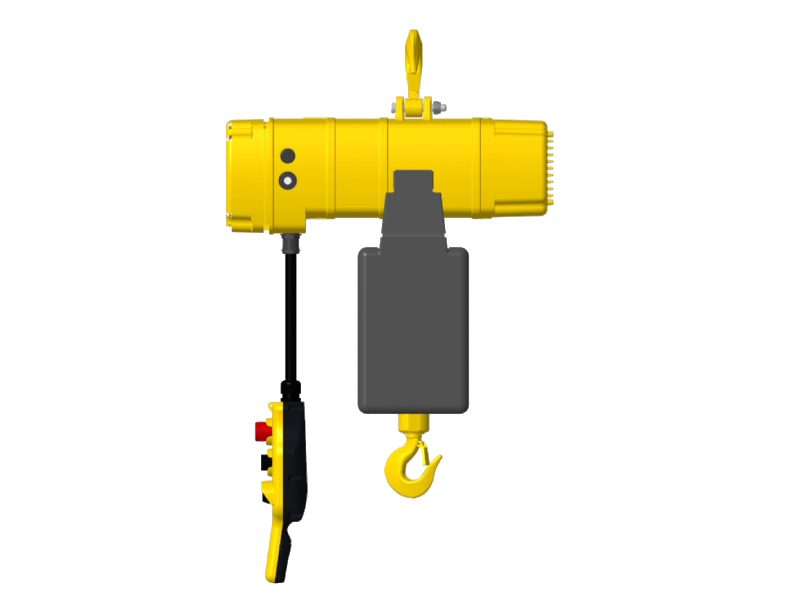

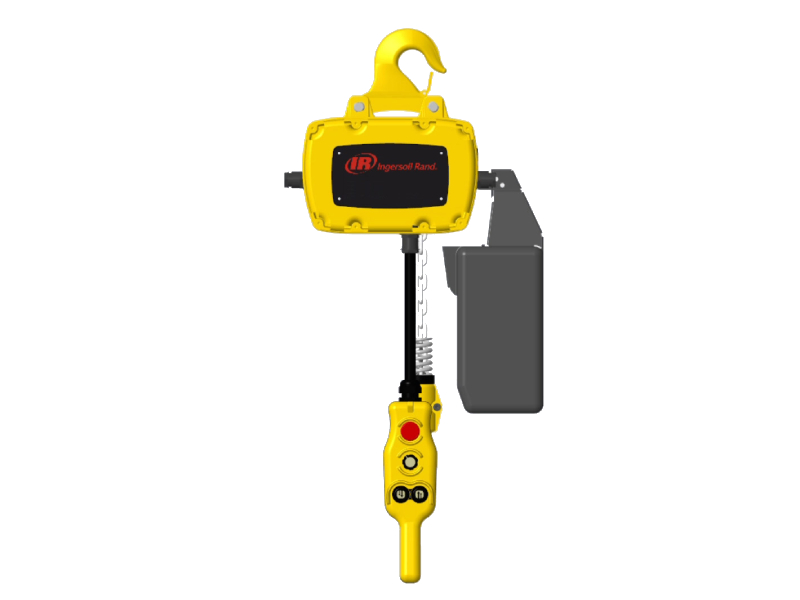

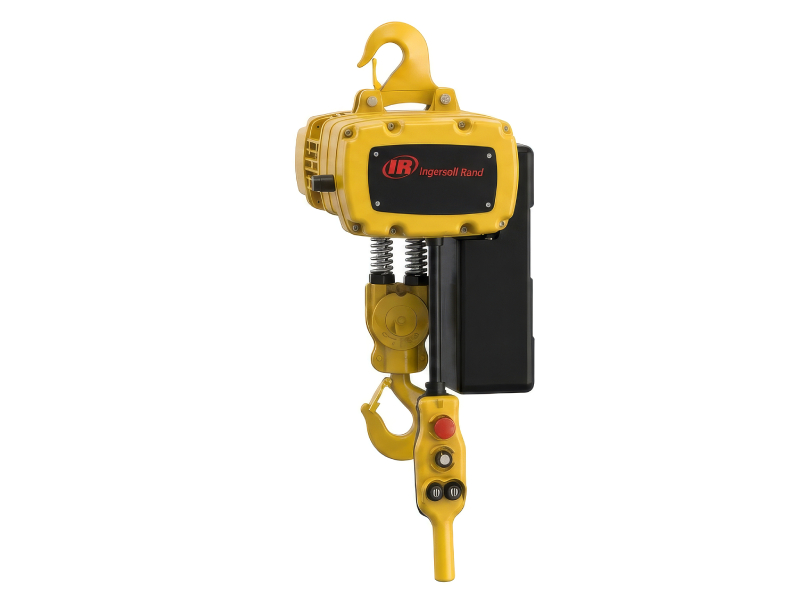

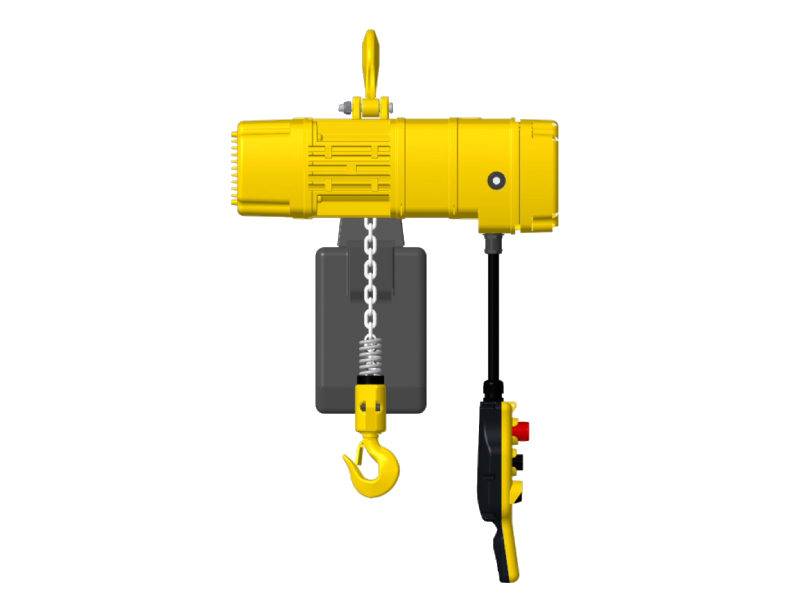

The E‑Lift Series Electric Hoist delivers smooth, precise lifting through advanced permanent magnet motor technology combined with VFD control. A unique, pendant‑mounted control knob enables infinitely variable low‑speed adjustment within the dual‑speed operation, giving operators unmatched accuracy for delicate positioning, along with the productivity of standard high-speed lifting.
Engineered for demanding environments, the E‑Lift features a rugged cast aluminum housing with integrated cooling fins for superior heat dissipation. With IP55 protection for the hoist and IP65 for the pendant, it ensures reliable performance, durability, and reduced maintenance in tough industrial applications.
Model Number | Capacity (lbs) | Duty Rating (HMI/FEM) | Lifting Speed (ft/min) | Product Weight (lbs) | Rated Power (hp) | Headroom in (mm) | |
|---|---|---|---|---|---|---|---|
Low (variable) | High | ||||||
EVLK0501C10C06102L | 1102 | H4/M5 (40m) | 6.6 - 17 | 33 | 94 | 1.5 | 22.8 (580) |
EVLK1001C10C06102L | 2205 | H4/M5 (40m) | 5.2 - 14 | 26 | 102 | 2 | 22.8 (580) |
EVLK1002C10C06102L | 4409 | H4/M5 (40m) | 2.6 - 6.9 | 13 | 110 | 2 | 24.4 (620) |
EVLK2001C10C06102L | 4409 | H4/M5 (40m) | 6.2 - 12 | 31 | 209 | 5 | 40.2 (1020) |
EVLK2501C10C06102L | 5512 | H4/M5 (40m) | 5.2 - 10 | 26 | 224 | 5 | 40.2 (1020) |
EVLK1502C10C06102L | 6614 | H4/M5 (40m) | 4.3 - 8.5 | 21 | 246 | 5 | 41.3 (1050) |
EVLK2502C10C06102L | 11023 | H4/M5 (40m) | 2.6 - 5.2 | 13 | 297 | 5 | 43.3 (1100) |
EVLK0501C10C06106L | 1102 | H4/M5 (40m) | 6.6 - 17 | 33 | 94 | 1.5 | 22.8 (580) |
EVLK1001C10C06106L | 2205 | H4/M5 (40m) | 5.2 - 14 | 26 | 102 | 2 | 22.8 (580) |
EVLK1002C10C06106L | 4409 | H4/M5 (40m) | 2.6 - 6.9 | 13 | 110 | 2 | 24.4 (620) |
EVLK2001C10C06106L | 4409 | H4/M5 (40m) | 6.2 - 12 | 31 | 209 | 5 | 40.2 (1020) |
EVLK2501C10C06106L | 5512 | H4/M5 (40m) | 5.2 - 10 | 26 | 224 | 5 | 40.2 (1020) |
EVLK1502C10C06106L | 6614 | H4/M5 (40m) | 4.3 - 8.5 | 21 | 246 | 5 | 41.3 (1050) |
EVLK2502C10C06106L | 11023 | H4/M5 (40m) | 2.6 - 5.2 | 13 | 297 | 5 | 43.3 (1100) |
Model Number | Capacity (kg) | Duty Rating (HMI/FEM) | Lifting Speed (m/min) | Product Weight (kg) | Rated Power (kW) | Headroom (mm) | |
|---|---|---|---|---|---|---|---|
Low (variable) | High | ||||||
EVLK0501C10C06103L | 500 | H4/M5 (40m) | 2.0 - 5.2 | 10.1 | 42.6 | 1.1 | 580 |
EVLK1001C10C06103L | 1000 | H4/M5 (40m) | 1.6 - 4.3 | 7.9 | 46.3 | 1.5 | 580 |
EVLK1002C10C06103L | 2000 | H4/M5 (40m) | 0.8 - 2.1 | 4 | 49.9 | 1.5 | 620 |
EVLK2001C10C06103L | 2000 | H4/M5 (40m) | 1.9 - 3.7 | 9.4 | 94.8 | 3.7 | 1020 |
EVLK2501C10C06103L | 2500 | H4/M5 (40m) | 1.6 - 3.0 | 7.9 | 101.6 | 3.7 | 1020 |
EVLK1502C10C06103L | 3000 | H4/M5 (40m) | 1.3 - 2.6 | 6.4 | 111.6 | 3.7 | 1050 |
EVLK2502C10C06103L | 5000 | H4/M5 (40m) | 0.8 - 1.6 | 4 | 134.7 | 3.7 | 1100 |
