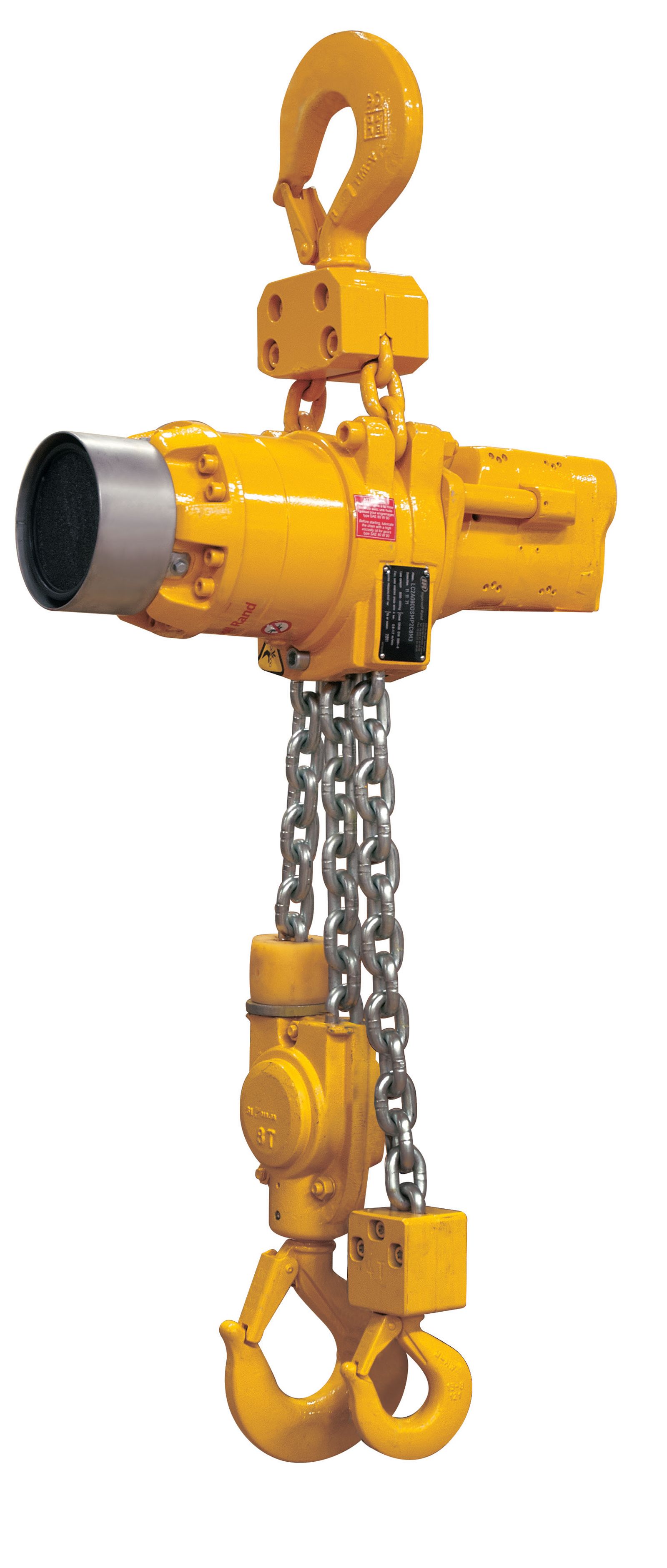

Liftchain® Miner Series Air Chain Hoists

The Miner Series features the same compact, robust design as our standard Liftchain air hoists, but adds several upgrades for the heavy duty conditions found in the underground mining and tunneling industries. This includes operation to 60 psia (4 bar), top hook mounted on chain links, an optional extra bottom hook for pulling, top and bottom limit switches and a cast iron pendant control.

Request Service, Parts, or Support

Durability:

  • Rugged, compact and lightweight all steel construction adaptable for any environment
  • Cast iron pendant control
  • Grade 80 calibrated corrosion-resistant load chain
  • Automatic multi disc brake fully enclosed for better corrosion resistance

Safety:

  • Suitable for explosive underground mining environments per ATEX category M2
  • Overload protection device ensures safe operation
  • Top and bottom limit switches through resistant buffer stops that comes against the hoist central part

Performance:

  • Suitable to operate at 60 psia (4 bar)
  • Top hook mounted on chain links for increased flexibility; extra optional bottom hook for pulling
  • Virtually maintenance-free gear-type air motor with minimal moving parts
  • Variable speed for precision spotting control

Model

LC2A015SM

LC2A015SSM

-

LC2A030DM

LC2A030DSM

-

LC2A040SM

LC2A040SSM

-

LC2A060SM

LC2A060SSM

-

LC2A080DM

LC2A080DSM

-

LC2A120DM

LC2A120DSM

-

Number of Load Hooks

1

2

2

1

2

2

1

2

2

1

2

2

1

2

2

1

2

2

Rated Capacity on Each Hook (t)

1.5 (simple hook)

1.5 (simple hook)

1.5 (simple hook)

3 (double hook)

1.5 (simple hook)

3 (double hook)

4 (simple hook)

4 (simple hook)

4 (simple hook)

6 (simple hook)

6 (simple hook)

6 (simple hook)

8 (double hook)

4 (simple hook)

8 (double hook)

12 (double hook)

6 (simple hook)

12 (double hook)

Min. Headroom (mm)

608

608

608

675

608

675

757

757

757

952

952

952

940

757

940

1148

952

1148

Performances at 4 Bar (58 psi) Pulling Speed at Rated Load (m/min)

3.2

3.2

3.2

1.5

3.2

1.5

1.7

1.7

1.7

1.4

1.4

1.4

0.9

1.7

0.9

0.7

1.4

0.7

Performances at 4 Bar (58 psi) Speed No Load (m/min)

9

9

9

4.5

9

4.5

4

4

4

2

2

2

2

4

2

1

2

1

Performances at 4 Bar (58 psi) Air Cons. At Rated Load (m3/min)

2.2

2.2

2.2

2.2

2.2

2.2

3

3

3

2.5

2.5

2.5

3

3

3

2.5

2.5

2.5

Performances at 6.3 Bar (90 psi) Pulling Speed at Rated Load (m/min)

6.2

6.2

6.2

3

6.2

3

3.9

3.9

3.9

2.2

2.2

2.2

1.8

3.9

1.8

1.1

2.2

1.1

Performances at 6.3 Bar (90 psi) Speed No Load (m/min)

11

11

11

5.5

11

5.5

7

7

7

3.6

3.6

3.6

3.5

7

3.5

1.8

3.6

1.8

Performances at 6.3 Bar (90 psi) Air Cons. At Rated Load (m3/min)

4

4

4

4

4

4

4.5

4.5

4.5

5.2

5.2

5.2

4.5

4.5

4.5

5.2

5.2

5.2

Sound Level (1) (dbA)

79

79

79

79

79

79

76

76

76

79

79

79

76

76

76

79

79

79

Hoist Weight (2) (kg)

41

42

42

48

50

50

90

92

92

125

127

127

118

120

120

171

179

179

Chain Size (mm)

8x24

8x24

8x24

8x24

8x24

8x24

13x36

13x36

13x36

16x45

16x45

16x45

13x36

13x36

13x36

16x45

16x45

16x45

Chain Weight/1 m Extra Lift (kg)

1.4

1.4

1.4

2.8

2.8

2.8

3.8

3.8

3.8

5.7

5.7

5.7

7.6

7.6

7.6

11.4

11.4

11.4
