- Meets Specifications
- 100% duty cycle. MLK/HLK are rated as HMI duty classification A5, severe duty. This equates to FEM 9.511 duty classification 2m.
- These hoist are ideal for the harsh environments found in steel mills, foundries and electroplating operations. These are also ideal for high duty cycle applications.
- Pull chain or pilot pendent controls provide precise spotting capabilities. For even more precise control MLKS slow speed models are available.
- Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement.
- All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
- Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control.
- Spark resistant models and a wide range of options and accessories are available.

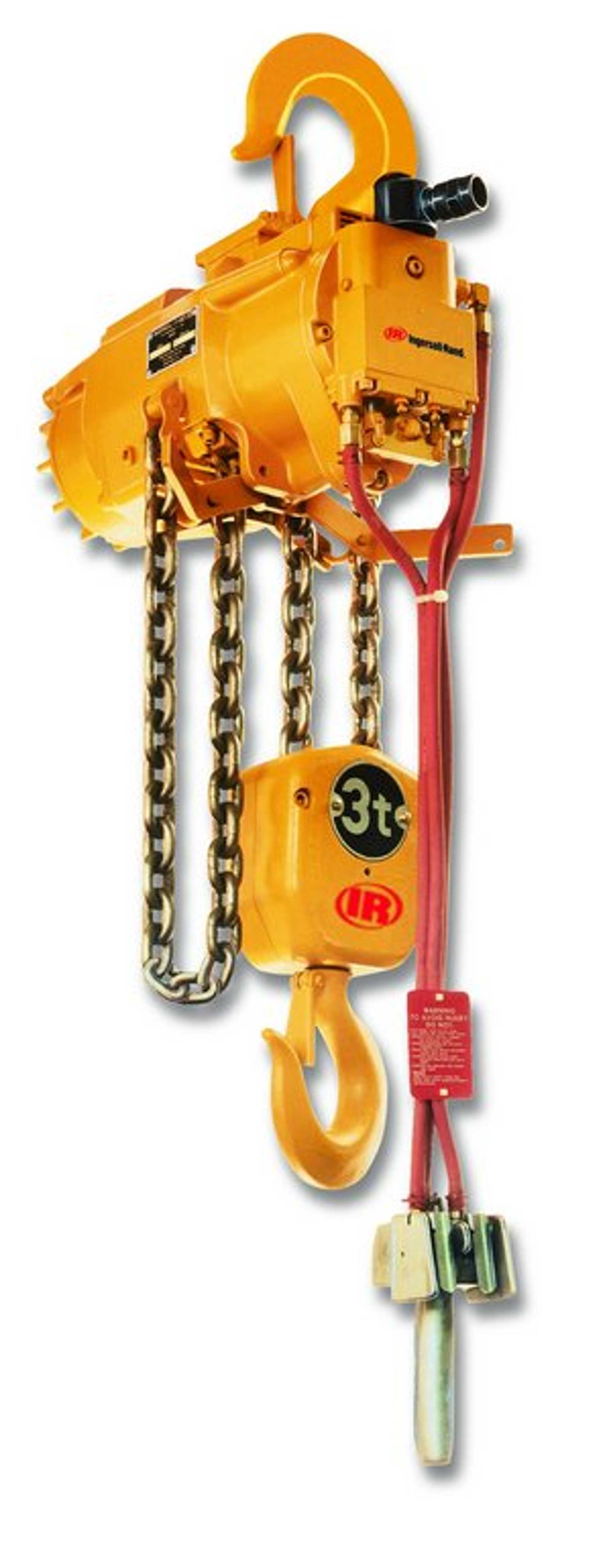

2200 lbs (1000 kg) - 13200 lbs (6000 kg) Lifting Capacity Serving industry for over 25 years, the rugged and reliable HLK series share a common design with many interchangeable parts. With high speeds and precise spotting, these hoists are ideal for high production cycle operations. Spark resistant, designated with a KR suffix, is offered. HLK series come with a wide array of options and accessories HLK series hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control
Model Name | HL1000K | HL1000KR | HL1500K | HL2000K | HL3000K | HL4500K | HL6000K |
|---|---|---|---|---|---|---|---|
Chain falls | 1 | 1 | 1 | 2 | 2 | 3 | 4 |
Speed at rated load DOWN, fpm (m/min) | 37 (11.3) | 37 (11.3) | 26 (7.9) | 18 (5.5) | 13 (4.0) | 10.0 (3.1) | 7.6 (2.3) |
Speed at rated load UP, fpm (m/min) | 26 (7.9) | 26 (7.9) | 16 (4.9) | 13 (4.0) | 8 (2.4) | 4.6 (1.4) | 3.5 (1.1) |
Headroom (Hook Mount), in (mm) | 18.5 (469.9) | 18.5 (469.9) | 18.8 (477.5) | 23.0 (584.2) | 25.0 (635.0) | 30.9 (784.9) | 36.2 (919.5) |
Air Consumption, m³/min (per Hoist) | 70 (1.98) | 70 (1.98) | 70 (1.98) | 70 (1.98) | 70 (1.98) | 70 (1.98) | 70 (1.98) |
Shipping Weight, lbs (kg) | 84 (38.1) | 84 (38.1) | 84 (38.1) | 125 (56.7) | 125 (56.7) | 193 (87.5) | 248 (112.5) |
Capacity, lbs (kg) | 2200 (1000) | 2200 (1000) | 3300 (1500) | 4400 (2000) | 6600 (3000) | 9900 (4500) | 13200 (6000) |
Chain Containers
Ingersoll Rand chain containers will keep chain from becoming a danger in your operation and provide protection for the chain from hazardous working conditions.
Pedestal Bases
Pedestal bases help improve the ergonomic positioning of winch products by raising them off the floor, enabling them to be used without having to bend over.
Automatic Spooling Devices
Our spooling devices provide application-specific designs to improve winch operation and minimize downtime.
Construction Cages
Construction cages protect winches during storage for later use or while in transit without concern for damage.
Controls
Ingersoll Rand offers a variety of controls for hoists, winches and BOP products, with application-specific options to optimize efficiency and improve safety.
Airline Accessories
Ingersoll Rand offers a variety of airline accessories that will drastically prolong the life of your winch or hoist product.
Hooks & Attachments
Ingersoll Rand hook and attachment options for your hoists and BOP handling systems, including clevis attachments and standard hooks with latches.
Drum Guards
Ingersoll Rand drum guards enhance safe winch operation and helps achieve CE certification.
