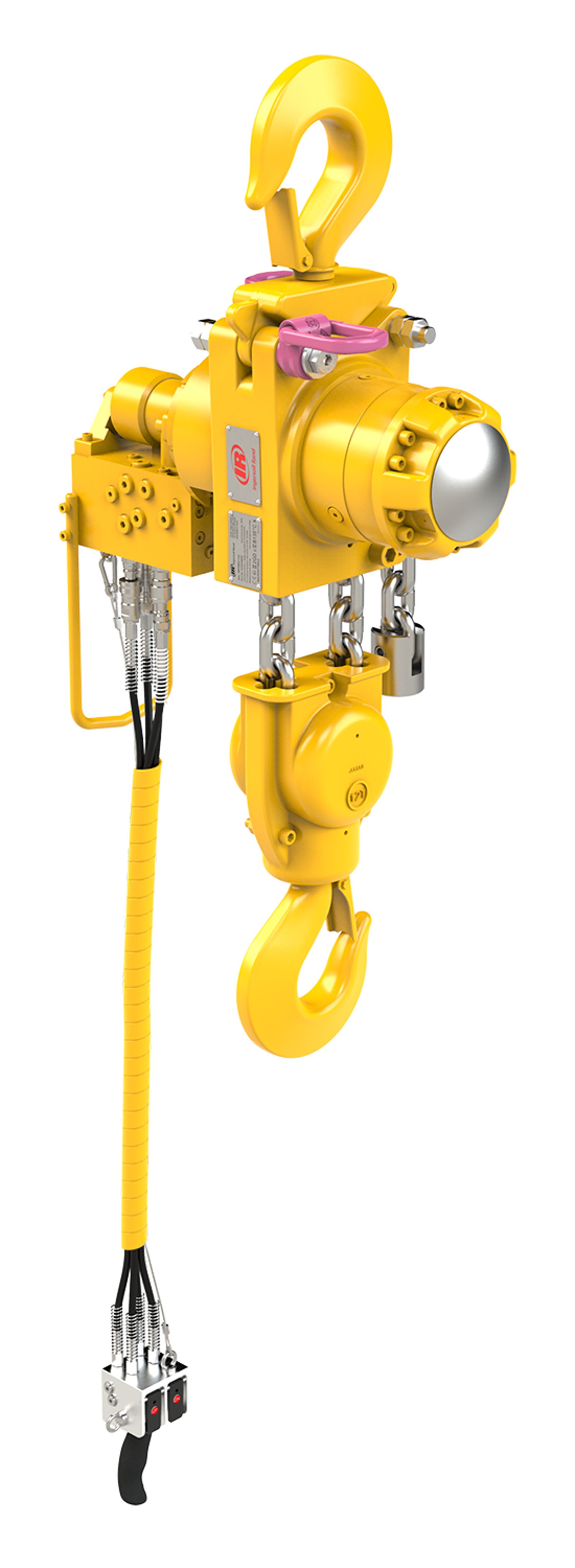

hoists hoists Subsea Hoist 3qtrD
Back to the product list

Subsea Hydraulic Hoists

Our subsea chain hoists are designed for a full range of demanding underwater and marine applications including construction and repair, ship salvage or rig decommissioning. Whether for commercial, military or governmental applications, our hoists can be used everywhere from oil platforms to dam construction and mining exploration sites, saving both significant time and expense.

Request Service, Parts, or Support

Designed for reliable underwater use:

  • 30-meter operational depth!
  • Extremely durable construction including corrosion-resistant chain and housing and fully enclosed gear box
  • Operates in a vertical or horizontal position
  • Waterproof design protects all moving parts and bearings
  • Corrosion-resistant offshore paint protection, classified C5-M (very high corrosivity - marine) per ISO 12944

Safe operation:

  • Hydraulic motor generates no bubbles that interfere with spotting operations, unlike air hoists
  • Manifold includes overload protection and quick-down valves acting as limit switches
  • Durable, Grade 80 zinc-plated load chain with a 5:1 safety factor
  • Accepts up to 50 bar (750 psi) pressure in return line, and provides fluid hammer protection

Easy to setup, handle and operate:

  • Plug and play design ready to work right out of the box
  • Quick disconnects on pendant hoses
  • 100% progressive speed control delivers great spotting capabilities
  • Pendant features large buttons for easy control with diving gloves
  • Orbital hydraulic motor provides high torque and very precise positioning

Model

SLH060S

SLH120D

SLH250D

SLH500Q

Rated capacity, metric ton

6

12

25

50

Chain falls

1

2

2

4

Chain size, mm

16 x 45

16 x 45

22 x 66

22 x 66

Maximum hoisting speed at rated load, m/min (fpm)

2.8 (9.2)

1.4 (4.6)

1.0 (3.3)

0.5 (1.6)

Maximum lowering speed at rated load, m/min (fpm)

3.0 (9.8)

1.5 (4.9)

1.1 (3.6)

0.6 (2.0)

Maximum hoisting and lowering speeds at no load, m/min (fpm)

2.8 (9.2)

1.4 (4.6)

1.0 (3.3)

0.5 (1.6)

Nominal hoisting working pressure, bar (psi)*

120 (1740)

120 (1740)

135 (1950)

135 (1950)

Recommended network pressure, bar (psi)*

140 (2030)

140 (2030)

150 (2175)

150 (2175)

Nominal flow, l/min (gpm)

40 (10.6)

40 (10.6)

50 (13.2)

50 (13.2)

Pressure port size, BSPP

3/4"

3/4"

3/4"

3/4"

Return port size, BSPP

3/4"

3/4"

3/4"

3/4"

Hoist weight with 3 m of lift, kg (lb)

185 (408)

230 (508)

555 (1225)

940 (2075)

Chain weight per additional meter of lift, kg (lb)

5.7 (12.5)

11.4 (25.0)

21.4 (47.0)

42.8 (94.0)

Maximum height of lift, m (ft)

52 (170)

49 (160)

49 (160)

24 (79)

Minimum headroom, mm (in)

717 (28.2)

945 (37.2)

1235 (48.6)

1590 (62.6)

Maximum water depth, m (ft)

30 (100)

30 (100)

30 (100)

30 (100)

FEM / ISO mechanical classification

1 Bm/M3

1 Bm/M3

1 Bm/M3

1 Bm/M3

Coating system

C5-M

C5-M

C5-M

C5-M
