ZC2S Standard Clamp Lift Assist

ZC2SBox1 handling devices and effectorsZC2S handling devices and effectorsZ Controls handling devices and effectors
ZC2SBox1 handling devices and effectors
ZC2S handling devices and effectors
Z Controls handling devices and effectors

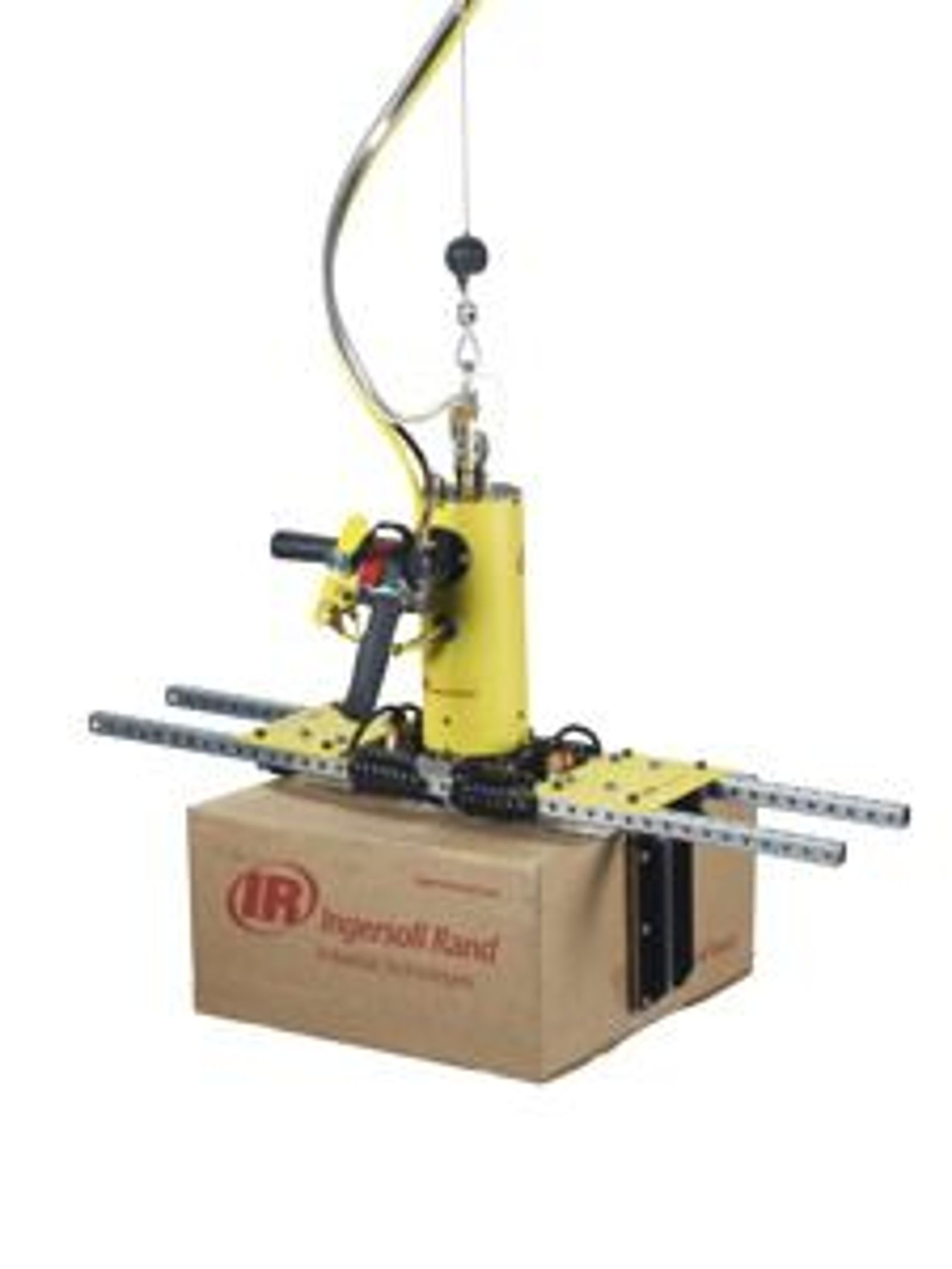

The ZC2S Standard Clamp Lift Assists are the right tool for the job when you need to handle boxes, containers, totes, trays, and a wide variety of other shaped cartons. These versatile clamp lifts help you improve your productivity through more effective part pickup, orientation, transfer, and positioning. Lifting clamps are easy to use, featuring single-hand intuitive controls for up/down movement, as well as clamp/unclamp.
Request a QuoteRequest Service, Parts, or Support

Safety:

  • Once the vertical lifting clamps are fully engaged, a safety interlock (indicated by an air gauge and a green signal) prevents the accidental release of the load.

Productivity:

  • This lifting clamp helps improve your productivity through more effective part pickup, orientation, transfer, and positioning.

Durability:

  • The tools are designed to the ASME B30.20 specification for Below-the-Hook Lifting Devices.

Ergonomic:

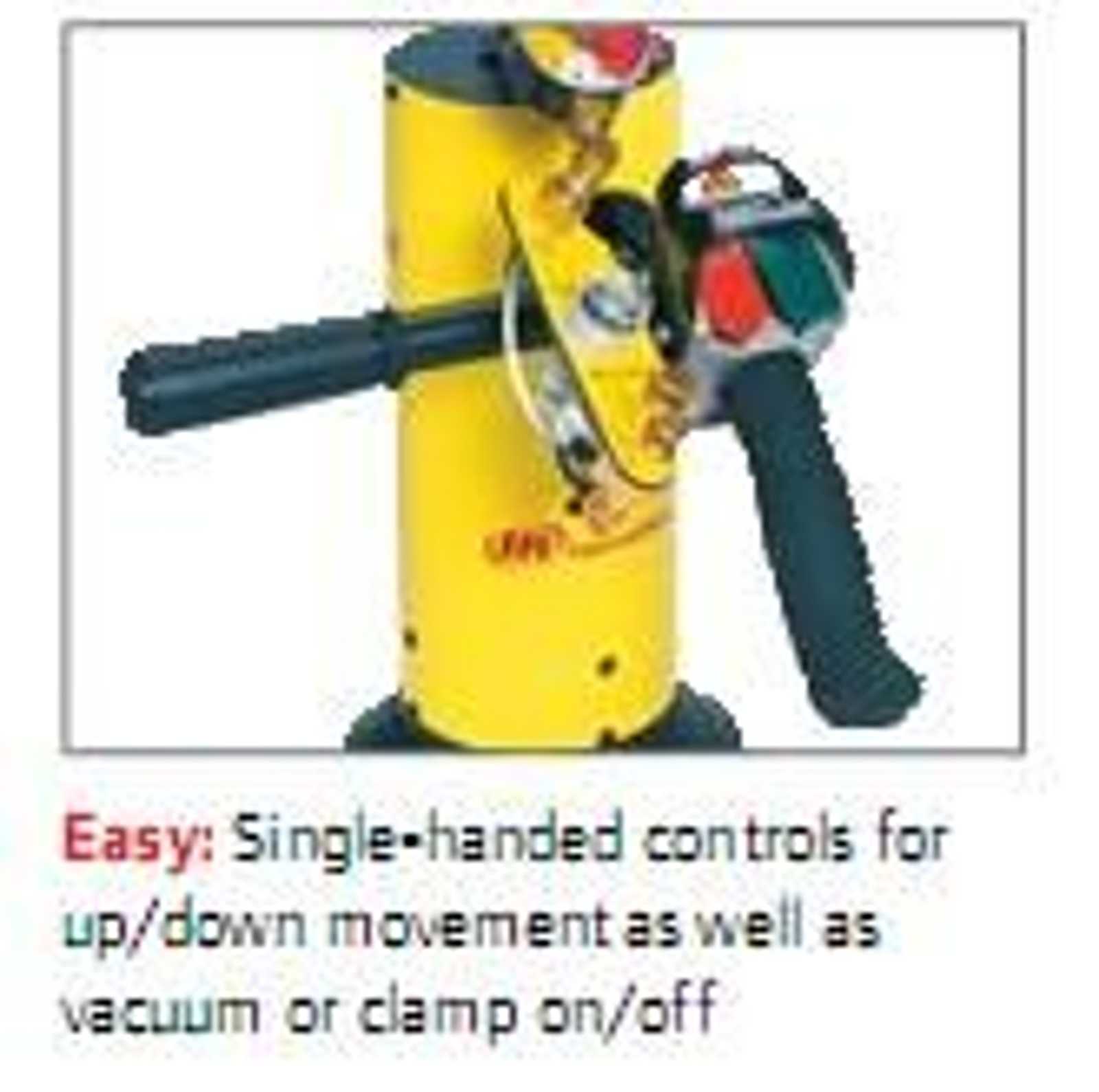

  • The ZC2S uses the same comfortable grip control handle as the popular ZA Series Balancers.

Versatility:

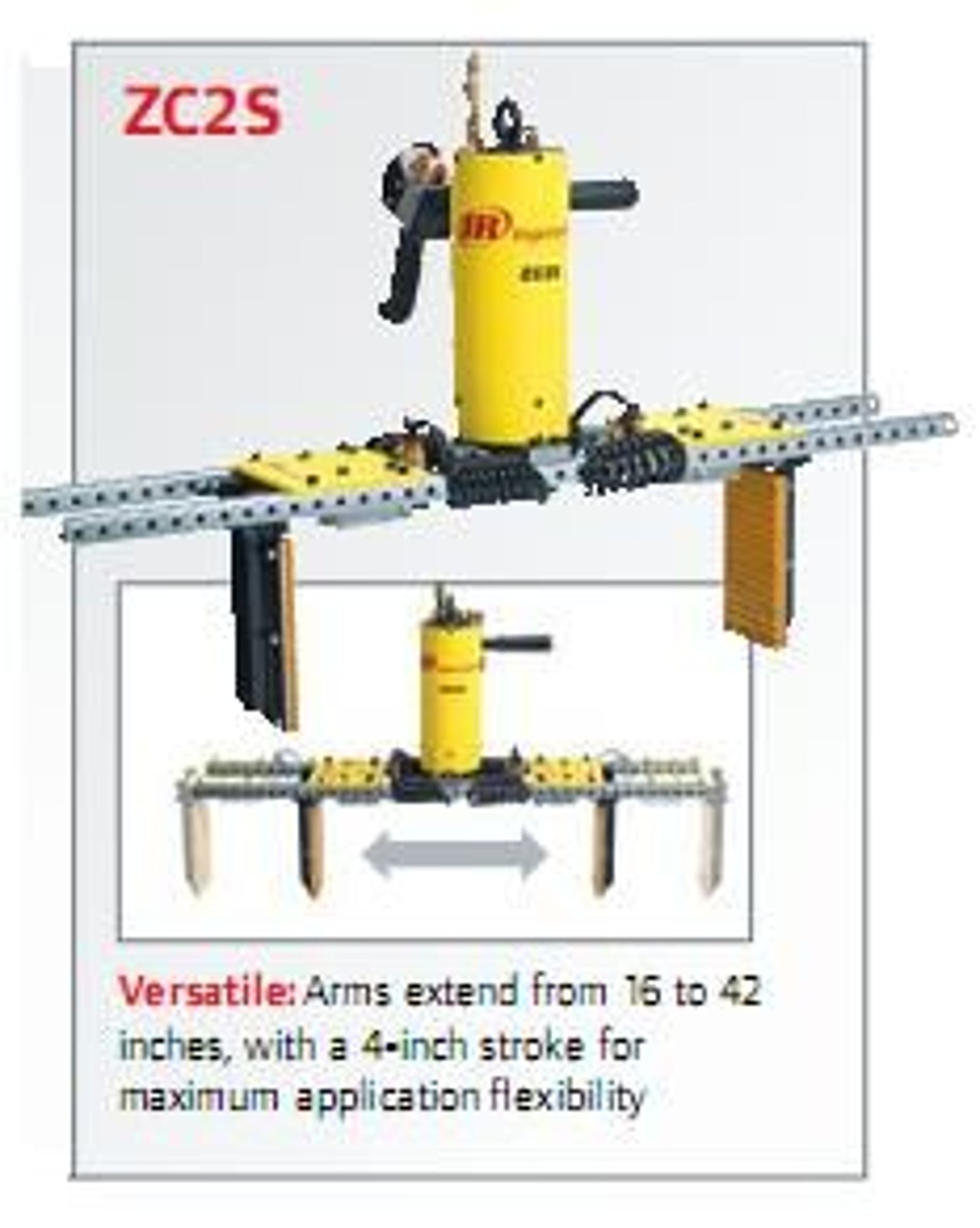

  • Arms extend from 16 to 42 in. (406 to 1067 mm) with a 4 in. (102 mm) stroke for MAX flexibility.
  • Material quality is protected with positive secure gripping at pickup/set down for reduced part damage
