Rotary Action Handler

devices and effectors ZIM Paper Roll Pulp Paper lZIMRAHPin Nose Zim RAH Step Nose ZIM ROLL ROTARY ACTION HANDLER FOOD AND BEVERAGE ZIM ROTARY ACTION HANDLER ZIM Steel Roll HVAC

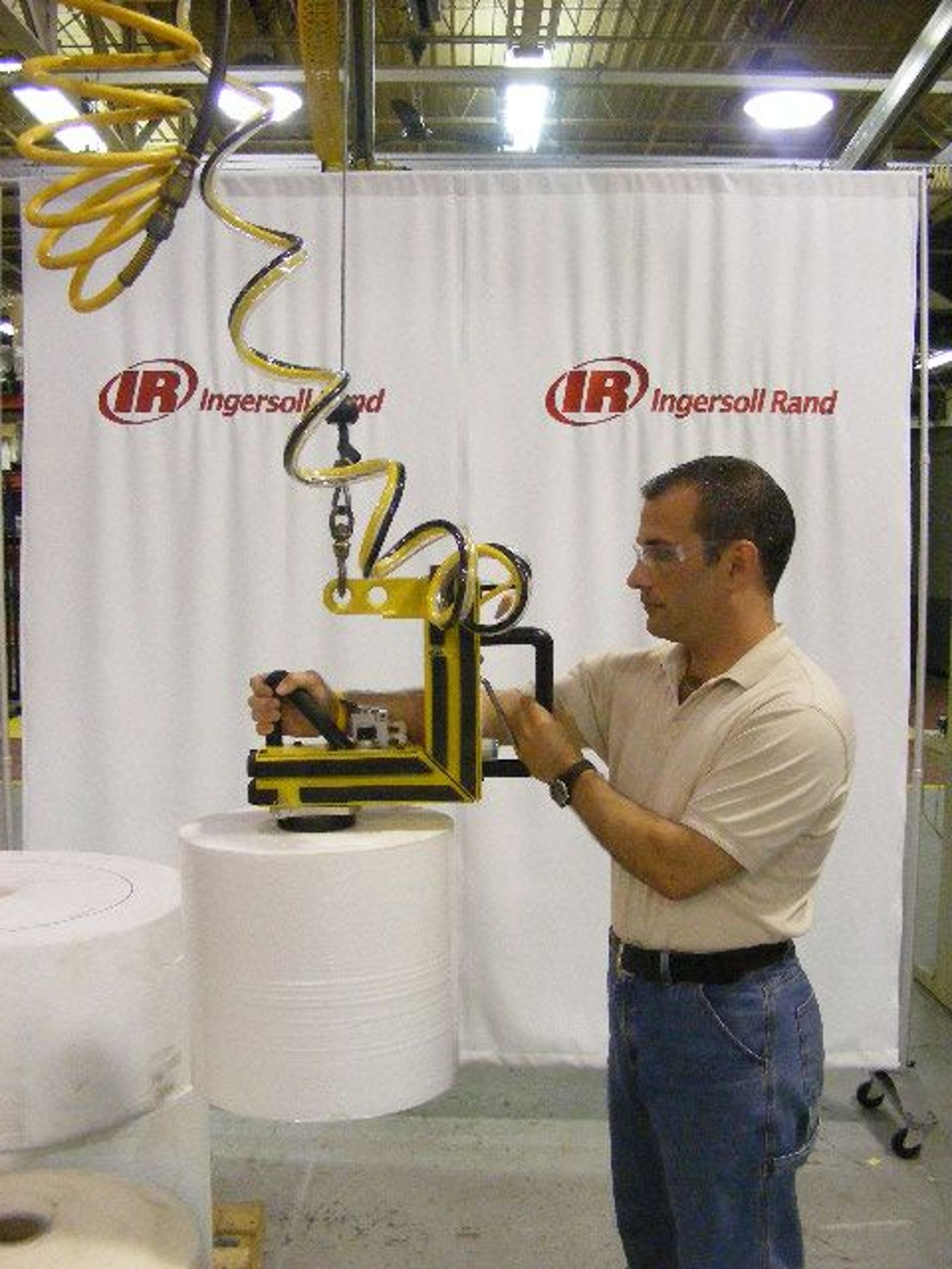

devices and effectors ZIM Paper Roll Pulp Paper l

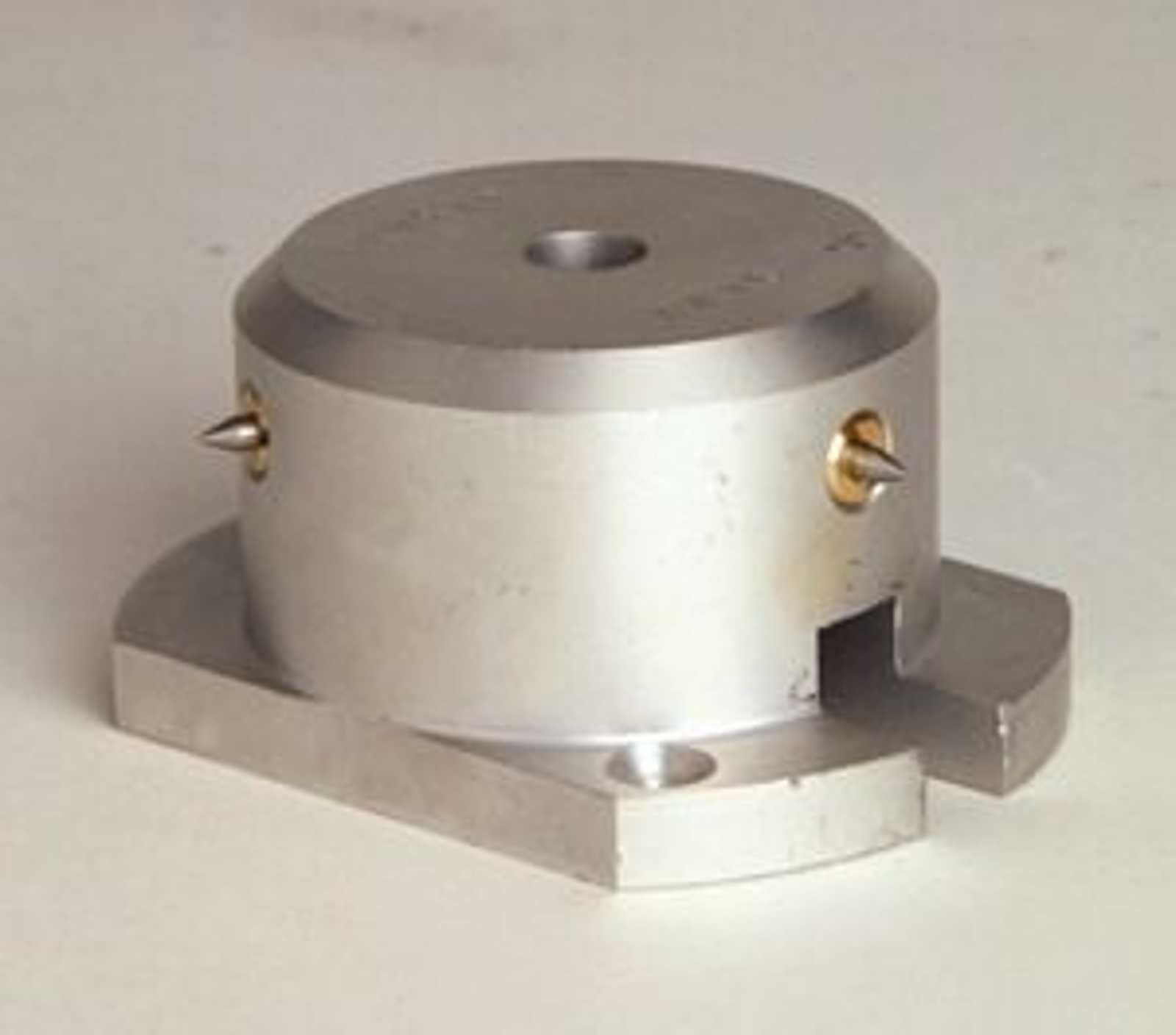

ZIMRAHPin Nose

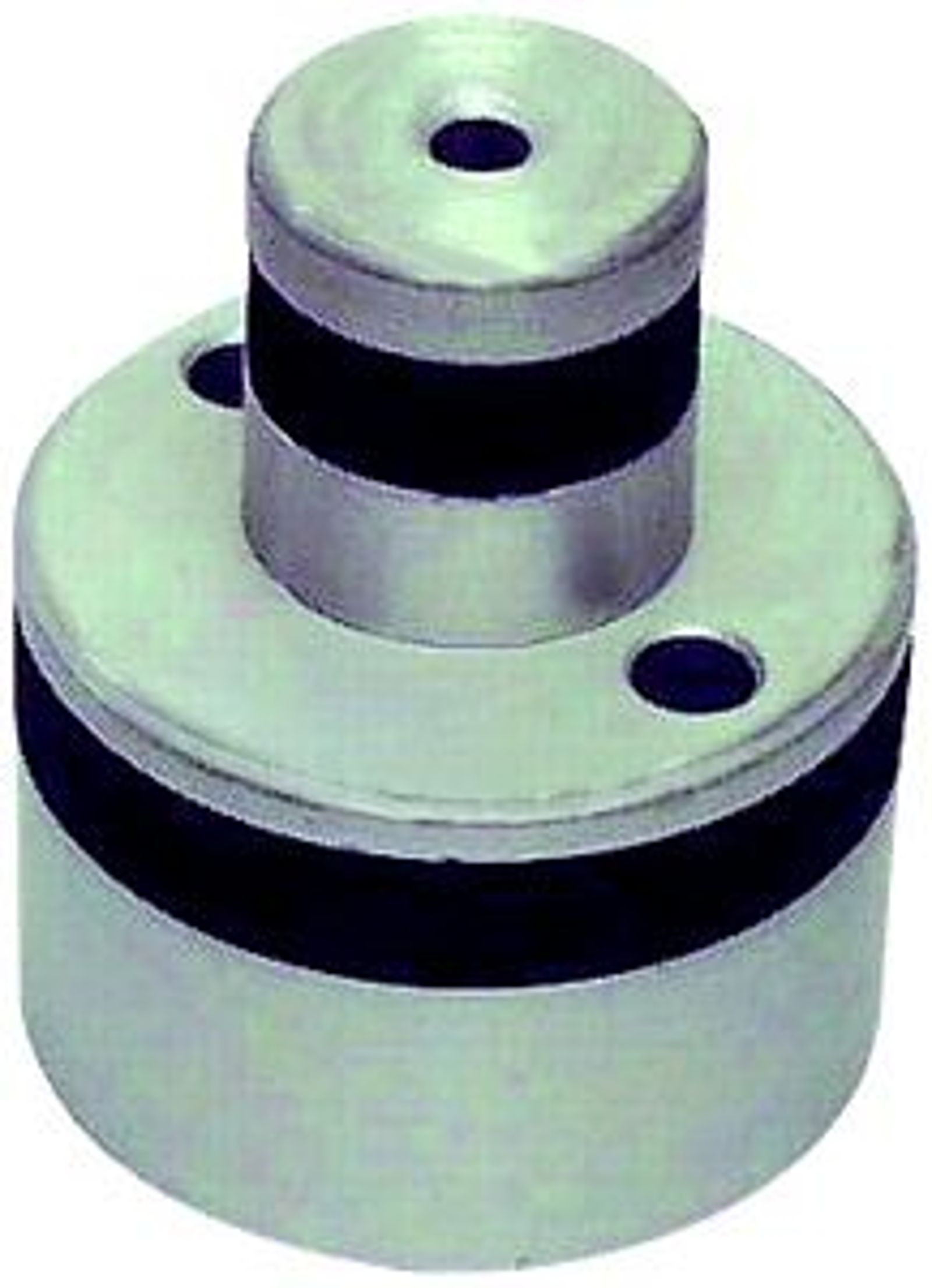

Zim RAH Step Nose

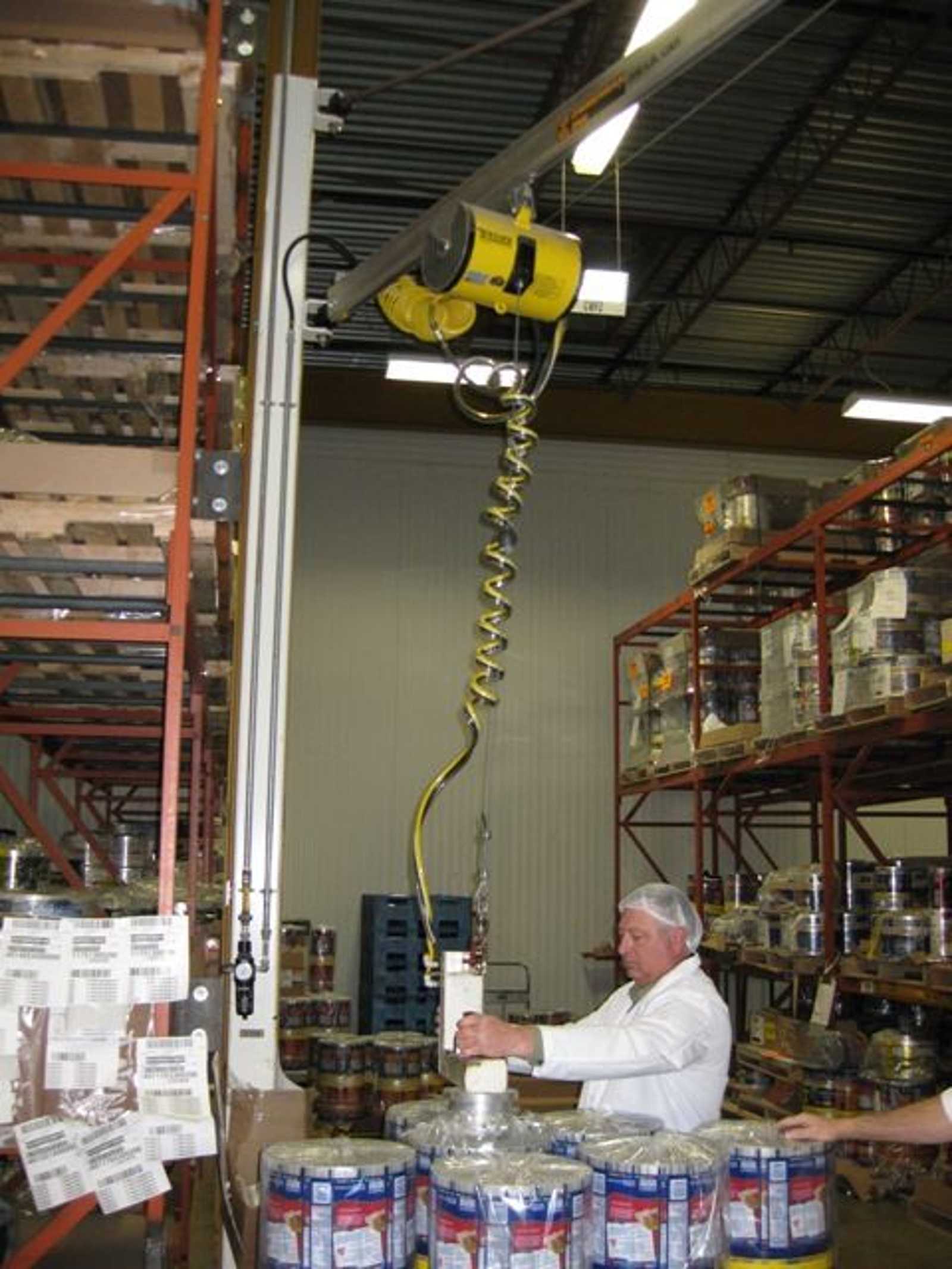

ZIM ROLL ROTARY ACTION HANDLER FOOD AND BEVERAGE

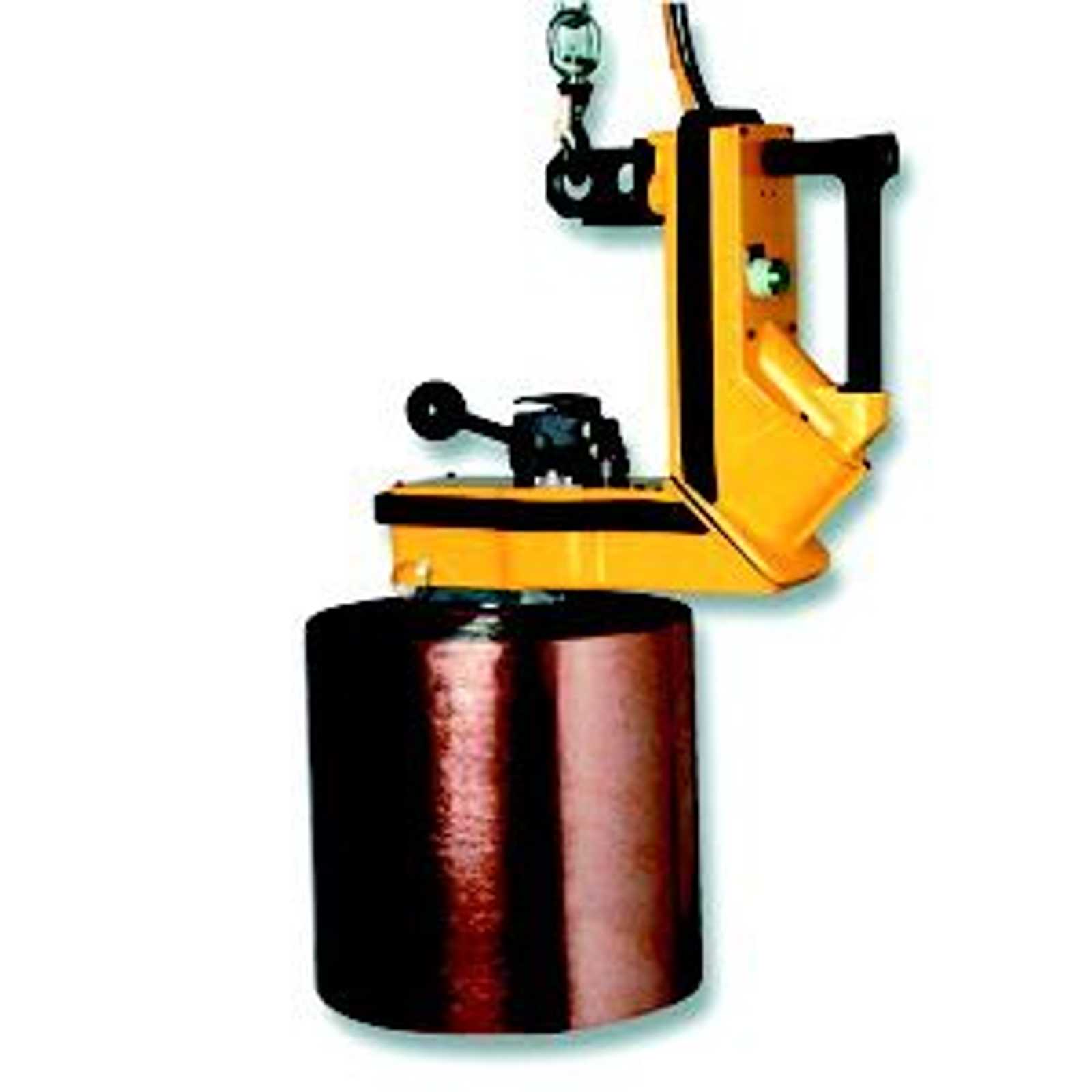

ZIM ROTARY ACTION HANDLER

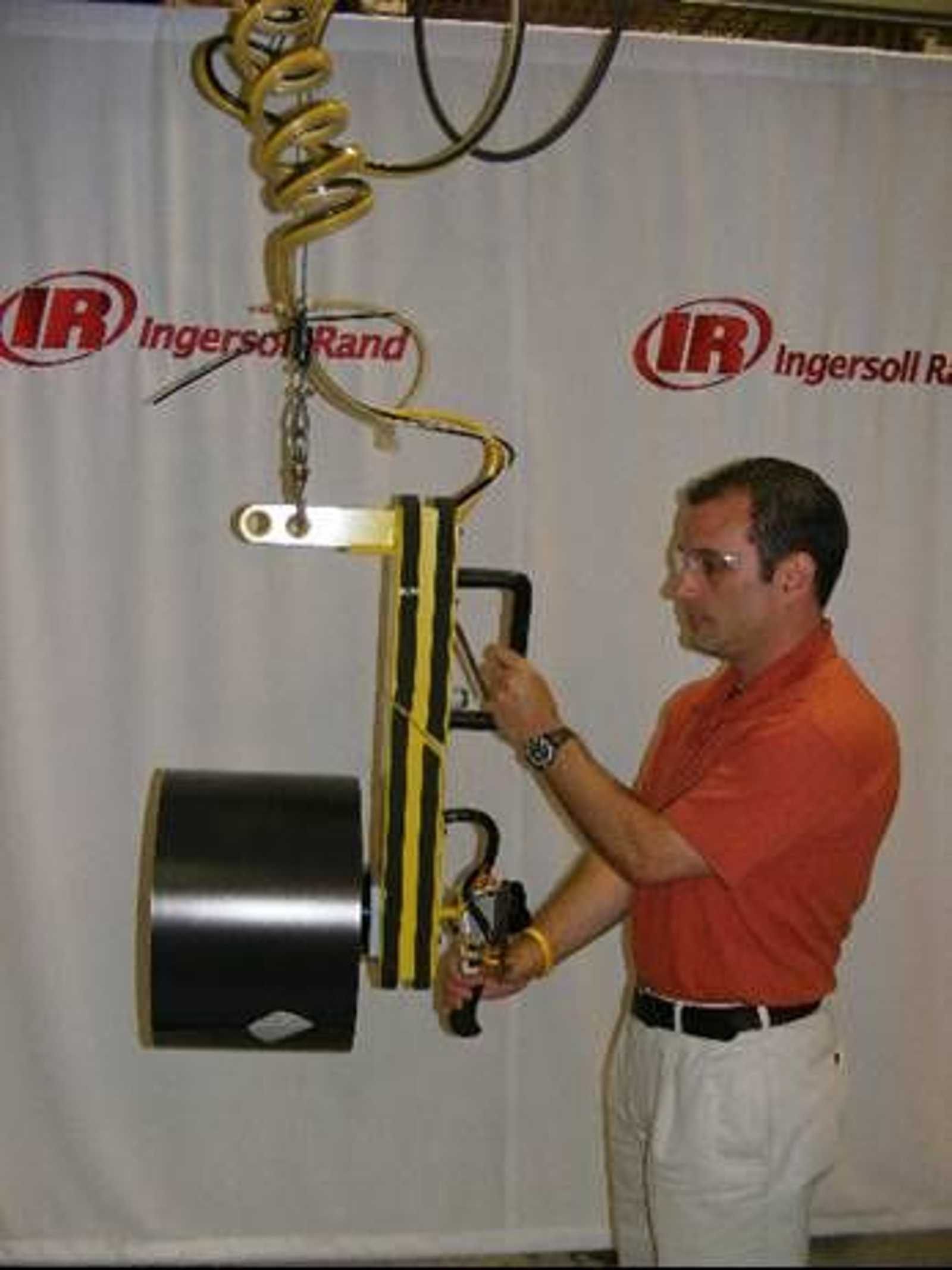

ZIM Steel Roll HVAC

The Rotary Action Handlers perform virtually effortless horizontal-to-vertical product orientation (90 degrees) of loads up to 300 lb. (136 kg). The versatility of this roll handling equipment is enhanced by a variety of end effector part grippers, including a non-destructive rubber gripper nose that eliminates damage to core material.

Request a QuoteRequest Service, Parts, or Support

Safety:

  • Once the probe is fully engaged, a safety interlock (indicated by an air gauge and a green signal) prevents the accidental release of the load.

Ergonomic:

  • The roll lifting equipment provides effortless 90-degree manual rotation of rolls up to 300 lb. (136 kg).

Versatility:

  • The roll lift’s non-destructive rubber band style and pin style noses engage the ID of the core.
  • Integrated up/down controls work seamlessly with Ingersoll Rand Pneumatic Balancers
  • Lightweight aluminum body for rolls up to 100 lb. (45.4 kg), 12 in. (305 mm) long, and 30 in. (762 mm) diameter
  • Rugged steel body for rolls up to 300 lb. (136.1 kg), 24 in. (310 mm) long, and 42 in. (1067 mm) diameter
  • Additional options available upon request include stepped noses for multiple cores, “V” groove for pin cart applications, special paint, spindle end locator, and adjustable bail.
