720 Series Arm Systems

support structures 720 arm lsupport structures 720 TopMount lZIM 720 ARM DIMENSIONS
support structures 720 arm l

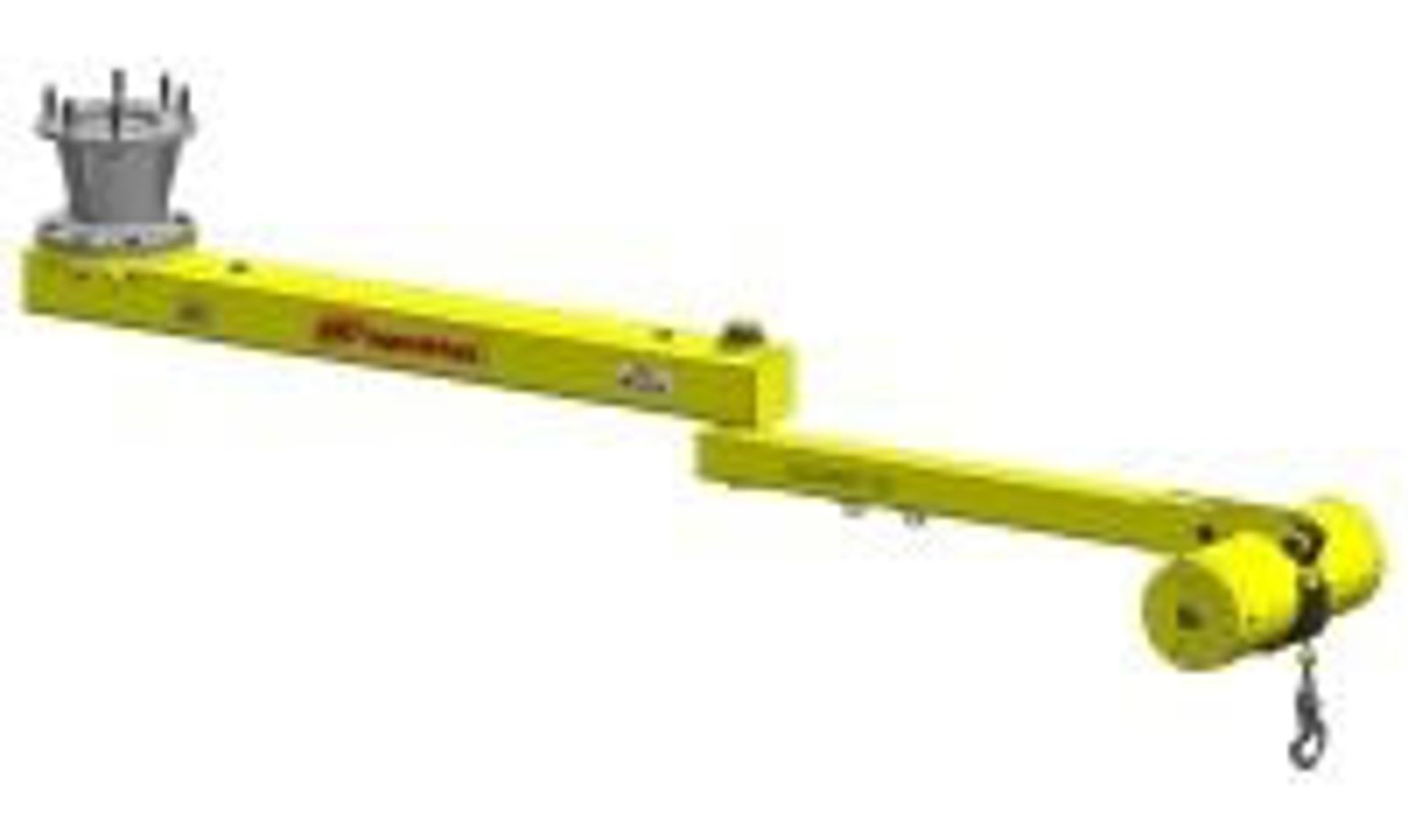

support structures 720 TopMount l

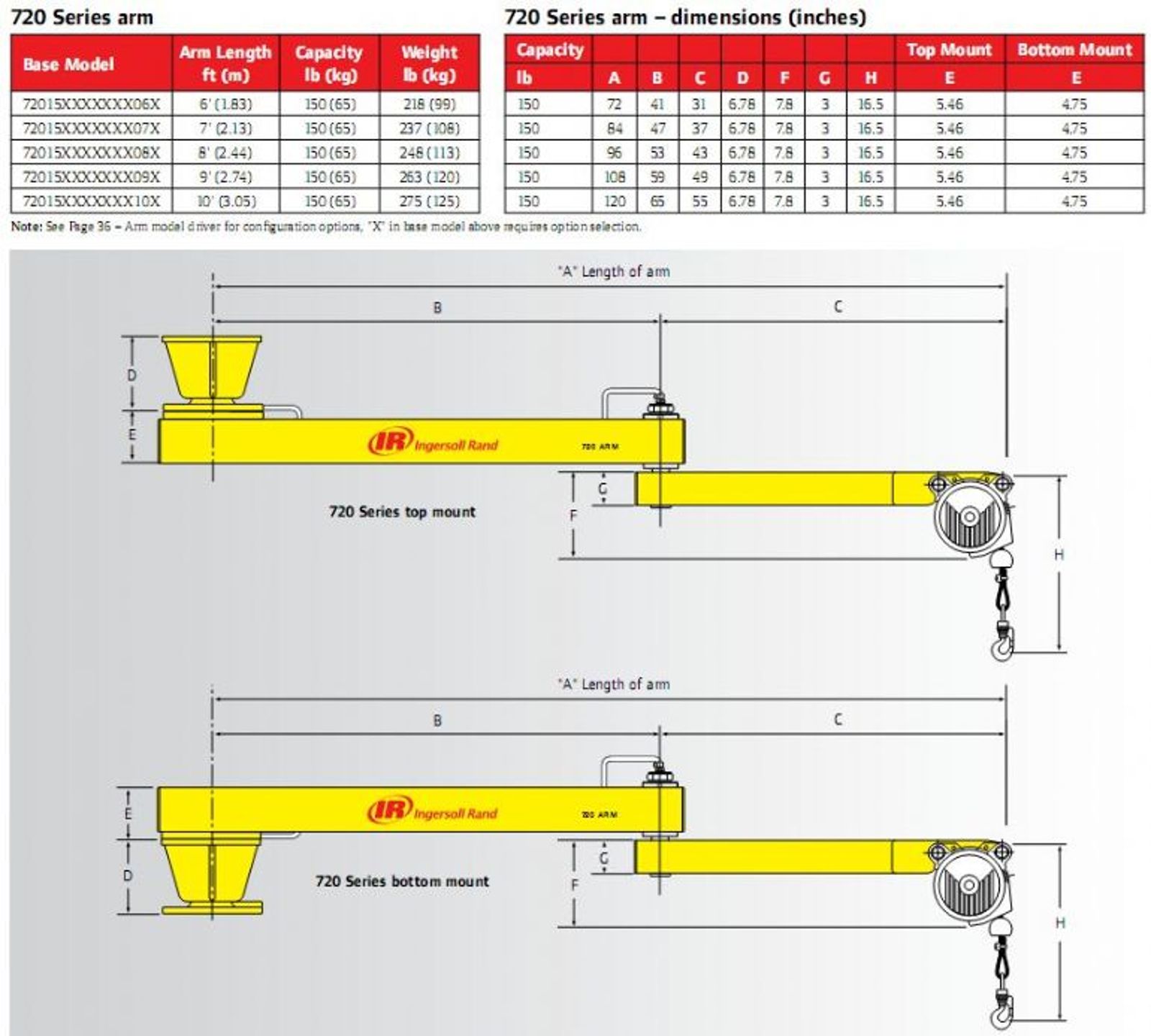

ZIM 720 ARM DIMENSIONS

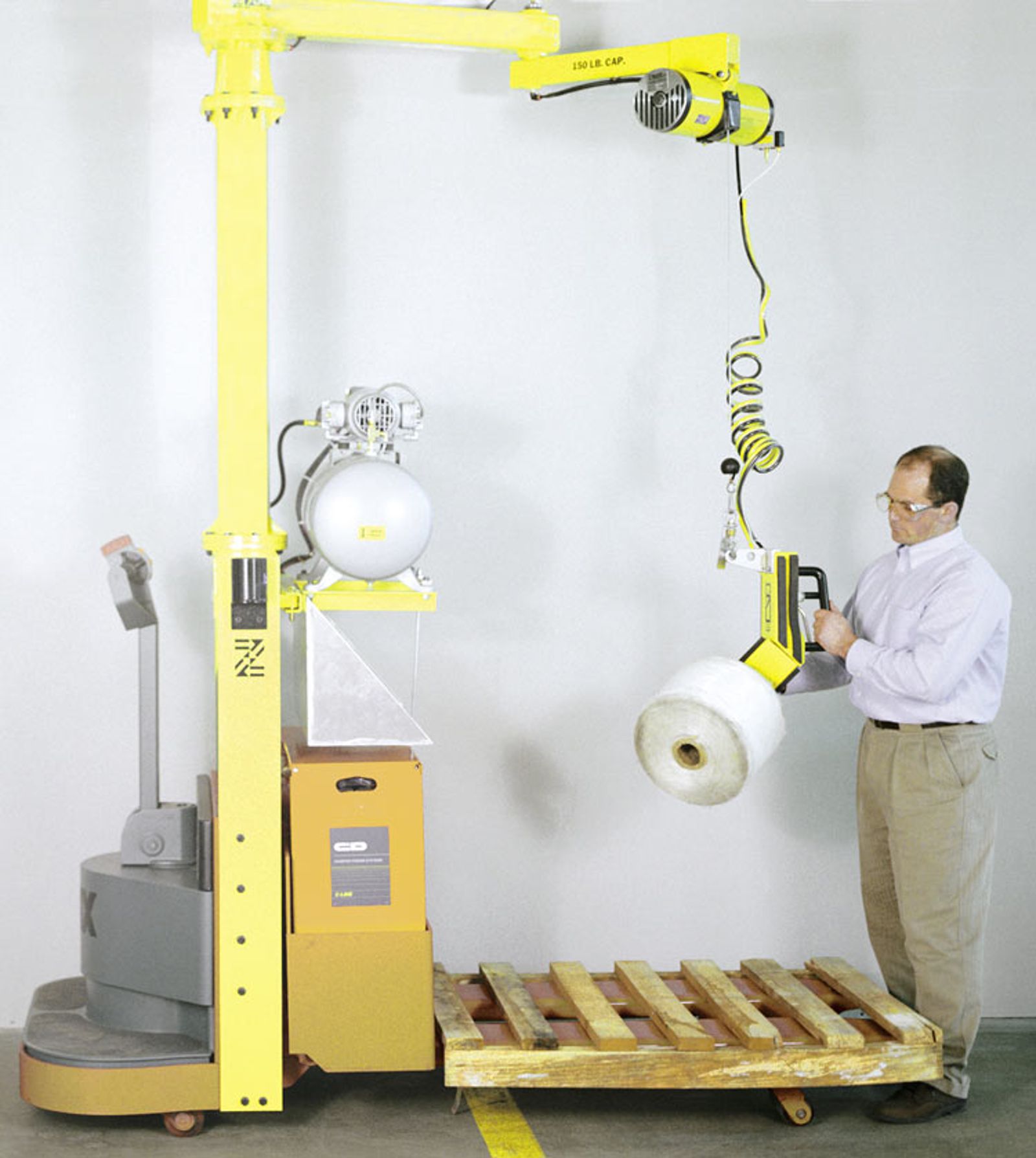

Ideal for lightweight parts that require the operator to work directly under the arm, the 720 arm incorporates an over-under boom design with two linkages and two pivots. One pivot is between the mounting point and main boom and the other is between the two booms. Each pivot can rotate 360 degrees, which allows the operator full coverage of the work area. The balancer is mounted at the end of the arm. Customer will need to specify balancer type, mounting option, carriage type, arm length and balancer controls when ordering.

Request a QuoteRequest Service, Parts, or Support

Articulating boom:

  • Over-under boom design with single pivot point for 360° articulation

Integral balancer:

  • Integrated 150 lb (65 kg) balancer

Flexible mounting:

  • Carriage mounted for overhead rail transfer applications or column mounted for stationary applications

Flexible reach:

  • Arm lengths of 6 ft (1.83 m), 7 ft (2.13 m), 8 ft (2.44 m), 9 ft (2.74 m), and 10 ft (3.05 m) available
