CUSTOMER LOCATION: SAKHALIN, RUSSIA

SCENARIO: CUSTOMER NEEDED PACKAGE OF WINCHES. THE CUSTOMIZATION NEEDED:

SOLUTION: WINCHES INCLUDING 250KG UP TO 5 TONS + MANRIDER WINCHES

Use of hydraulic units, which is Ingersoll Rand’s first choice in cold weather environments
Designed with special steel to handle the harsh weather conditions in the North Pacific Ocean

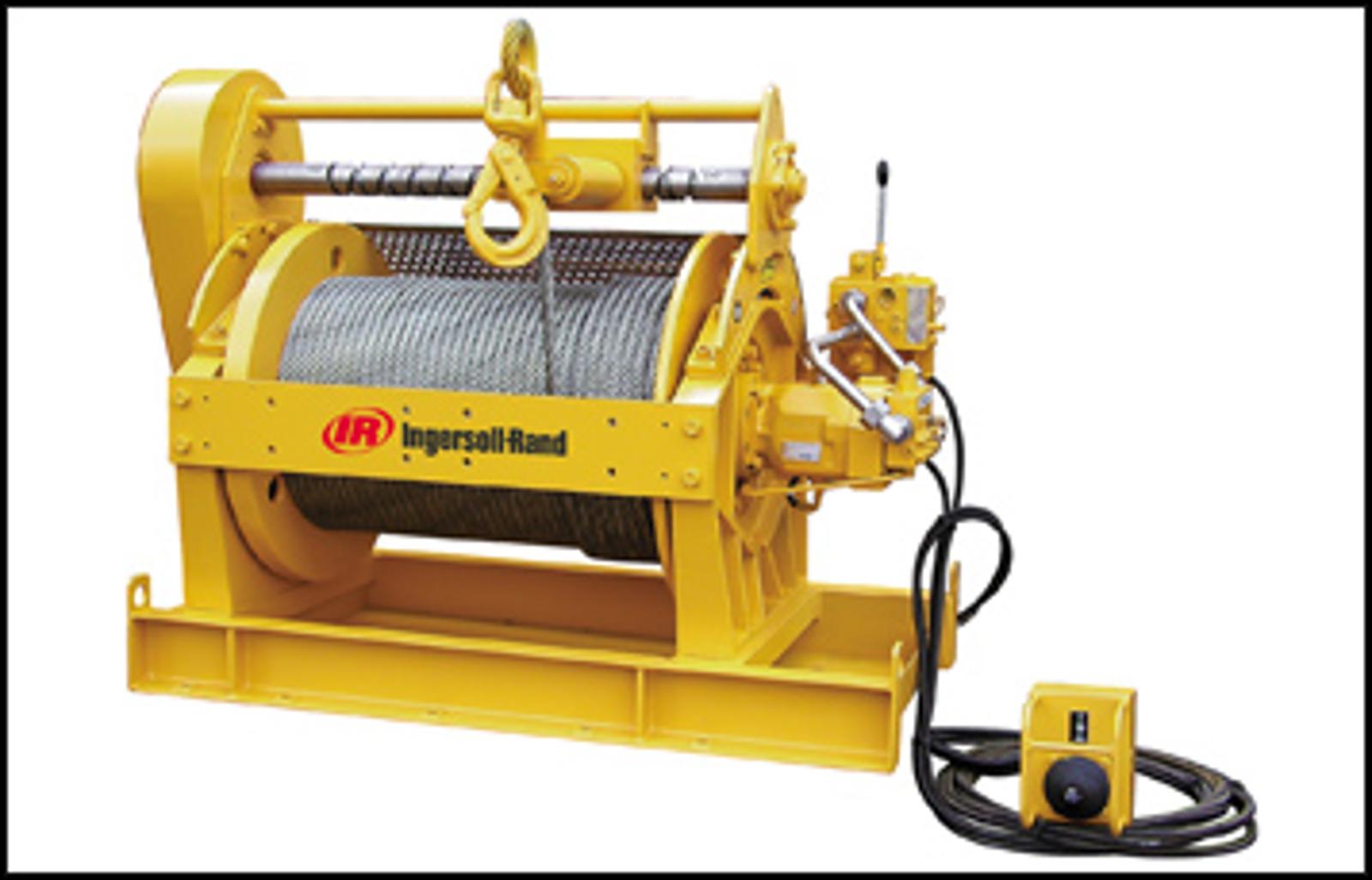

All 5-ton winches were supplied with a spooling device to keep the wire rope correctly wound, thereby improving operation safety, integrity and durability of the cable
Where accessibility was limited, the units had the addition of remote control joysticks.

FEATURES OF A MANRIDER WINCH

STANDARD	SPECIAL
Driving mechanism classification 1Bm Hydraulic Vane Motor High efficiency planetary gearing inside the drum for reduced footprint and improved protection Internal automatic multidisc brake Remote and lever control Main hydraulic emergency stop on the winch Overload protection device by hydraulic relief valve (Kick down) Emergency lifting or lowering device with hydro-pneumatic accumulator and a safety block Adjustable upper & lower limit switches	Design temperature TD –20°C Grooved drum (for wire rope Æ10 mm) External automatic drum band brake spring applied, pressure released ·lack wire detector Assisting spooling device for better rope winding Stainless steel enclosure Sandblasting and offshore paint 290µ 3.1b material traceability certificates according to DIN 50049 (EN 10204) for load bearing parts DNV Type approved (other third party witness test available)

STANDARD

SPECIAL

Driving mechanism classification 1Bm
Hydraulic Vane Motor
High efficiency planetary gearing inside the drum for reduced footprint and improved protection
Internal automatic multidisc brake
Remote and lever control
Main hydraulic emergency stop on the winch
Overload protection device by hydraulic relief valve (Kick down)
Emergency lifting or lowering device with hydro-pneumatic accumulator and a safety block
Adjustable upper & lower limit switches

Design temperature TD –20°C
Grooved drum (for wire rope Æ10 mm)
External automatic drum band brake spring applied, pressure released
·lack wire detector
Assisting spooling device for better rope winding
Stainless steel enclosure
Sandblasting and offshore paint 290µ
3.1b material traceability certificates according to DIN 50049 (EN 10204) for load bearing parts
DNV Type approved (other third party witness test available)

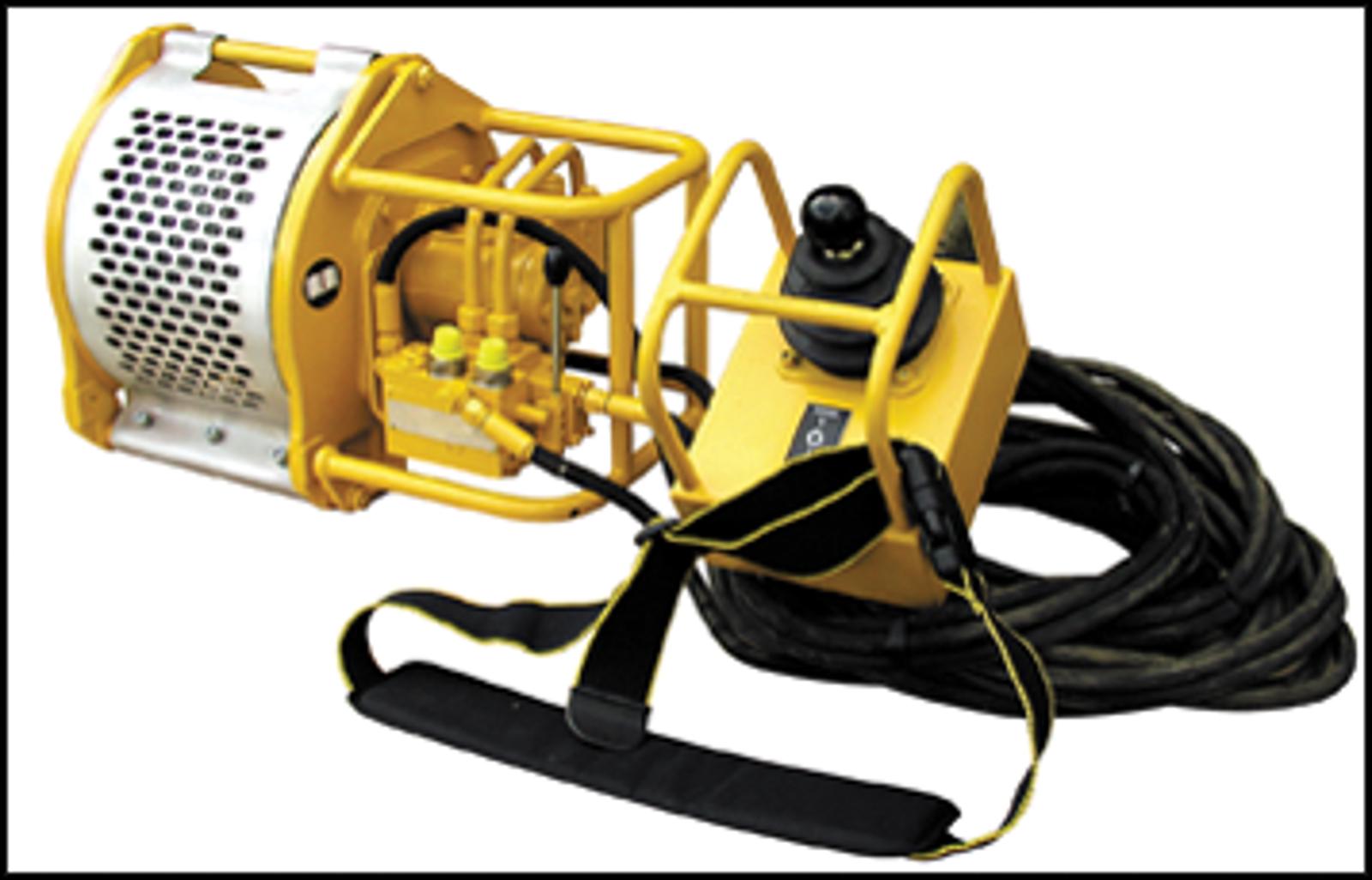

STANDARD	SPECIAL
Light weight and compact design .Easy to carry Robust steel construction - 5:1 design factor for lifting Automatic fail safe disc brake (no adjustment required) High efficiency planetary gear box Hydraulic joystick remote control Low noise level, quiet operation	Long drum version Lever control on winch Low temperature design (-20°C) Drum Guard Marine paint finish 150µ Offshore paint finish 290µ including sandblasting Customer Witness Test Third Party Witness Test
