CUSTOMER LOCATION: OFFSHORE

SCENARIO: CUSTOMER REQUIRED THE REMOVAL OF EXISTING PIPELINE VALVES AND THE INSTALLATION OF NEW REPLACEMENT UNITS. THE CUSTOMIZATION NEEDED TO INCLUDE:

  1. Zone 1 ATEX specifications
  2. Cross-hauling capability of 5 degrees or more
  3. Proven track record of operating successfully in an offshore environment
pipeline replacement

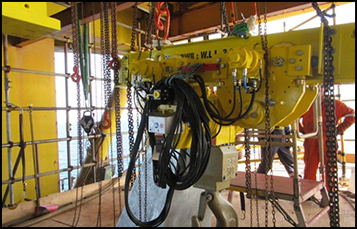

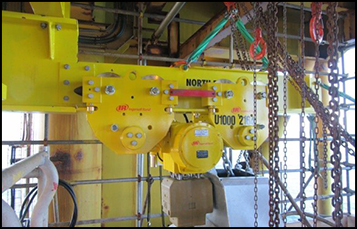

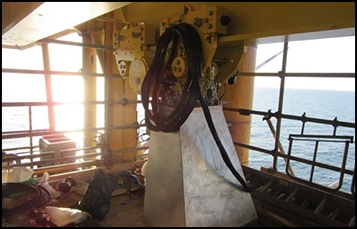

SOLUTION: 50T TROLLEY MOUNTED, PNEUMATIC CHAIN HOISTS



  • Ability to cross-haul up to 20 degrees
  • Articulation of hoist body within trolley
  • QZ offshore paint system
  • Spark resistant package (T1 Zone 1 ATEX)
  • Bronze coated bottom hook assembly
  • Solid bronze trolley wheels
  • Bottom clevis replaced standard hook
  • Client witness test to prove capability
  • Trolley flange adjustment for specific customer need
pipeline replacement

STANDARD FEATURES OF THE 50T PNEUMATIC CHAIN HOISTS INCLUDE:

  • 15 meters heigh of lift
  • Design factor 5:1 - FEM classification 1Bm
  • Automatic fail safe disc brake - Hoist and trolley
  • Gear type air motor on hoist and multi-vane air motor on trolley
  • Integrated overload protection and main power emergency stop valve
  • Fully enclosed gear box
  • Top and bottom limit switches
  • Corrosion resistant load chain
  • 10 meter of control (progressive remote pendant control with e-stop)
  • Articulated trolley allowing side pulling operations up to 20° (hoist only)
  • Galvanized chain container (capacity 15m height of lift)
  • CE marking
  • Trolley flange adjustment for beam width of 250 mm before shipment
pipeline replacement
