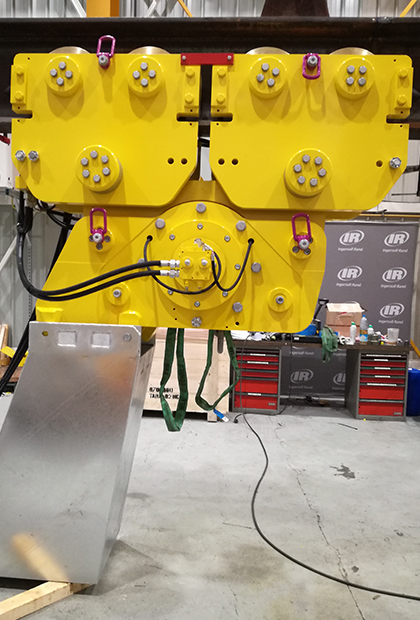

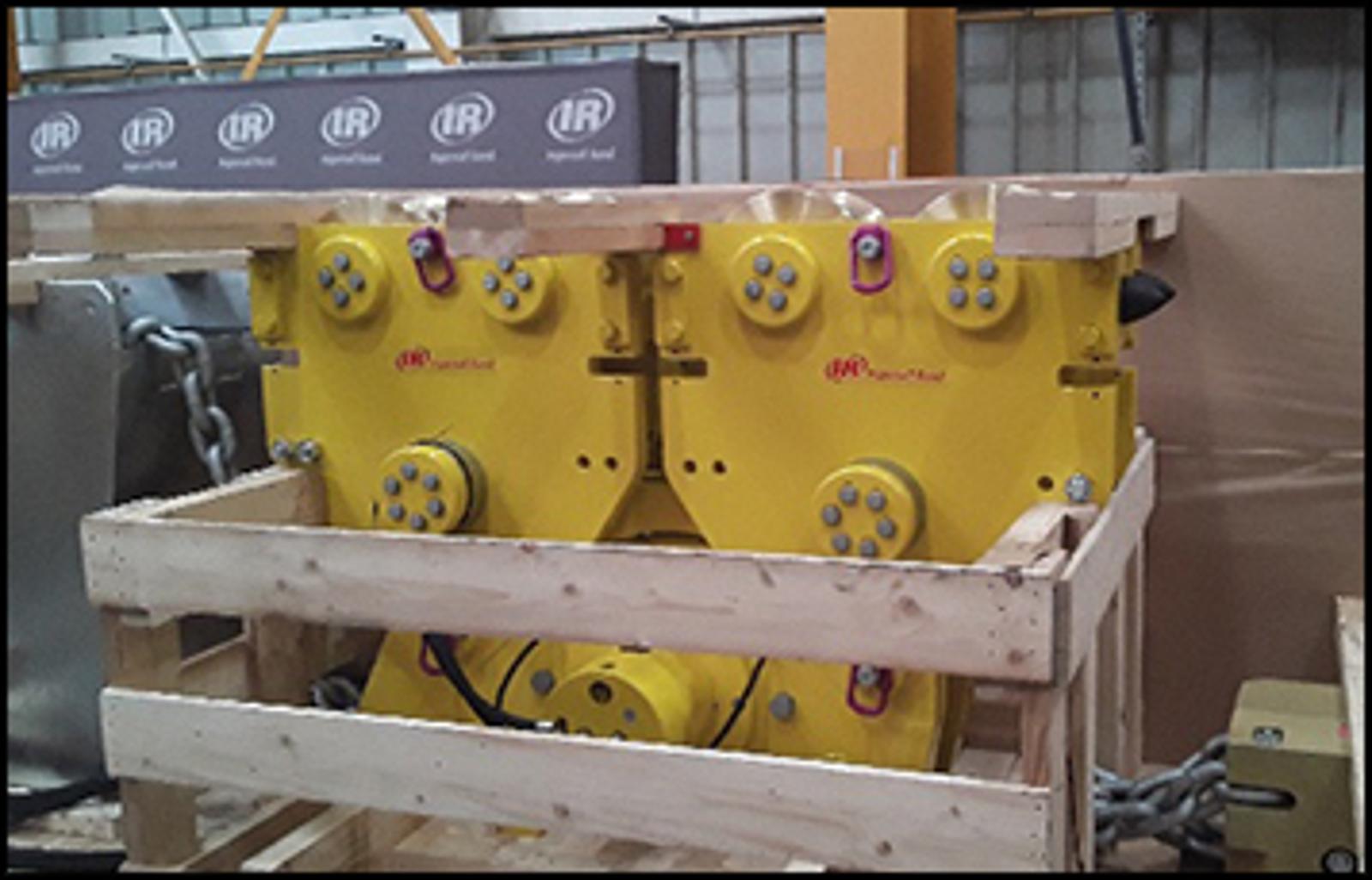

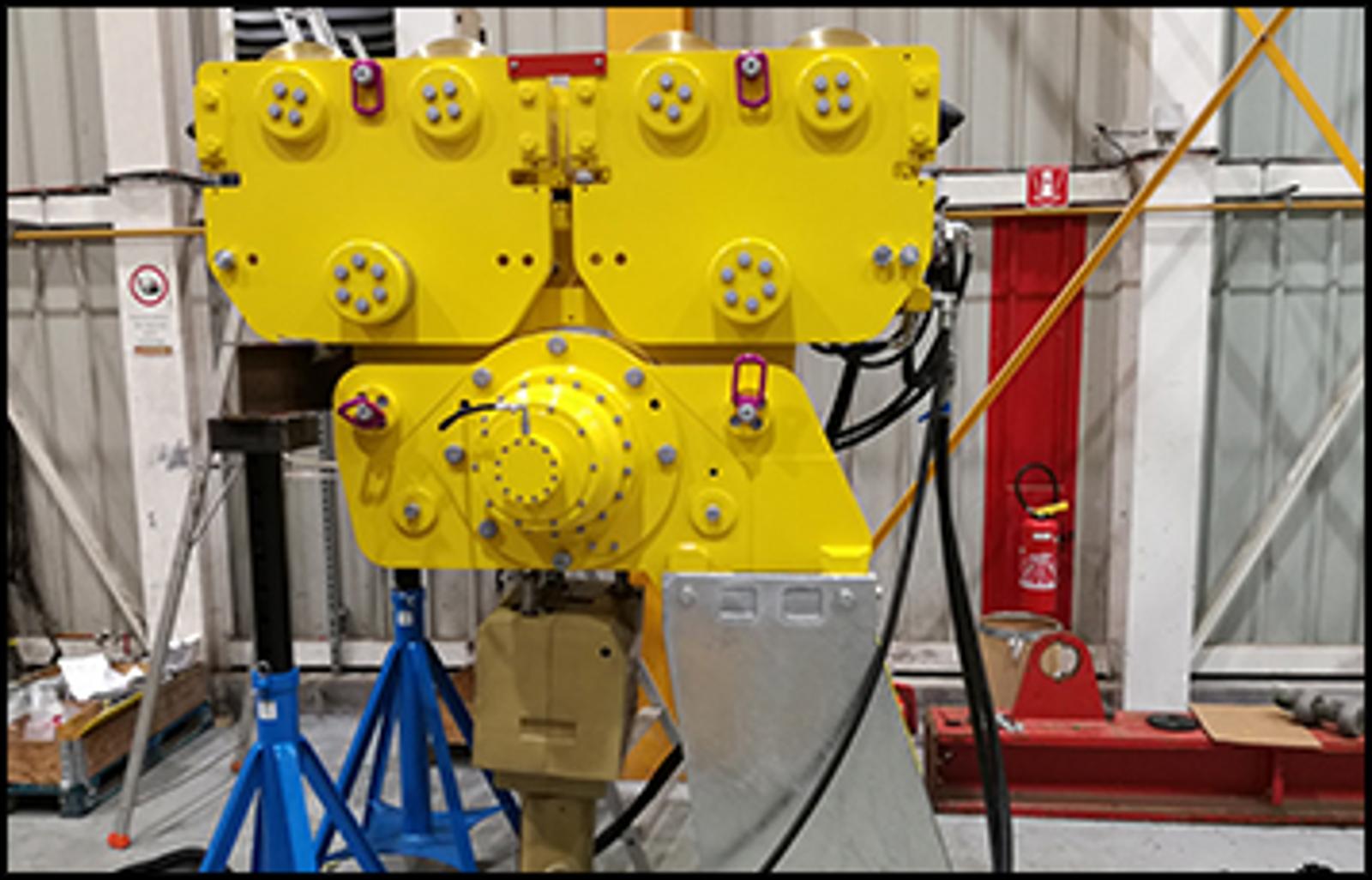

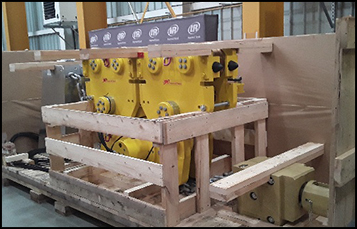

CASE STUDY: COMPACT BOP HANDLING SYSTEM

CUSTOMER LOCATION: SHIPYARD IN CHINA

SCENARIO: CUSTOMER IN CHINA NEEDED A CUSTOM BOP HANDLING SYSTEM WITH LENGTH & HEIGHT REQUIREMENTS TO MEET THE FOLLOWING:

1. Reduce length of standard unit by 1.3M
2. Maintain performance of a standard, original BOP system
3. Endure harsh conditions

SOLUTION: CUSTOM DESIGNED BOP HANDLING SYSTEM

• Total system length of 2.0 meters instead of 3.3 meters from the standard unit.
• Speed and consumption equal of the standard 150T hoisting system.
• Trolleys can fit beams width of 200 mm up to 356 mm.
• Ex-classification: Ex II 2 GD IIA T3 (X) / Ex II 3 GD IIB T3 (X)
• Designed as per FEM, ABS, DNV, CE, ATEX requirements.
