CUSTOMER LOCATION: RUSSIA
SCENARIO: CUSTOMER REQUIRED A COLD WEATHER BOP HANDLING SYSTEM THE CUSTOMIZATION NEEDED TO INCLUDE:
- Safely lift a BOP stack on two land rigs
- Ability to function in -45 degree temperatures
- Zone 1 ATEX specifications
How Can We Help?
Whether you are looking for a quote, need technical support or customer service, or want to schedule a demo, we are here to assist you.

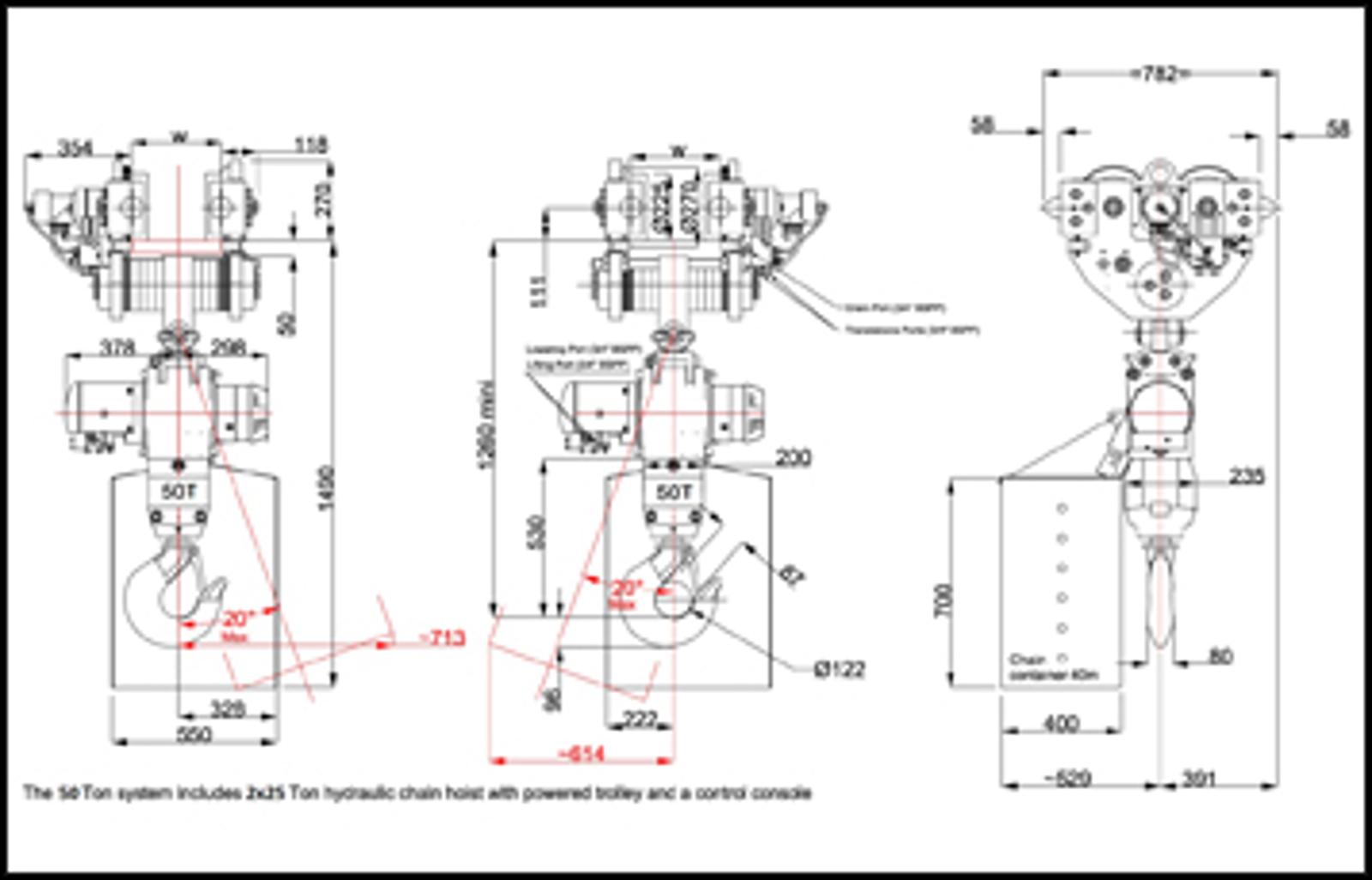

SOLUTION: 50T BOP HANDLING SYSTEM. OUR ENGINEERING TEAM DESIGNED AND PROCURED COLD WEATHER LOAD BEARING MATERIALS CERTIFIED TO WORK AT -45°C. TO ACCOMODATE THE LOW TEMPERATURES THE TEAM ALSO RECOMMENDED A HYDRAULIC OPERATING SYSTEM AS IT FUNCTIONS MORE RELIABLY IN HARSH CONDITIONS COMPARED TO PNEUMATIC POWERED ALTERNATIVES.
- Designed for working ambient temperature of -45°C and -60°C under storage.
- CE and ATEX for Zone 1 marking.
- Festooning system for a travelling length of 8 m.
- Mirror image: The system was supplied with 2 identical units so that the trolley and hoist motors are on the same side
- EAC requirement: Certification mark to indicate products that conform to all technical regulations of the Eurasian Customs Union

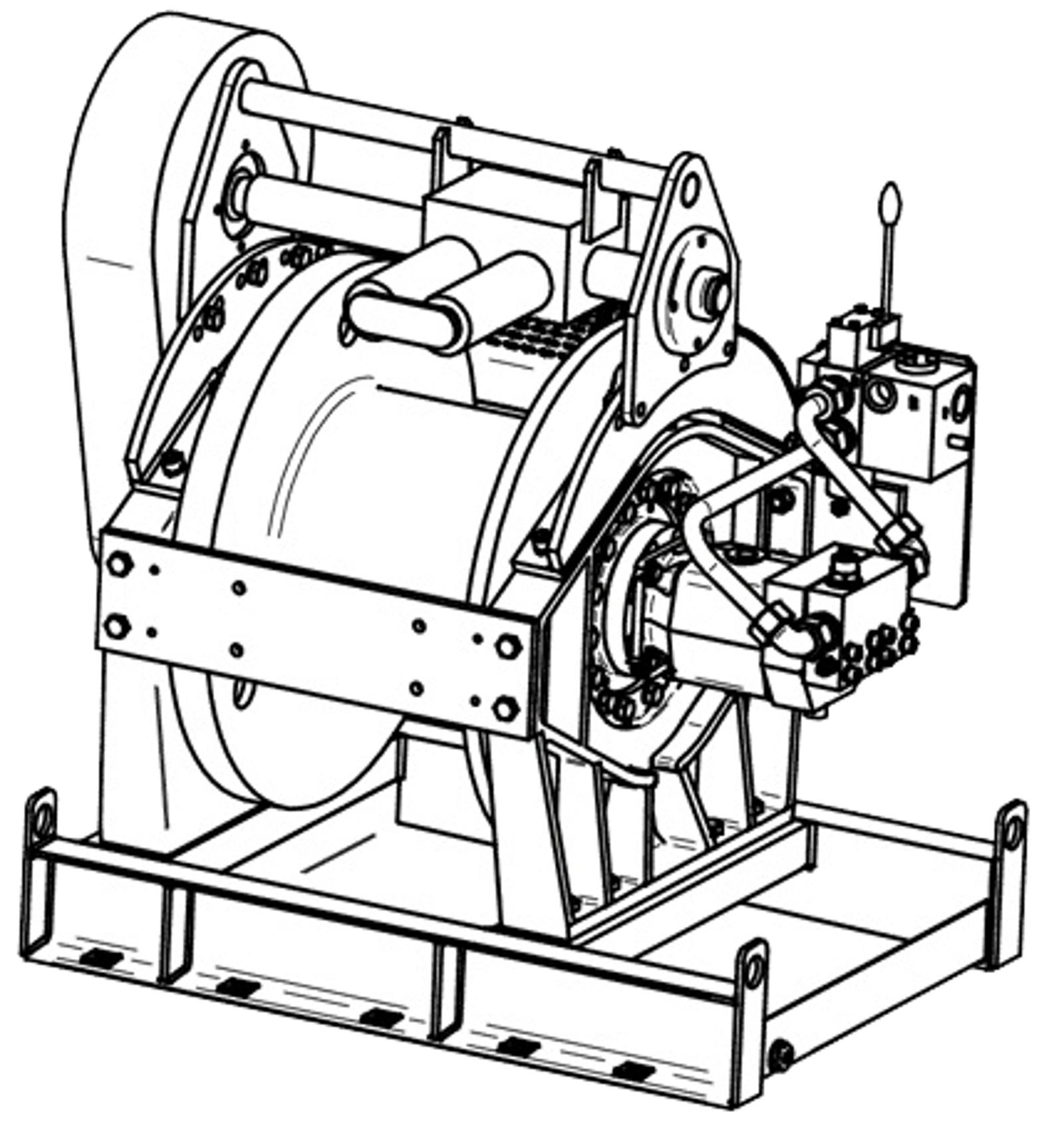

Concept

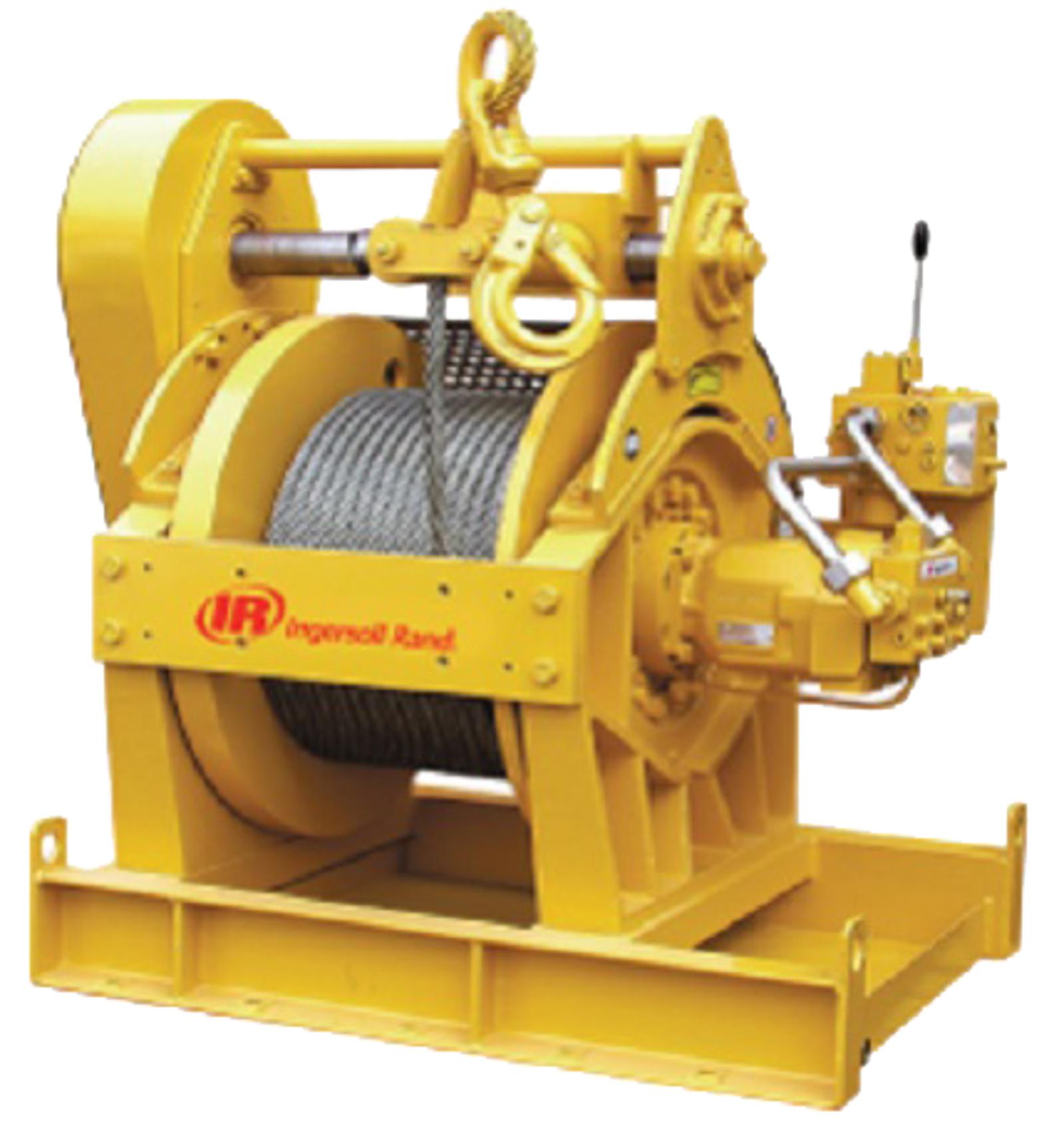

Actual Unit
Do You Need a Customized BOP Handling System for Your Cold Weather Operations?
Let Ingersoll Rand customize pulling and lifting equipment like the 50T BOP handling system for you today.
