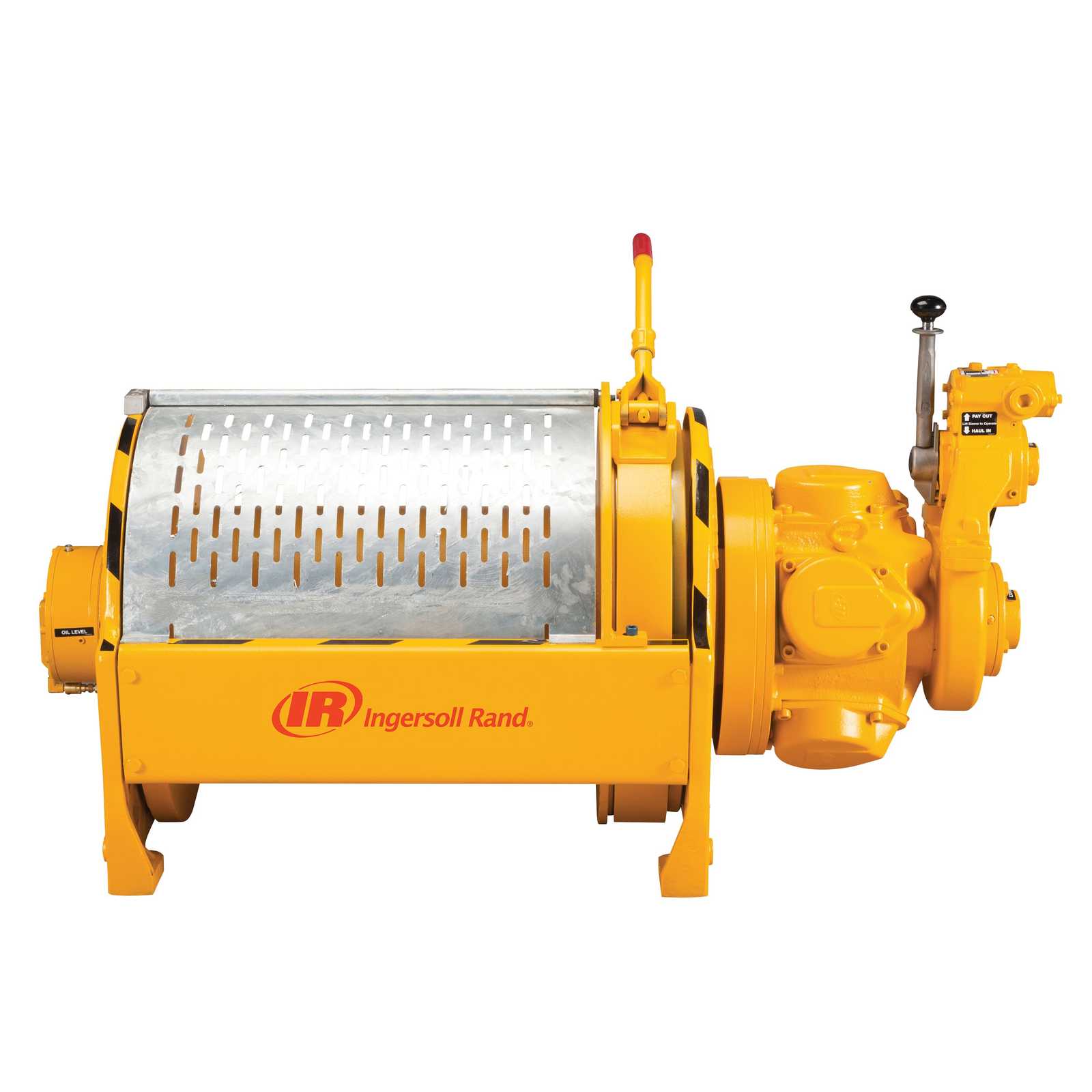

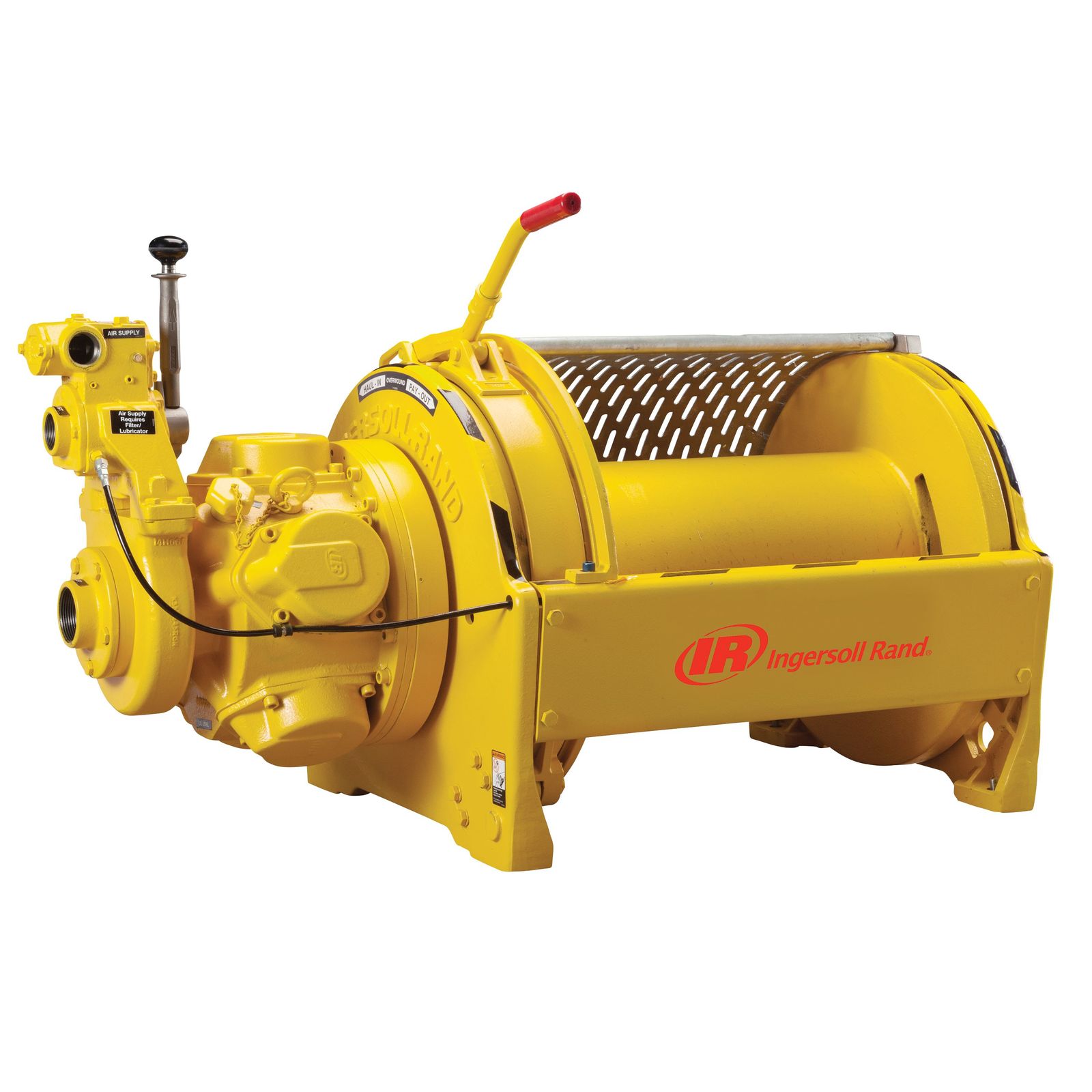

Third Generation™ Dual Purpose (Personnel & Utility) Air Winches

Ingersoll Rand Third Generation Dual Purpose winches maximize the use of your equipment by combining time-tested, durability with enhanced safety features for lifting people. Third Generation Dual Purpose winches meet strict regulations for lifting people or platforms while still performing well for utility purposes. Whether your application is offshore, onshore or marine, when you need to manage costs and keep people safe, Third Generation Dual Purpose winches get the job done.

Durability:

  • Rugged cast iron and steel construction for extremely long life
  • 18:1 drum to wire rope diameter minimizes unnecessary wear and increases the life of wire rope

Safety:

  • Drum guard included for additional protection
  • Lift-to-Shift variable speed lever provides precise control and built-in safety
  • Gearbox-in-drum design reduces size and helps the winch fit in compact applications

Performance:

  • Radial piston air motor provides reliable power with adjustable speed for any application
  • Standard drum brake or optional auto disc or auto drum brake provides superior stopping power
  • Self-cleaning control valve improves flow and performance

Model

Type

Rated Capacity at Top Layer kg (lb)

Lifting Speed at Top Layer m/min (fpm)

Air Consumption with Rated Load m³/min (ft³/min)

Air Volume Needed to Move Rated Load at Top Layer 3 m (10 ft)

Sound Level as per EN 14492-1 dB(A)

Drum Capacity(1) Rope Length m (ft)

Drum Capacity(1) Rope Diameter mm (in)

Net Weight kg (lb)

FA2BMR24MK1G

Personnel Lifting

920 (2,035)

62 (202)

10 (350)

0.5 (17.3)

87

392 (1287)

13 (1/2)

357 (786)

FA2.5AMR24MK1G

Personnel Lifting

1,420 (3,125)

58 (191)

20 (700)

1.0 (36.6)

87

392 (1287)

13 (1/2)

411 (905)

FA5AMR24MK1G

Personnel Lifting

2,280 (5,035)

41 (136)

20(700)

1.5 (51.5)

89

366 (1200)

20 (3/4)

837 (1842)

FA2BMR24MK1G

Utility Lifting

1,450 (3,200)

37 (122)

10 (350)

0.8 (28.7)

87

392 (1287)

13 (1/2)

357 (786)

FA2.5AMR24MK1G

Utility Lifting

1,860 (4,100)

43 (141)

20 (700)

1.4 (49.6)

87

392 (1287)

13 (1/2)

411 (905)

FA5AMR24MK1G

Utility Lifting

3,600 (8,000)

13 (43)

20 (700)

4.6 (162.8)

89

366 (1200)

20 (3/4)

837 (1842)

Personnel Lifting ratings at 8:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

Utility Lifting ratings at 5:1 design factor and performance at 6.3 bar (90 psi) at air inlet when winch is operating.

(1) Wire rope is tightly wound with no freeboard.
